The new JUSTOP Pro range, are ATX standard power supplies which are an excellent power supply for system integrators who are looking to build systems or builders looking for a power supply that brings quality and value.
Key Features JUSTOP Series - 70%+ efficiency and ATX 12v rail complaint to ensure compatibility with most CPU's and Motherboards
Compatibility - The new series power supply with 8-pin ATX 12V making it compatibility for all types of Mainboards and CPU’s

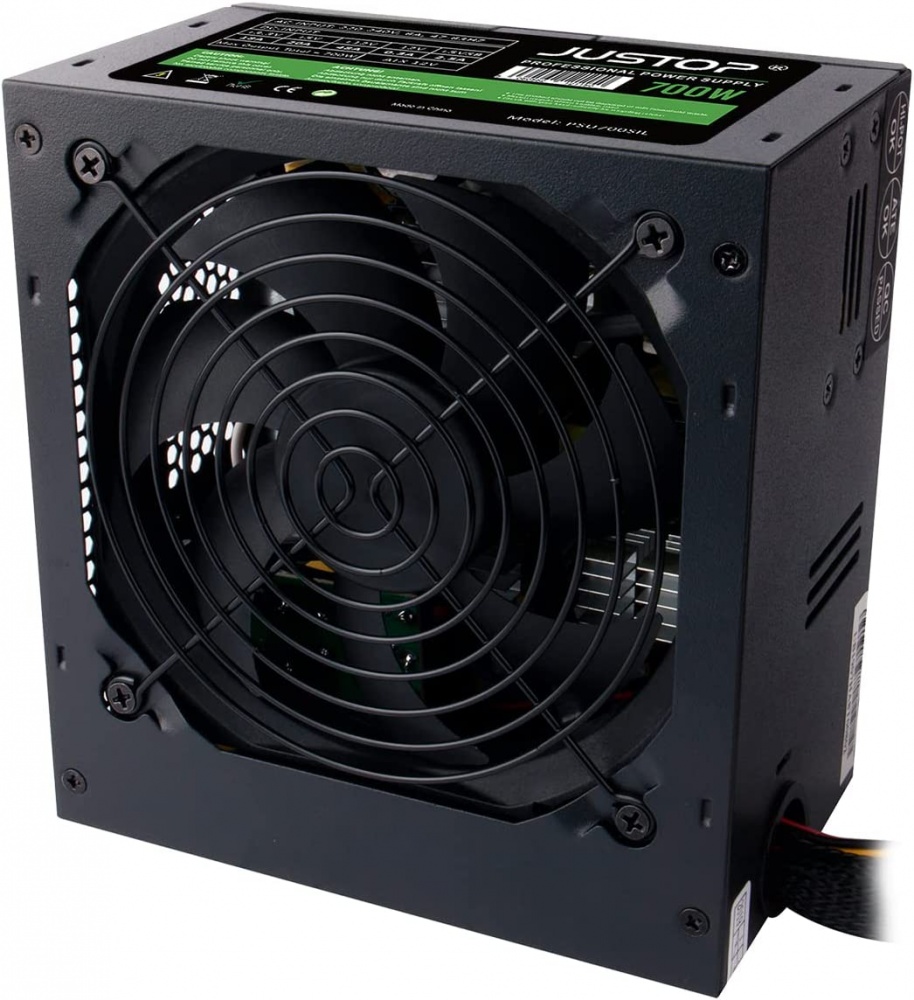

Cooling Fan - A 12cm cooling fan enables excellent airflow and a power supply with a lower noise

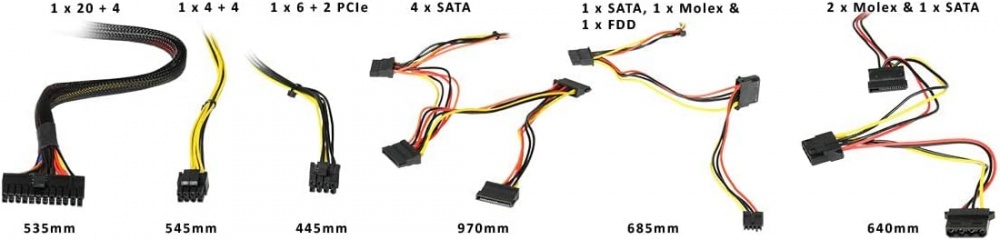

Connectors - The Justop 700W comes with a 20 + 4 pin (535mm), 4 + 4 pin (545mm), 1 x 6 + 2 Pin (445mm), 4 x SATA (970mm), 1 x SATA / 1 x Molex / 1 x FDD (685mm) & 2 x Molex & 1 x SATA (640mm)
Protection - Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP), Over Power Protection (OPP) and Short Circuit Protection (SCP)
Connectors 20+4 Pin Main Connectors: 1
4+4 Pin 12V Connectors: 1
SATA Connectors: 6
4-Pin Molex Connectors: 3
6+2 Pin PCI-e Connectors: 1
Floppy Drive Connectors: 1
Specifications Dimensions: 150mm x 85mm x 140mm (W x H x D)
Input Voltage: 220-240VAC
Input Current: 6A
Input Frequency Range: 47-63HZ
PFC: PPFC
Power Good Signal: 306ms
Hold Up Time: 8ms
Efficiency: 70%
MTBF: 50,000 Hours
Protection: OVP / UVP / OLP / OPP / SCP
Power: 700W
Operation Temperature: 0-40°C
Safety: CE / CCC
Cooling: 120mm Cooling Fan
Noise: 40dBA
