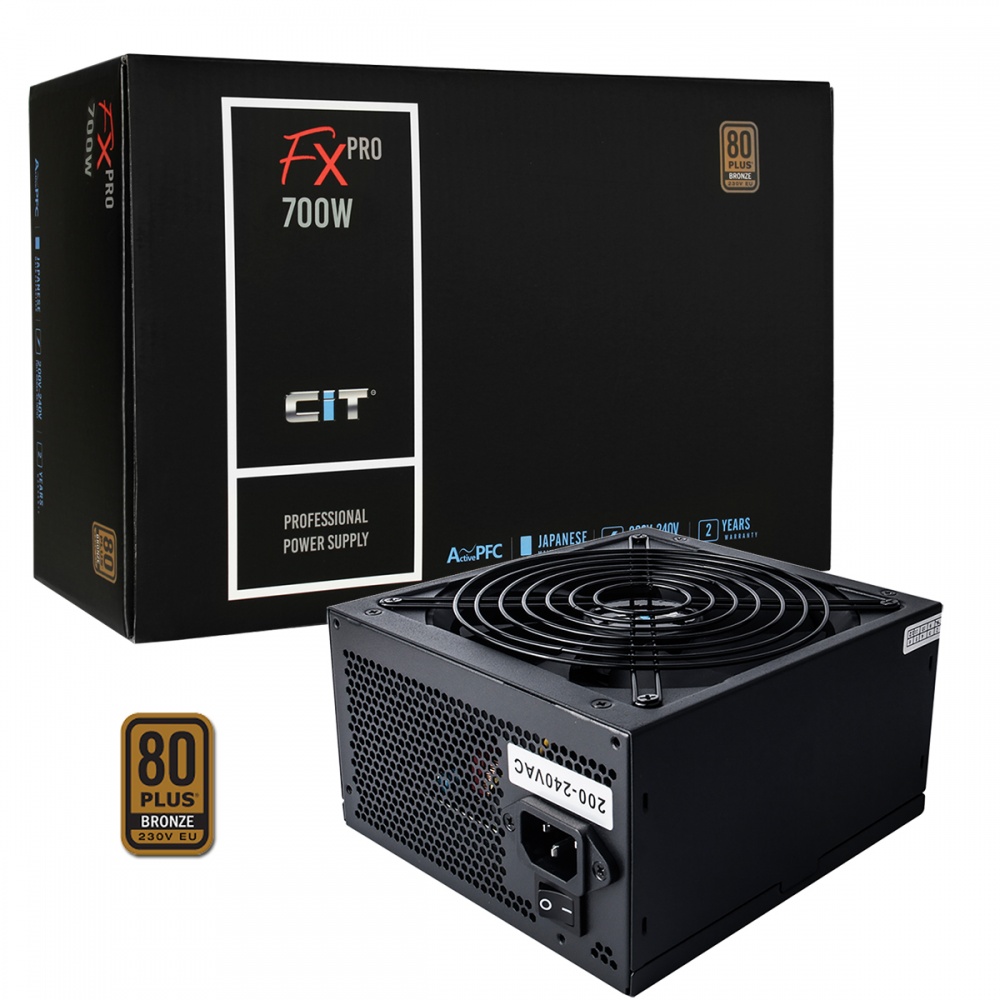

The new powerful CiT 700W ATV Pro is an upgrade from the 700W ATVR, itis an excellent choice for both first-time builders and experiencedbuilders. Our Pro power supply is 80 plus bronze certified, with 85%efficiency or higher under typical loads, ideal for system integrators.A non-modular PSU with flat back cables included, this PSU is great forthose who like the correct balance between cable management and buildflexibility, combining 700W of excellent power with great performance,optimised rail structure allows you to realise a more powerfulperformance from your power supply.
Key Features - 80 Plus Bronze - The ATV Pro achieves 80 Plus Bronzecertification with its 85% at 50% system load.

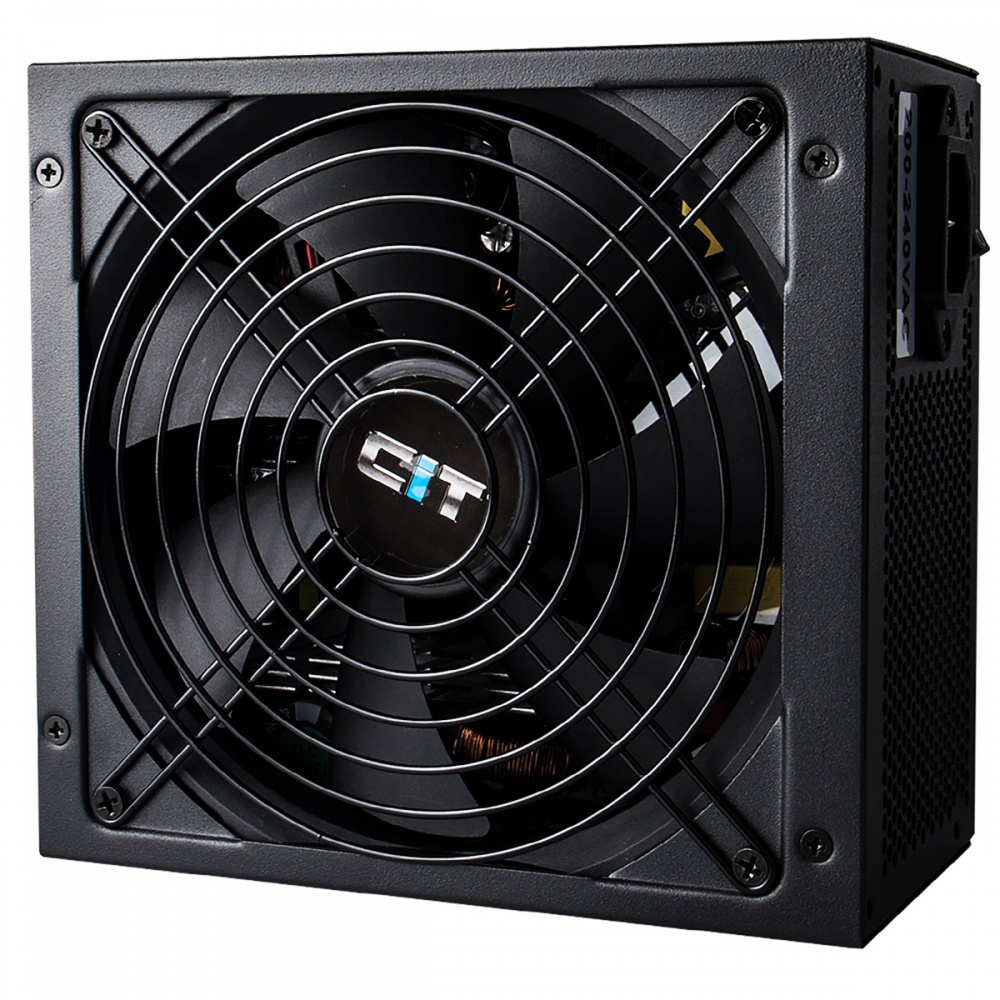

- Excellent Cooling Operation - A 14cm cooling fan forexcellent airflow and heat dissipation.
- Flat Black Cables - With flat black cables included gamerscan easily manage and save space creating a nice-looking gaming set-up.
- Structure - An active PFC ensures small and lightcomponents with great flexibility and control and you are able tooperate in a universal input range for a supreme performance.
- Warranty - The ATV Pro comes with 2 years warranty.
PSUSpecifications | ACINPUT: 200-240VAC 6A 47-63HZ |
DC
Output
Max | +3.3V | +5V | +12V1 | -12V | +5VSB |
| 18A | 20A | 56A | 0.3A | 2.5A |
| 700W |

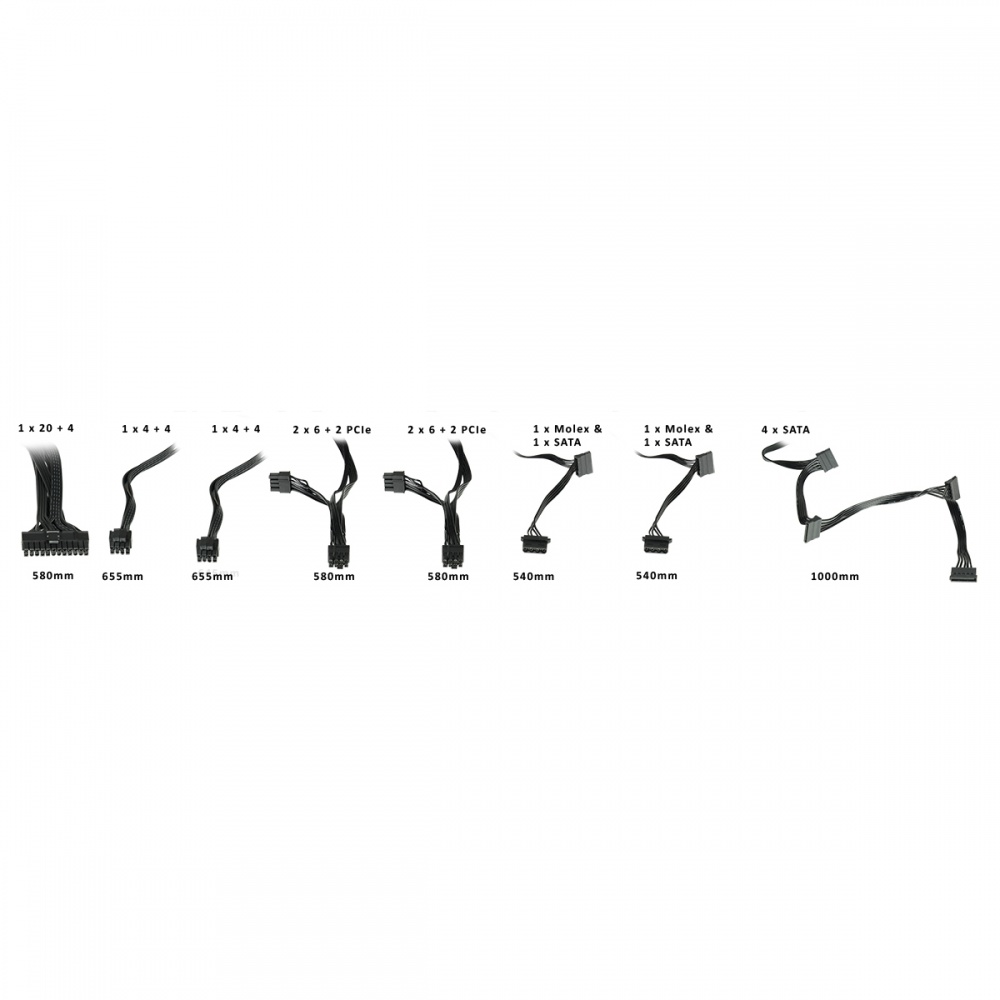

Connectors - 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 6
- 4-Pin Molex Connectors: 2
- 6+2 Pin PCI-e Connectors: 4
Detailed Specifications - Dimensions: 150mm x 85mm x 160mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 6A
- Input Frequency Range: 47-63Hz
- PFC: Active PFC
- Power Good Signal: 300ms
- Hold Up Time: 10ms
- Efficiency: 85%
- MTBF: 50,000 Hours
- Protection: OVP / UVP / OLP / OPP / SCP
- Power: 700W
- Operation Temperature: 0-40°C
- Safety: CE / CCC
- Cooling: 14cm Cooling Fan
- Noise: 40dBA
- 80 Plus Certified: Yes - 80 Plus Bronze
