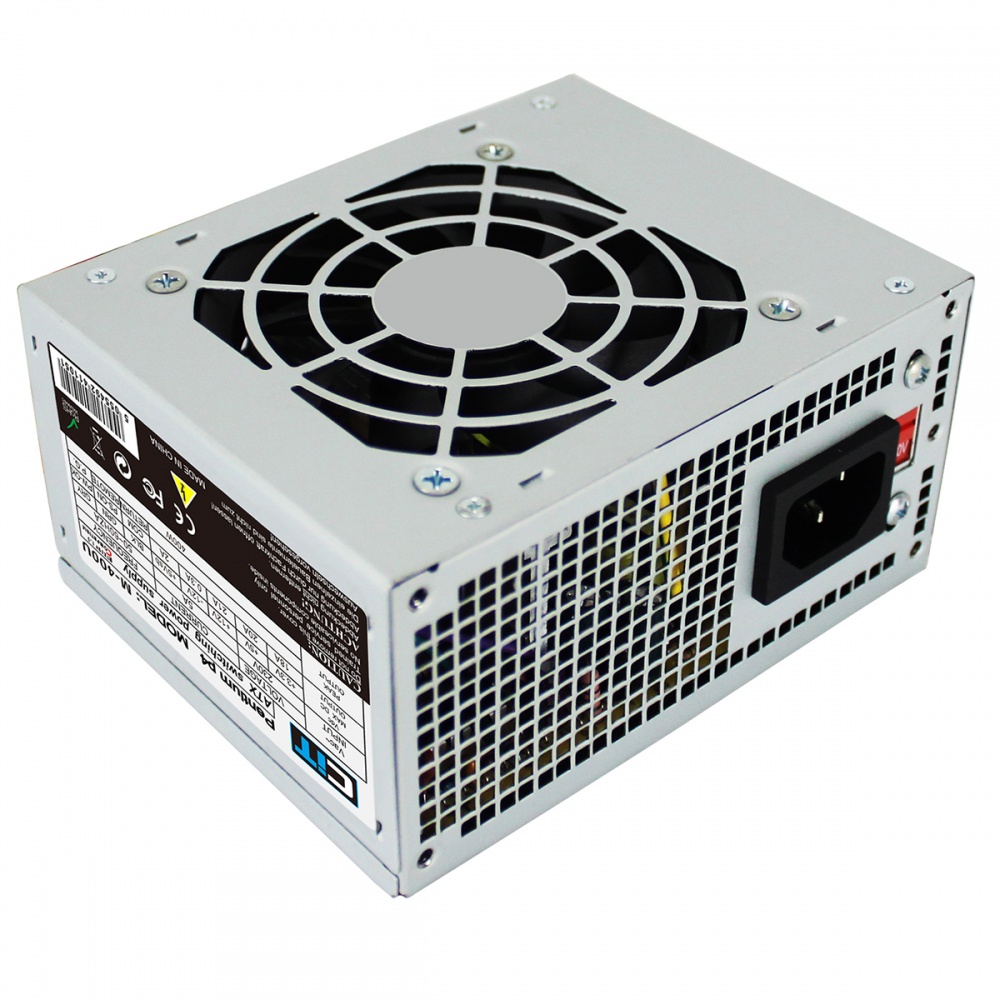

CIT 400W Micro ATX PSU Power Supply M-400U

NEW
CIT 400W Micro ATX PSU Power Supply M-400U
  Zoom
CIT 400W Micro ATX PSU Power Supply M-400UCIT 400W Micro ATX PSU Power Supply M-400UCIT 400W Micro ATX PSU Power Supply M-400U
Our Price:  £18.05
(Inc. 20% VAT)

Availability:



In stock

+


CIT

Key Features
  • Small factor PSU
  • Silent PSU with Temperature Control Fan
  • Complies with Intel ATX12V 2.31VER
  • Fan Speed Control Function Inside
  • Passive PFC (Power Factor Correction)
  • Low noise with intelligent-thermal fan control technology
  • ATX 12V Compliant for all kinds of CPU and mainboard
  • MTBF 50,000 Hours @ 25 degrees C


PSU Specifications


AC INPUT: 230 VAC 5A 50-60Hz

DC Output:
+3.3V    +5V    +12V1    -12V    +5VSB
18A       20A      21A       0.3A    2A

Max: 300W


Connectors
  • 20+4 Pin Main Connectors: 1
  • 4-Pin 12V Connectors: 1
  • SATA Connectors: 2
  • 4-Pin Molex Connectors: 4
  • Floppy Drive Connectors:1


Detailed Specifications
  • Dimensions: 125mm x 65mm x 100mm (W x H x D)
  • Input Voltage: 230 VAC
  • Input Current: 5A
  • Input Frequency Range: 50-60Hz
  • PFC: Yes - Passive Power Factor Control
  • Power Good Signal: 150-450 ms
  • Hold Up Time: 1ms-40ms
  • Efficiency: 75%
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP/ OPP
  • Power: 400W
  • Operation Temperature: 45°C
  • Safety: CE / ROHS
  • Cooling: 80mm fan
  • Noise: < 17 dBA

Model:  1005094
Bar Code:  5055492411051
Part Number:  M-400U
Brand:  CIT
80 Plus Rating:  None
Wattage:  400 W
PSU Form Factor:  Micro ATX
Modular Cable:  None
Colour:  Silver
LED Colour:  None

Be the first to Write a Review for this item!

Related Products
NEW

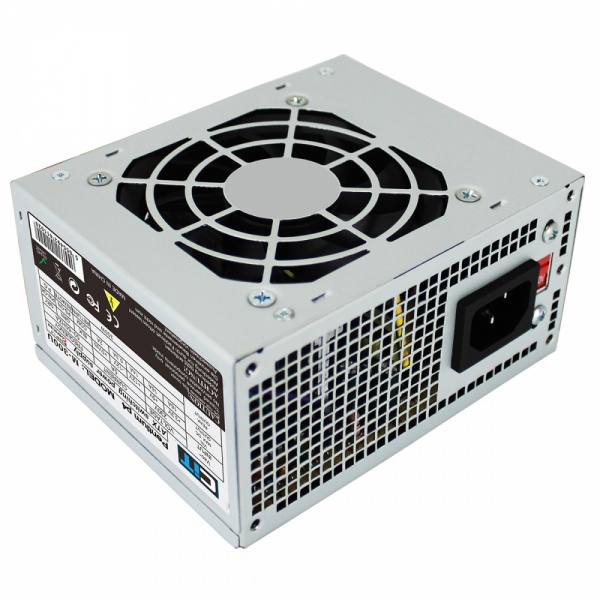

CIT 300W Micro ATX PSU Power Supply M-300U
