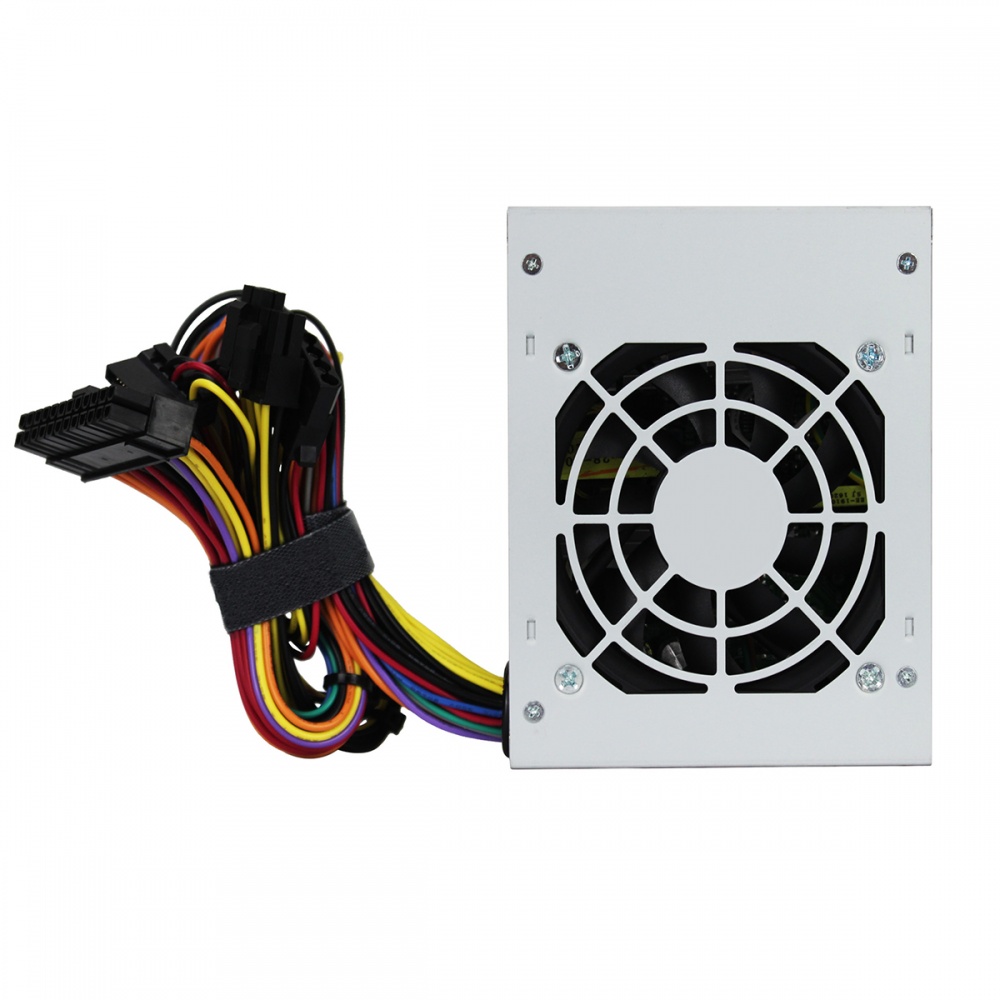

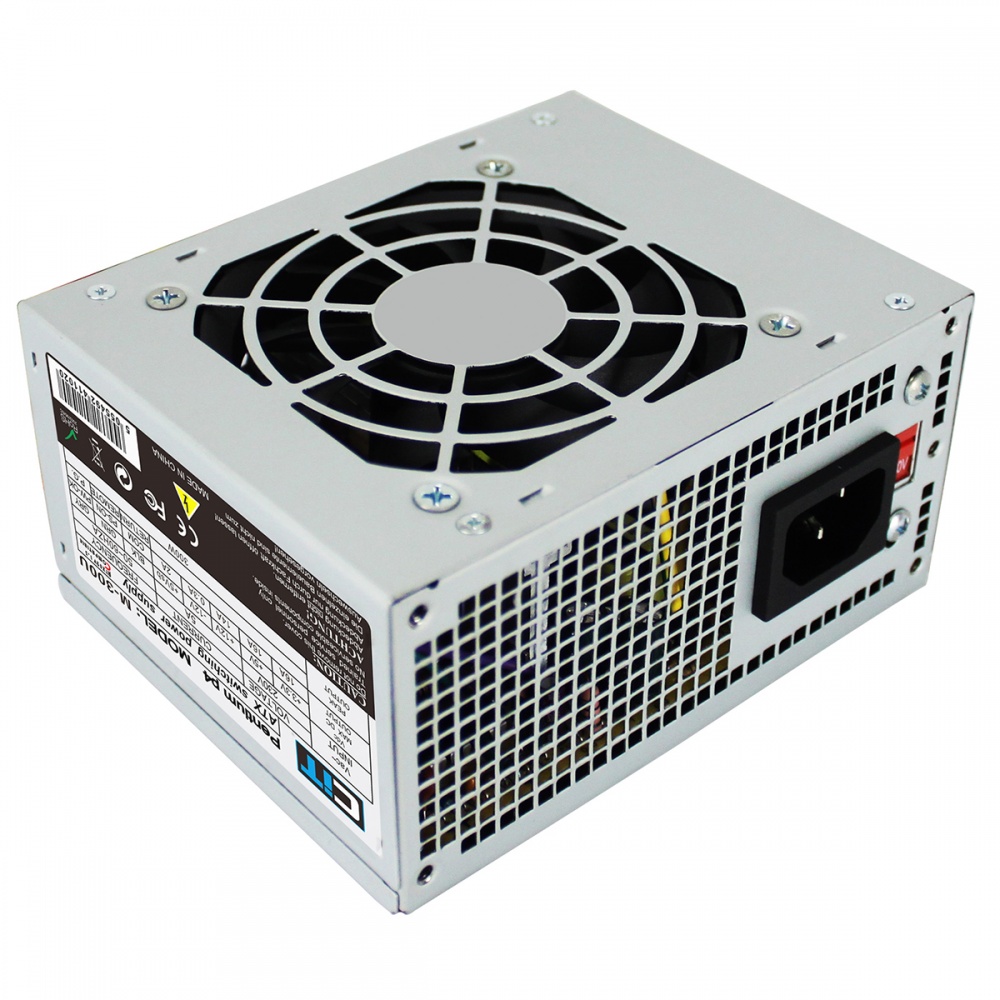

CIT 300W Micro ATX PSU Power Supply M-300U

• Small factor PSU
• Silent PSU with Temperature Control Fan
• Complies with Intel ATX12V 2.31VER
• Fan Speed Control Function Inside
• Passive PFC (Power Factor Correction)
• Low noise with intelligent-thermal fan control technology
• ATX 12V Compliant for all kinds of CPU and mainboard
• MTBF 50,000 Hours @ 25 degrees C

• 20+4 Pin Main Connectors: 1
• 4-Pin 12V Connectors: 1
• SATA Connectors: 3
• 4-Pin Molex Connectors: 2
• Floppy Drive Connectors:1

• Dimensions: 125mm x 65mm x 100mm (W x H x D)
• Input Voltage: 230 VAC
• Input Current: 5A
• Input Frequency Range: 50-60Hz
• PFC: Yes - Passive Power Factor Control
• Power Good Signal: 150-450 ms
• Hold Up Time: 1ms-40ms
• Efficiency: 75%
• MTBF: 100,000 Hours
• Protection: OVP / UVP/ OPP
• Power: 300W
• Operation Temperature: 45°C
• Safety: CE / ROHS
• Cooling: 80mm fan
• Noise: < 17 dBA

Model:  1005295
Bar Code:  5055492411020
Part Number:  M-300U
Brand:  CIT
80 Plus Rating:  None
Wattage:  300 W
PSU Form Factor:  Micro ATX
Modular Cable:  None
Colour:  Silver
LED Colour:  None
