4 Channel 5MP Lite CCTV DVR Recorder Nano Box 4CH H.265 5-in-1 HD VGA HDMI BNC AHD CVI

• 6 channel recording (4 channel BNC + 2 channel 5MP IP)

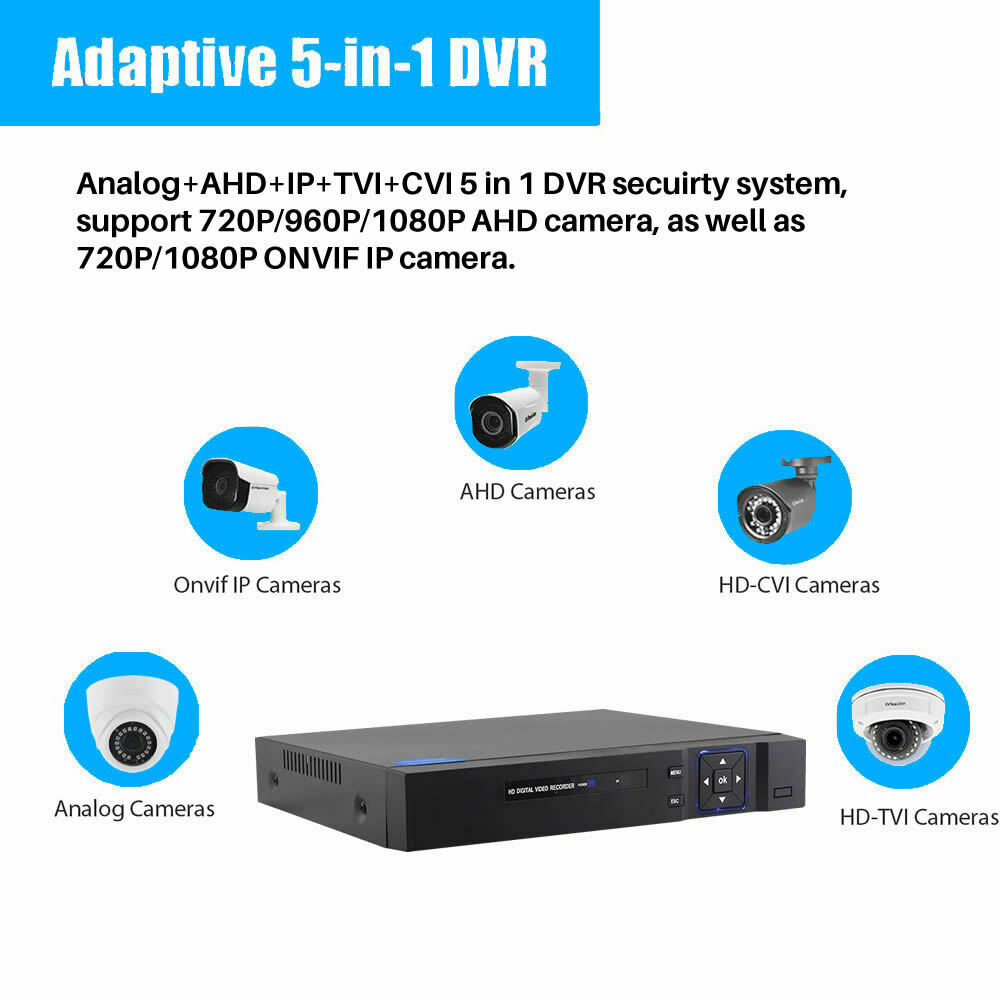

• 5 IN 1 (CVI/TVI/AHD/ANALOGUE/IP)
• H.265 video compression
• 5M-N recording@10fps, 1080P@15fps
• Supports 2-Way Audio
• Supports up to 5MP on extra IP channels
• Supports Analogue Audio over Coax (SPRO compatible camerasrequired)
• Supports “IP Audio over CAT5E” on extra IP channels(compatible cameras required)
• P2P mobile phone setup (no port forwarding or complicatedsetup)
• Clip live video or recordings while viewing playback onyour phone
• SMD PLUS (smart motion detection plus) & Perimeterprotection
• Intrusion & tripwire (human & vehicleclassification)
• Face detection 2.0

• Main Processor: Embedded Processor
• Operating System: Embedded LINUX

• Performance: 2 channels, 10 IVS for each channel
• Object classification: Human/Vehicle secondary recognitionfor tripwire and intrusion
• AI Search: Search by target classification (Human, Vehicle)

• Performance: Max 8 face pictures/sec processing
• 1 channels video stream face recognition, only supportanalog camera
• Stranger Mode: Detect strangers’ faces (not in device’sface database). Similarity threshold can be set manually.
• AI Search: Up to 8 target face images search at same time,similarity threshold can be set for each target face image.
• Database Management: Up to 10 face databases with 10,000face images in total. Name, gender, birthday, address, certificatetype, cerificate No., countries and state can be added to each facepicture.
• Database Application: Each database can be applied to videochannels independently.
• Trigger Events: Buzzer, Voice Prompts, Email, Snapshot,Recording, Alarm Out, PTZ Activation, etc.

• Performance: 4 channels
• AI Search: Search by target classification (Human, Vehicle)

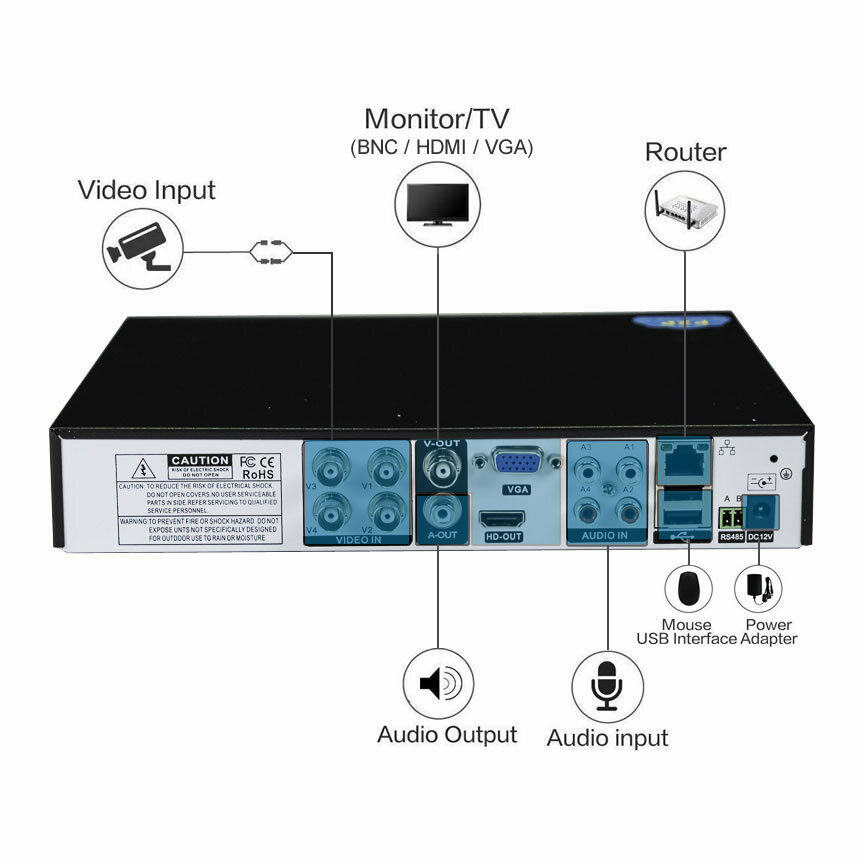

• Analog Camera Input: 4 channels, BNC
• HDCVI Camera Input: 5MP, 4MP, 1080P@25/30fps,720P@50/60fps, 720P@25/30fps
• AHD Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera Input: PAL/NTSC
• IP Camera Input: 4+2 channels, each channel up to 6MP
• Audio In/Out: 1/1, RCA
• Two-way Talk: Reuse audio in/out, RCA

• Compression: AI Coding/H.265+/H.265/H.264+/H.264
• Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Record Rate – Main Stream: 5M-N (1fps–10fps); 4M-N/1080P(1fps–15fps); 1080N/ 720P/ 960H/ D1/ CIF (1fps–25/30fps)
• Record Rate – Sub Stream: D1/CIF (1fps–15fps)
• Bit Rate: 32Kbps~6144Kbps Per Channel
• Record Mode: Manual, Schedule (General, Continuous), MD(Video detection:
• Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval: 1~60 min (default: 60 min),
• Pre-record: 1~30 sec, Post-record: 10~300 sec
• Audio Compression: G.711A, G.711U, PCM
• Audio Sample Rate: 8KHz, 16 bit Per Channel
• Audio Bit Rate: 64Kbps Per Channel

• Interface: 1 HDMI, 1 VGA
• Resolution: 1920×1080, 1280×1024, 1280×720
• Multi-screen Display: When IP extension mode not enabled:1/4
• When IP extension mode enabled: 1/4/6
• OSD: Camera title, Time, Video loss, Camera lock,
• Motion detection, Recording

• Ethernet: 1 RJ-45 Port (100 MB)
• Network Functions: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi,3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera,DVR, NVS, etc.)
• Max. User Access: 128 users
• Smart Phone: iPhone, iPad, Android Phone
• Interoperability: ONVIF 16.12, CGI Conformant
• Video Detection & Alarm:
• Trigger Events: Recording, PTZ, Tour, Video Push, Email,FTP, Snapshot,
• Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 × 18),Video Loss,
• Tampering and Diagnosis
• Alarm input: N/A
• Relay Output: N/A

• Sync Playback: 1/4
• Search Mode: Time/Date, MD & Exact search (accurateto second)
• Playback Functions: Play, Pause, Stop, Rewind, Fast play,Slow play, Next file, Previous file,
• Next camera, Previous camera, Full screen, Repeat, Shuffle,
• Backup selection, Digital zoom
• Backup Mode: USB Device/Network
• Storage:
• Internal HDD: 1 SATA port, up to 6TB
• Auxiliary Interface:
• USB Interface: 2 USB Ports (USB 2.0)
• RS485: 1 port, For PTZ Control
• RS232: N/A

• Power Supply: DC12V-2A
• Power Consumption: <4W (without HDD)

• 1 x CCTV DVR
• 1 x 12V Power Supply
• 1 x User Manual
• 1 x USB Mouse

Model:  1006518-NO-HDD
Part Number:  NB-XVR4CH-5MP
Brand:  NANO BOX
CCTV Channels:  4 Ch
Connectivty:  Wired
Max. Resolution:  5 MP
Camera Output Type:  BNC Coaxial
