4 Channel CCTV DVR Recorder Nano Box 2MP 4CH H.265 5-in-1 HD VGA HDMI BNC AHD CVI

Our Price: £39.99

(Inc. 20% VAT)

Hard Drive Size:

–+

Information
Specifications
Reviews (0)

The new CCTV digital recorders range, including 4/8/16 channel professional DVRs, can record up to full HD video on all channels. It is a hybrid recorder, compatible with AHD, HD-TVI, CVI, CMOS traditional standard definition analog cameras, as well as IP cameras. The newly updated DVRs offer a range of features suited for advanced applications, including remote monitoring station integration, and P2P connectivity for remote viewing on mobile devices, such as iPhone, android smartphone and tablet PCs.

Features:

H.265+ Ultra HD Efficiency video compression.
7 x 24 loop recording and easy USB backup.
Support both AHD camera, Analog camera, and IP camera input (Support up to 1080P CCTV analog camera and 1080P IP camera input).
NVR CVI TVI HVR AHD 5-in-1 function, support both AHD camera and analog camera input.
Support many kinds of Web browsers. (IE/Chrome/Firefox/Safari)
Support Twenty kinds of languages. OSD Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, etc
Support motion detection record and push notification.
Plug and play use, no need for any complex installation.
Supports mobile phone view Symbian, Windows Mobile, iPhone, Android, Blackberry, iOS OSX
For Android and iOS Phone Application: Search For 'XMEye' in Google Play for Android / 'XMEye' in iTunes for iPhone
Quickly search video files and easy to playback
Support cloud service P2P Function
CE ROHS approved
Support 4/8/16 channel simultaneous live viewing via your smartphone

Specifications:

Operating System: Embedded Linux System
Menu Display: 1/4 , 1/8, 1/16 screen
Signal System: PAL/NTSC
Browser: Supports multiple web browsers
CMS: Support CMS 3.0
APP: Support for iPhone, Android
Compression Format: H.265+
Region Cover: Support 4 areas block
PTZ Protocol: PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, SAMSUNG, RM110, HY
Network protocol: TCP/IP, DHCP, DDNS, NTP, SMTP, HTTP, LAN
Network Internet port:10 / 100 / 1000 Mbps upto 10Gbps Ethernet (RJ-45)

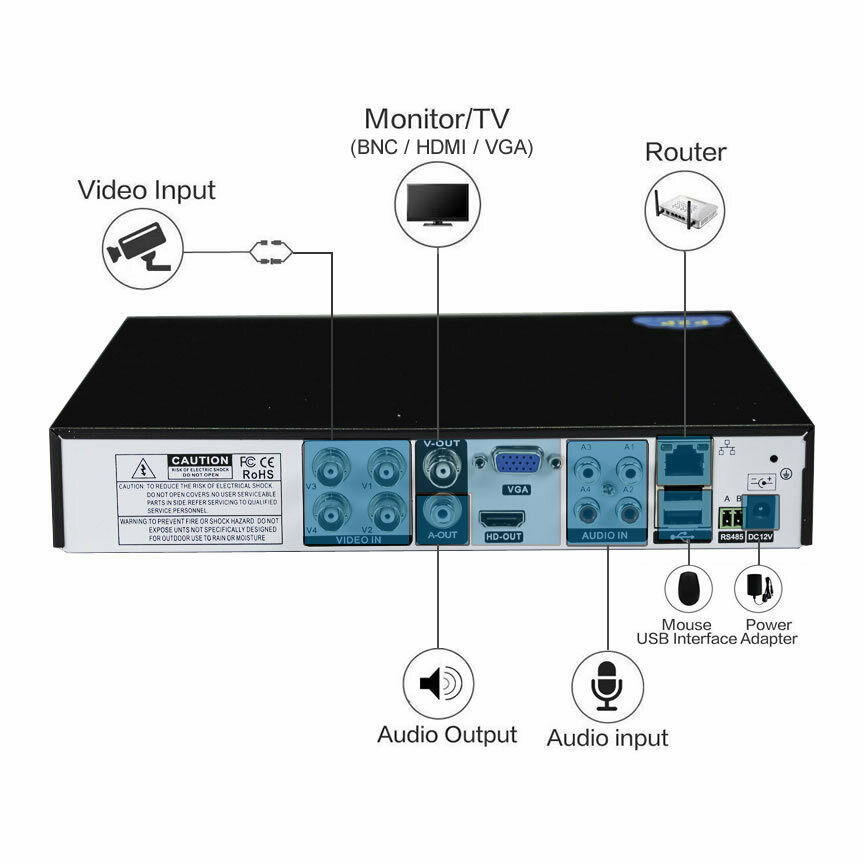

USB Interface 2*USB Interface
Video Input: 4/8/16 channel BNC;
Video Output: 1 Channel BNC, HDMI/VGA
Audio Input: 4ch RCA
Audio Output: 1 RCA
PC/ Laptop Software: Support Windows XP, Win7, Win8, Win10, etc
Work Temperature: -10°C ~60°C
Working humidity: 10%~ 90% Humidity

Power Adapter:

AC/DC 230V-12v 2a
Input: 100-240VAC
50/60Hz 2A (Max)
Output: DC12V (2A)

Package Contents:

CCTV recorder
UK Power Adapter
USB Mouse
Screws For HDD
Quick Start Guide

Model: 1006336-NO-HDD
Bar Code: 5060562123055
Part Number: ASP-8004XVR-1080N
Brand: NANO BOX
CCTV Channels 4 Ch
Connectivty Wired
Max. Resolution 2 MP
Camera Output Type BNC Coaxial
