Ubiquiti UniFi 8 Port 10Gb SFP+ Layer 2 Aggregation Switch - USW-Aggregation

Ubiquiti UniFi 8 Port 10Gb SFP+ Layer 2 Aggregation Switch - USW-Aggregation
  Zoom
Our Price:  £296.04
(Inc. 20% VAT)

Availability:



In stock

+


UBIQUITI

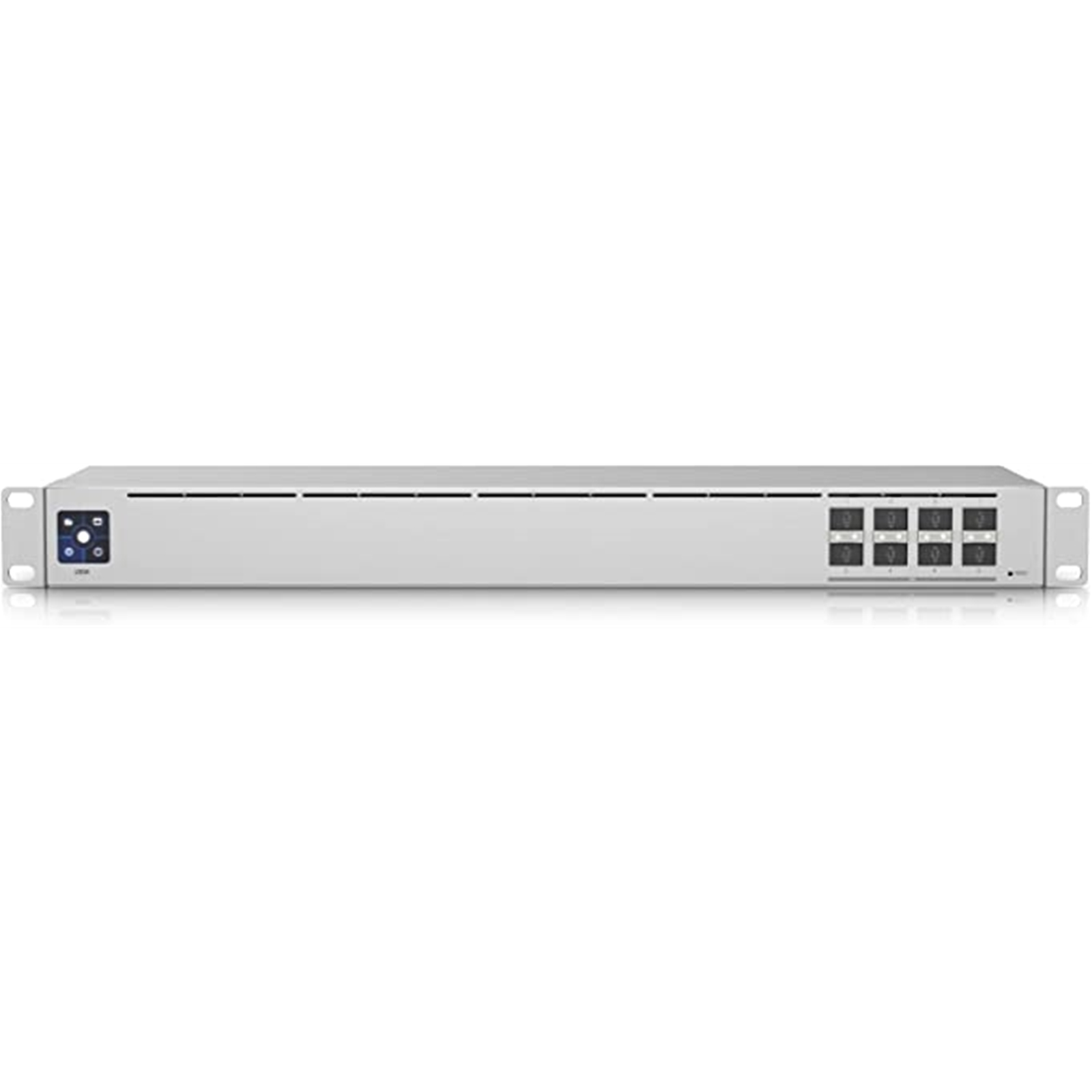

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

Layer 2 switch with (8) 10G SFP+ ports

The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive

Hardware

Total Non-Blocking Throughput
80 Gbps

Switching Capacity
160 Gbps

Forwarding Rate
119.04 Mpps

Max Power Consumption
30W

Power Method
Universal AC Input: 100-240VAC, 50/60 Hz

Power Supply
AC/DC, Internal, 36W

Management Interface
Ethernet In-Band

Modes
SMB Layer 2 Gigabit Ethernet Switch

Max. Number of Supported SFP+ Modules
UACC-OM-MM-10G - 8
UACC-OM-SM-10G - 8
UACC-CM-RJ45-10G - 4

ESD/EMP Protection
Air: 16kV, Contact: 12kV

Operating Temperature
-5 to 40 C (23 to 104 F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC

LEDs

System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

SFP+
White: 1/10G

Packaging

Weight
Without Mount: 2.65 kg (5.84 lb)
With Mount: 2.74 kg (6.04 lb)

Dimensions
442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")

Enclosure Material
SGCC Steel

Warranty
1 Year


Model:  NPUBI-USWAGG
Bar Code:  810010074331
Part Number:  USW-AGGREGATION
Brand:  UBIQUITI
