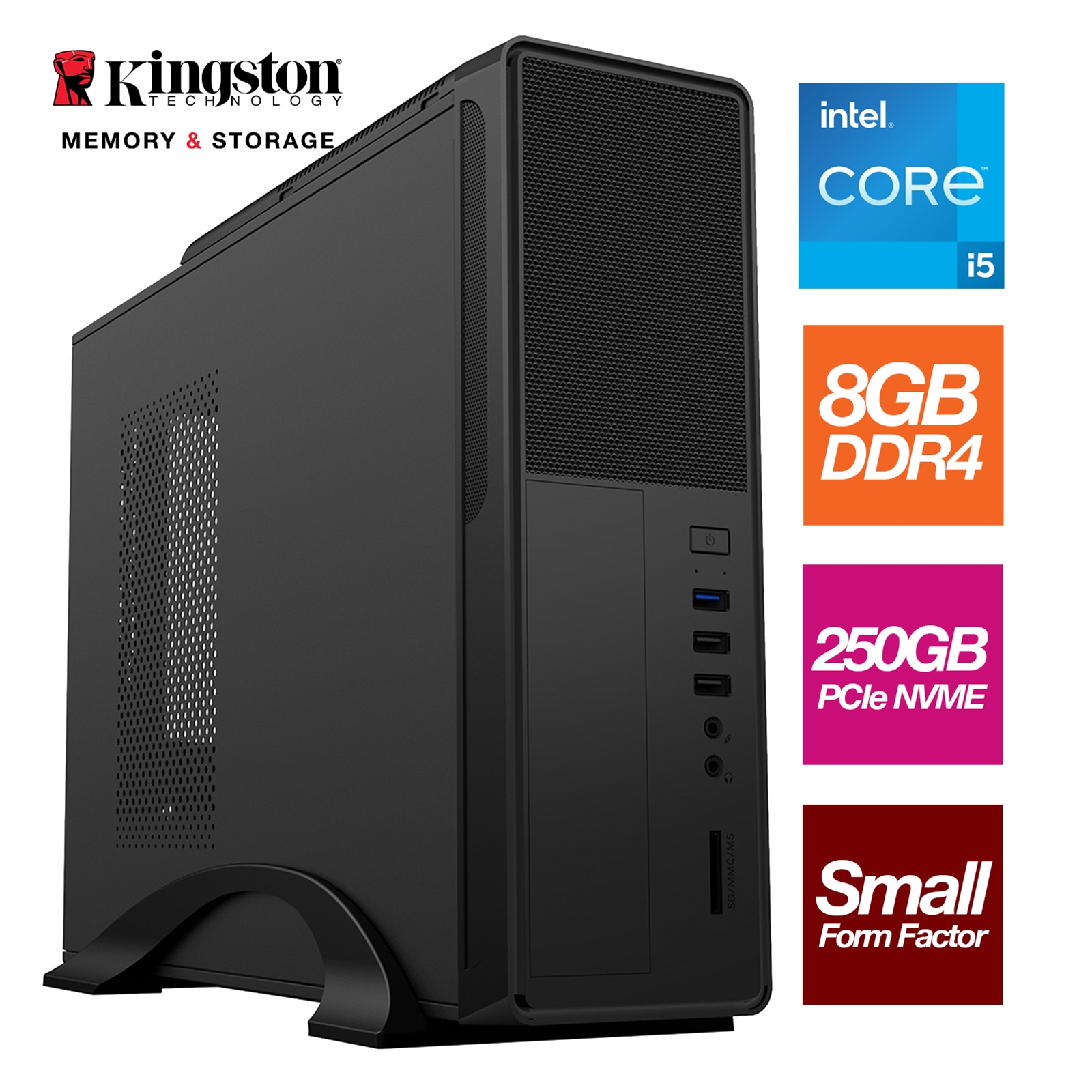

Small Form Factor - Intel i5 13400, 10 Core 16 Threads 2.50GHz (4.60GHz Boost), 8GB Kingston RAM, 250GB Kingston NVMe, No Optical, Small Foot Print for Home or Office Use - Pre-Built PC

Small Form Factor - Intel i5 13400, 10 Core 16 Threads 2.50GHz (4.60GHz Boost), 8GB Kingston RAM, 250GB Kingston NVMe, No Optical, Small Foot Print for Home or Office Use - Pre-Built PC
  Zoom
Our Price:  £525.03
(Inc. 20% VAT)

Availability:



No stock



TARGET

Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description
Small Form Factor - Intel i5 13400, 10 Core 16 Threads 2.50GHz (4.60GHz Boost), 8GB Kingston RAM, 250GB Kingston NVMe, No Optical, Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i5 13400 2.5GHz 10 Core LGA 1700 Raptor Lake Processor, 16 Threads, 4.6GHz Boost, Intel UHD 730 Graphics

Processor Cores
10

Processor Threads
16

Core Clock Speed
2.50GHz

Core Boost Speed
4.60GHz

Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3000 MB/s, Write 1300 MB/s

Format
M.2 NVMe

Max Read/Write Speeds
Read Speed: Up to 3000 MB/s
Write Speed: Up to 1300 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Processor Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.65 GHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
N/A

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Gigabyte H610M S2H DDR4 Motherboard, Intel Socket 1700, 12th Gen, Micro ATX, Digital VRM Design, PCIe 4.0, Gen3 x4 M.2, Realtek Gaming LAN, HDMI/DVI/VGA Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 6

Expansion Slot
1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
7 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)

Model:  SBBUS-SF-N25H3
Bar Code:  SBBUS-SF-N25H3
Part Number:  SBBUS-SF-N25H3
Brand:  TARGET
CPU Generation:  Intel i5
