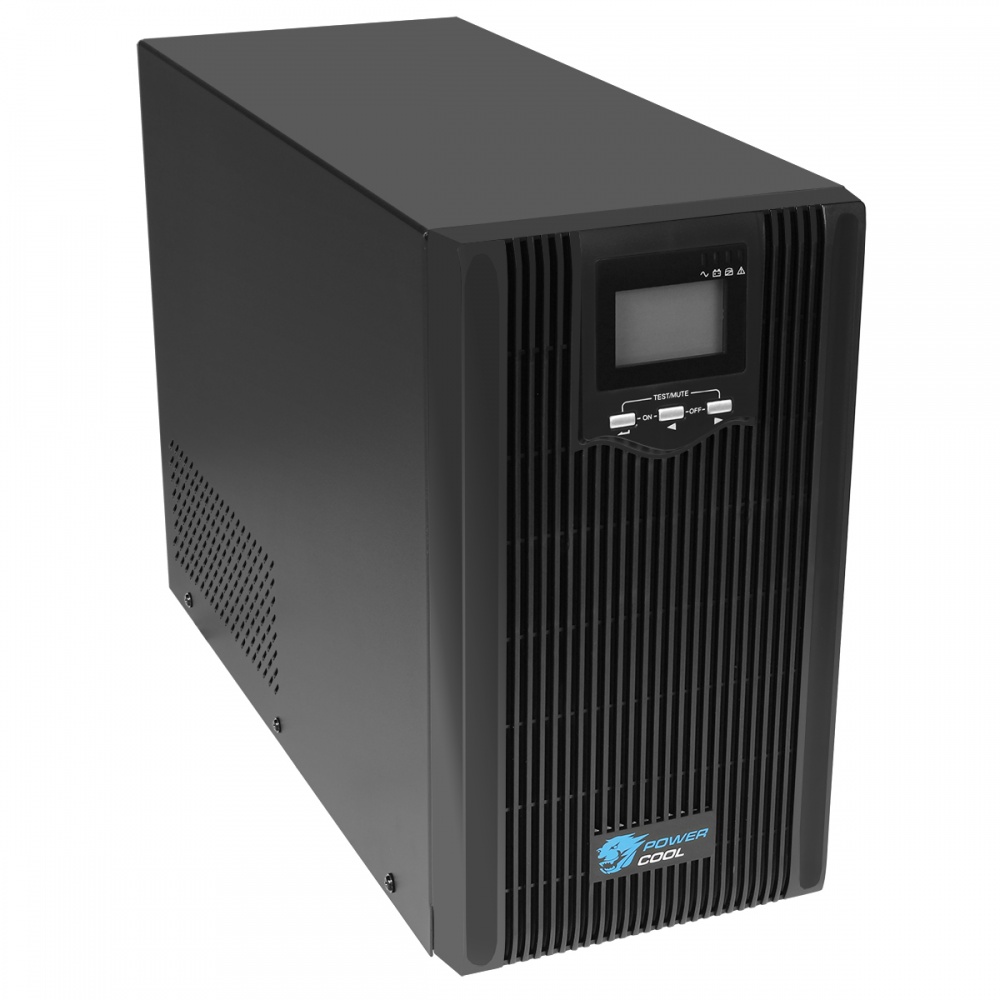

The Powercool Smart UPS 3000VA is a line-interactive UPS which iscompact and provides a stable power protection against surges andspikes. It is ideal for PC users or small business companies, as wellas for Router/Small switch network applications. Its embeddedmicroprocessor controller guarantees high reliability and it canautomatically restart while the AC power is recovering. With thesimulated sine wave, cold start function and USB/RS-232 communicationport and RJ-45 for LAN protection, it will be a great choice.
Key Features - Pure Sine Wave Output
- Output power factor 0.8
- DSP digital Control
- Boost and buck AVR for voltage stabilization
- Auto Sensing Frequency
- Adjustable charging current and battery shutdown point
- Settable ECO mode and no-load shutdown
- Humanized alarm system
- Power - on self test
- Cold Start
- Auto restart when mains power is restored
- Intelligent battery management
- Short circuit and overload protection
- Automatic charging in off mode
- USB & RJ45 communication port
Specifications - Power: 2400W
- Noise: Less Than 50db (1metre)
- Temperature: 0 - 40 DegreesCelsius
- Humidity: 10 - 90 Percent
- Input-Phase: Single and GND
- Input - Voltage Range: 220-240VAC
- Input Frequency: 50 Hz / 60 Hz
- Output Voltage Range: 220-240VAC
- Output - Wave Form: Pure sinewave
- Output - Frequency: 50 / 60Hz
- Output - Efficiency : Max 98Percent (AC mode) Max 85 Percent (Linear Load)
- Output - Transfer Time: 8ms
- Protection - Overload (AC Mode): 110 Percent for 120 secs, 125 Percent for 60 secs and 150Percent for 10 secs (Transfer to bypass mode)
- Protection - Overload (Inverter Mode): 110 Percent for 60 secs, 125 Percent for 10 secs and 150Percent for 5 secs (Shut down directly)
- Protection - LAN: RJ45 SurgeProtection
- Noise Filtering - EMI / RFI: Full time Suppression
- Communication: USB (RS232 /SNMP (Optional)

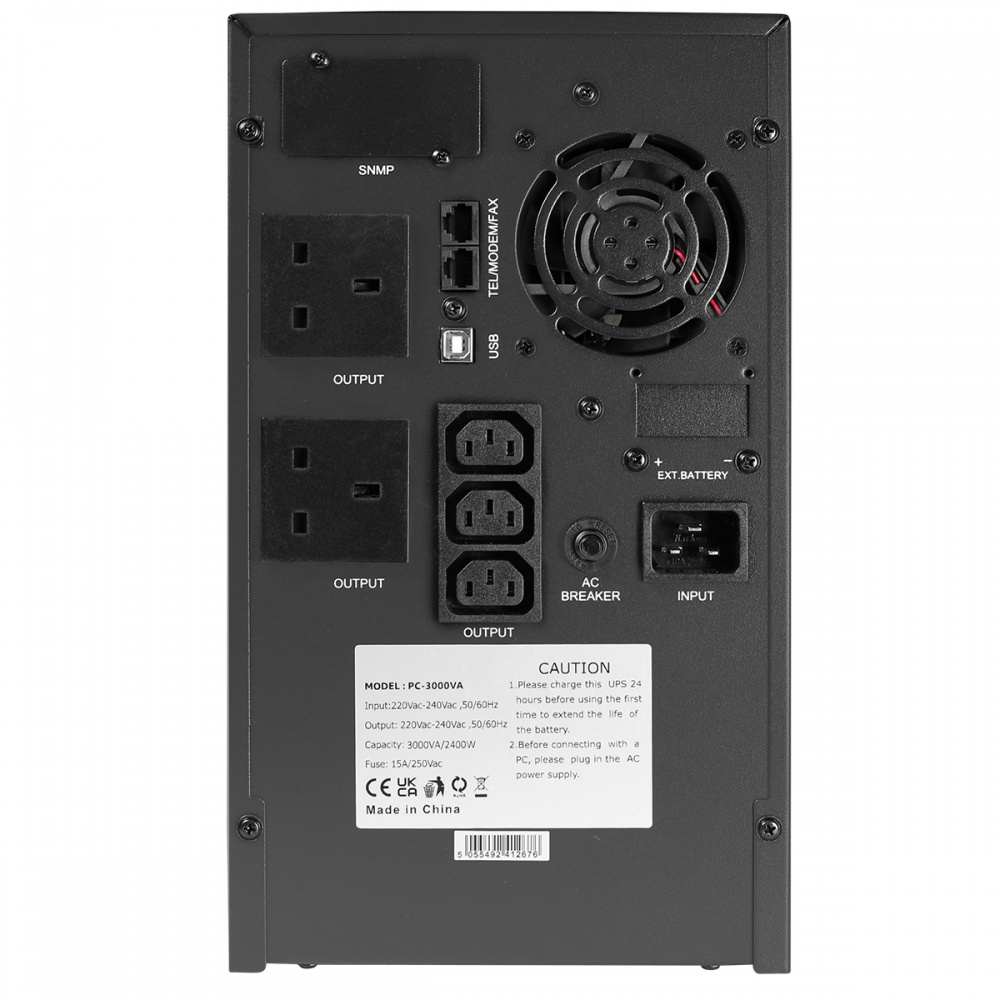

- I/O Ports - UK Mains Socket: 2 pcs UK Sockets
- I/O Ports - RJ45: 2 x RJ45
- I/O Ports - USB: 1 x USB
- I/O Ports - IEC Socket: 3 xIEC Sockets
- Battery - Type: SealedLead-Acid, Maintenance Free
- Battery - Quantity: 12V9Ah x 4
- Battery - Recharge Time: 90Percent Capacity After 8 Hours
- Battery - Backup time: 10-30minutes (Dependent On Load)
