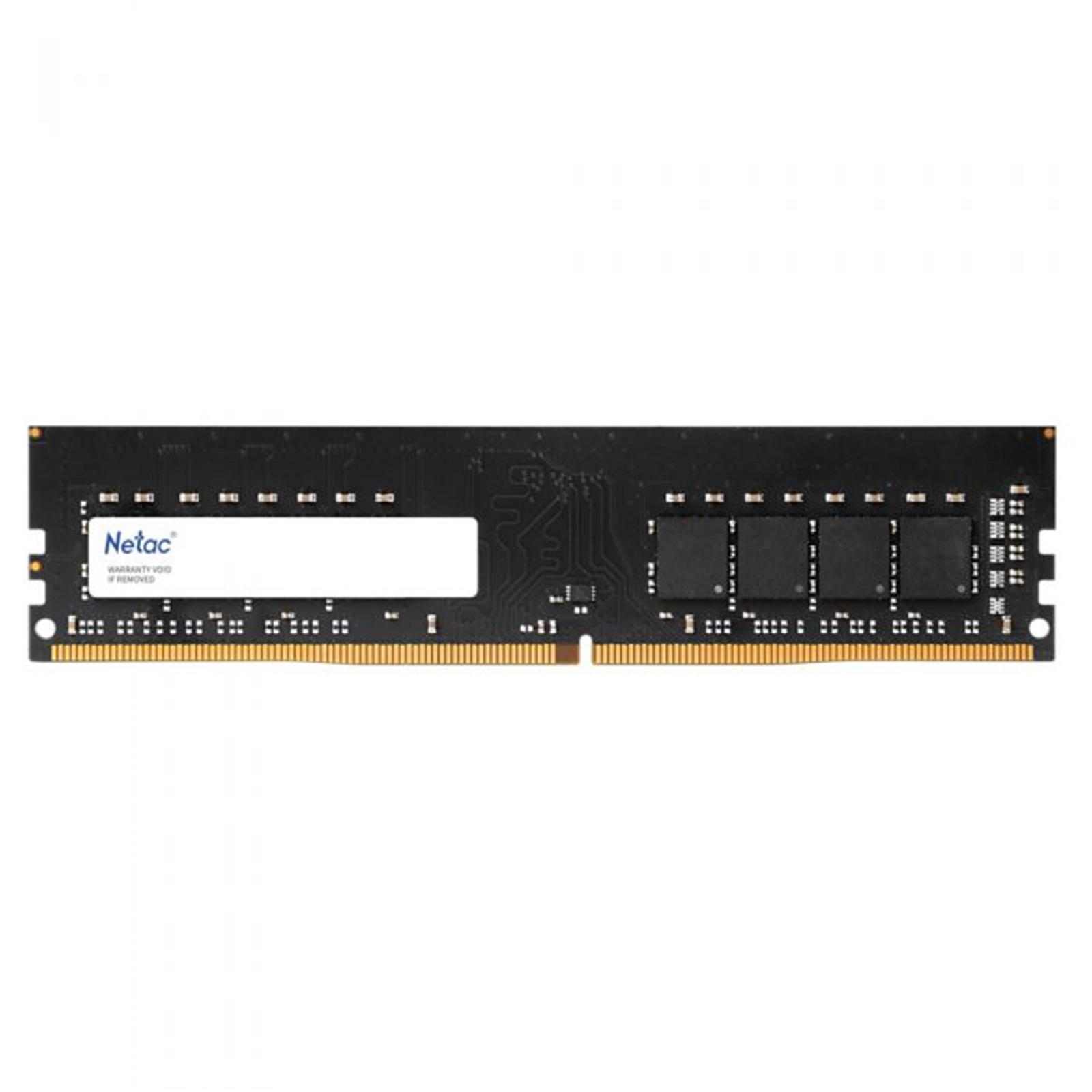

NTBSD4P32SP-16 is a 2G x 64-bit (1R8) DDR4-3200 C16 SDRAM (Synchronous DRAM), memory module based on eight 2G x 8-bit FBGA components per module. The SPD is programmed to latency timing of 16-20-20 at 1.35V. support XMP, Each 288-pin DIMM uses gold contact fingers.
FEATURESPower SupplyVDD=1.35V Typical
VDDQ1.2V Typical
VPP2.5V Typical
VDDSPD2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB
Height 1.23? (31.25mm)
RoHS Compliant and Halogen-Free
SPECIFICATIONSCL(IDD) 16 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
Maximum Operating Power TBD W
UL Rating 94V-0
Operating Temperature 0 C to +70 C
Storage Temperature -40 C to +85 C
