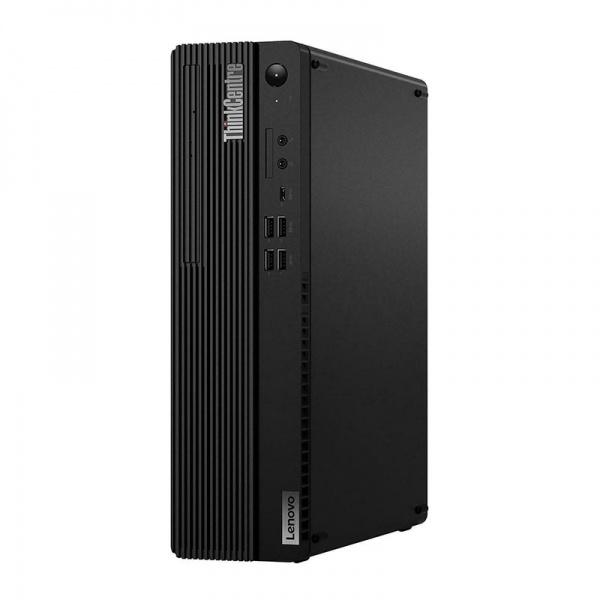

Lenovo ThinkCentre M70s 11DC003RUK Small Form Factor PC, Intel Core i7 10700 10th Gen, 8GB RAM, 256GB SSD, DVDRW, Windows 10 Pro

PERFORMANCE

Processor
Intel Core i7-10700 (8C / 16T, 2.9 / 4.8GHz, 16MB)

Graphics
Integrated Intel UHD Graphics 630

Chipset
Intel H470 Chipset

Memory
1x 8GB UDIMM DDR4-2933

Memory Slots
Four DDR4 DIMM slots, dual-channel capable

Max Memory
Up to 128GB DDR4-2933

Storage
1x 256GB SSD M.2 2280 PCIe x4 NVMe Opal

Optane Memory
None

Storage Support
Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD
• 2.5" HDD up to 1TB each
• 3.5" HDD up to 2TB
• M.2 SSD up to 2TB
• Optional Intel Optane Memory, M.2

Card Reader
3-in-1 Card Reader

Optical
DVD±RW

Audio Chip
High Definition (HD) Audio, Realtek ALC623-CG codec

Speakers
1Wx1

Power Supply
260W 85%

DESIGN

Keyboard
USB Traditional Keyboard, Black, English (UK)

Mouse
USB Calliope Mouse, Black

Front Access HDD
None

Optional Bay
Optional 2.5" Bay

Expansion Slots
One PCIe 3.0 x1, low-profile (length < 155mm, height < 68mm)
One PCIe 3.0 x16, low-profile (length < 155mm, height < 68mm)
Two dummy slots, only brackets for optional port extension
Two M.2 slots (one for WLAN, one for SSD)

Case Color
Black

Form Factor
SFF (8.2L)

Dimensions (WxDxH)
93 x 298 x 340 mm (3.6 x 11.7 x 13.4 inches)

Weight
Around 5.3 kg (11.7 lbs)

CONNECTIVITY

Ethernet
Integrated 100/1000M

WLAN + Bluetooth
None

Front Ports
2x USB 3.2 Gen 1
2x USB 3.2 Gen 2
1x USB-C 3.2 Gen 1
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

Optional Front Ports (configured)
1x card reader

Rear Ports
4x USB 2.0
1x HDMI
2x DisplayPort
1x serial (9-pin)
1x Ethernet (RJ-45)
1x line-out (3.5mm)

Optional Rear Ports (configured)
None

Monitor Cable
None

SECURITY & PRIVACY

Security Chip
Discrete TPM 2.0, TCG certified

Fingerprint Reader
No fingerprint reader

Physical Locks
Kensington Security Slot, 3 x 7 mm
Padlock Loop

MANAGEABILITY

System Management
Non-vPro

SERVICE

Base Warranty
1-year, Onsite

Included Upgrade
None

CERTIFICATIONS

Green Certifications
EPEAT Silver
ENERGY STAR 8.0
ErP Lot 3
TCO Certified 8.0
RoHS compliant

Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation)

SOFTWARE

Operating System
Windows 10 Pro 64, English
