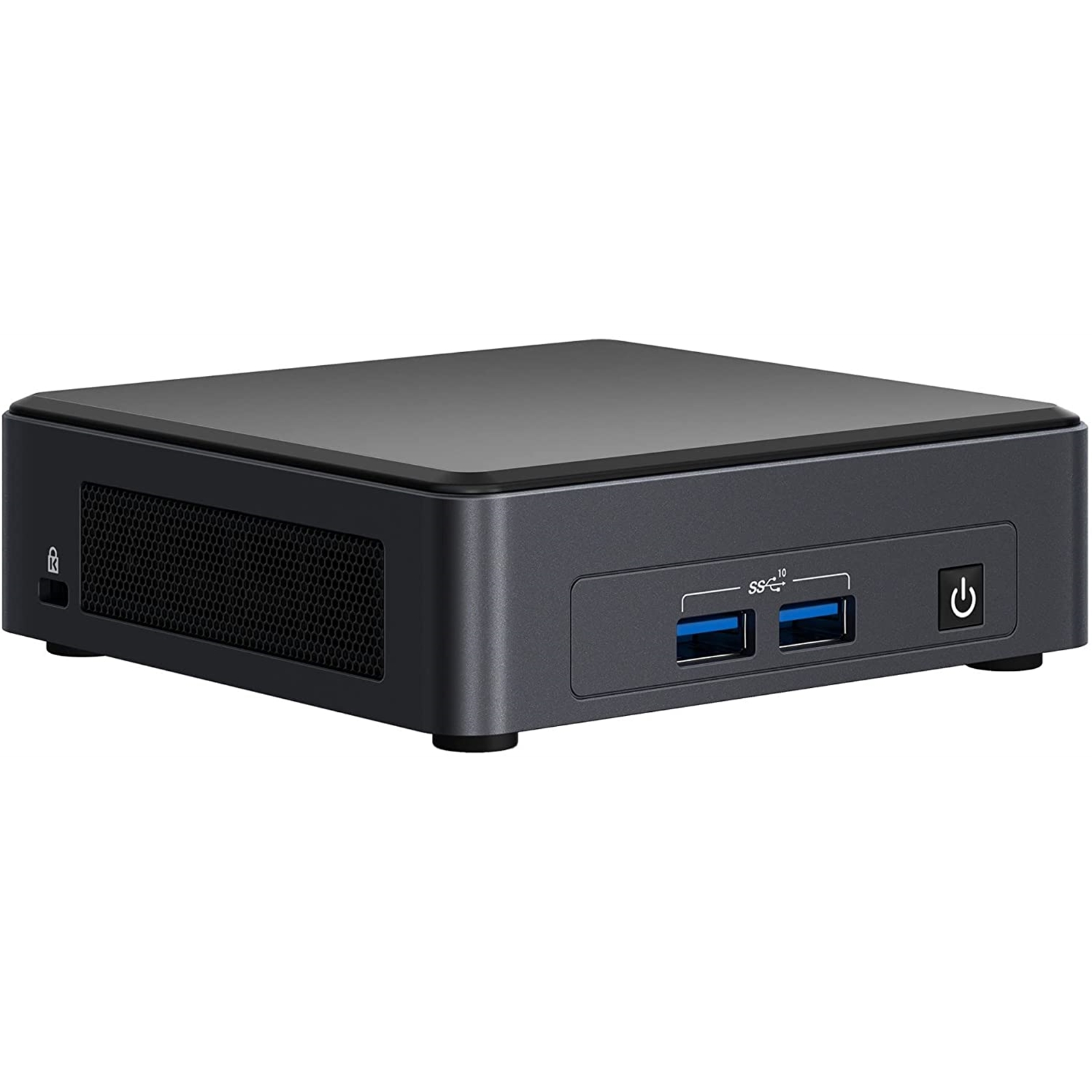

Intel NUC BNUC11TNKI30002 11 Pro UCFF PC, Black, Intel Core i3-1115G4 11th Gen

Pint-Sized Power
The Intel NUC is a mini PC with the power of a desktop, packing features for entertainment, gaming, and productivity in a 4x4 form factor.

Energy Optimized, Media Savvy
With Intel NUC, you get an immersive media experience and responsive interaction while consuming a small amount of power relative to a full-sized PC.

Flexibility For Future Growth
Due to its portable size and ease of installation, the Intel NUC makes it easy to add devices and scale up rapidly based on changing productivity needs.

SPECIFICATIONS

General

Type:
Personal computer

Product Form Factor:
Mini PC

Localisation Region:
Europe

Processor / Chipset

CPU:
Intel Core i3 (11th Gen) 1115G4

Clock Speed:
3 GHz

Max Turbo Speed:
4.1 GHz

Number of Cores:
Dual-Core

CPU Qty:
1

Max CPU Qty:
1

CPU Upgradability:
Not upgradable

Processor Main Features:
Hyper-Threading Technology,
Intel Virtualization Technology,
Intel Turbo Boost Technology 2,
Intel 64 Technology,
Intel AES New Instructions,
Intel Virtualization Technology for Directed I/O,
Intel Virtualization Technology with Extended Page Tables

Cache Memory

Installed Size:
6 MB

Cache Per Processor:
6 MB

RAM

Installed Size:
0 GB - Max Installation size 64 GB (max)

Technology:
DDR4 SDRAM

Rated Memory Speed:
3200 MHz

Form Factor:
SO-DIMM 260-pin

Slots:
2 (Total) / 2 (empty)

Features:
Dual channel memory architecture

Hard Drive Type:
No HDD

Storage Controller

Type:
1 x SATA/NVMe

Controller Interface Type:
SATA 6Gb/s / PCIe 3.0 x4 (NVMe)

Optical Storage

Type:
No optical drive

Graphics Controller

Graphics Processor:
Intel UHD Graphics

Video Interfaces:
HDMI, USB-C

Max Monitors Supported:
4

Audio Output

Sound Output Mode:
7.1 channel surround

Compliant Standards:
High Definition Audio

Networking

Ethernet Ports:
2.5 Gigabit Ethernet

Ethernet Controller:
Intel I225-LM

Wireless LAN Supported:
Yes

Wireless NIC:
Intel Wi-Fi 6 AX 201

Data Link Protocol:
Ethernet,
Fast Ethernet,
Gigabit Ethernet,
IEEE 802.11b,
IEEE 802.11a,
IEEE 802.11g,
IEEE 802.11n,
IEEE 802.11ac,
2.5 Gigabit Ethernet,
Bluetooth 5.0,
IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.1

Compliant Standards:
IEEE 802.3,
IEEE 802.3u,
IEEE 802.1Q,
IEEE 802.3ab,
IEEE 802.1p,
IEEE 802.11b,
IEEE 802.11a,
IEEE 802.11g,
IEEE 802.1as,
IEEE 802.11n,
IEEE 802.11ac,
IEEE 802.1BR,
IEEE 802.1Qav,
IEEE 802.3bz,
IEEE 802.11ax,
Bluetooth 5.1,
IEEE 802.1Qbv,
IEEE 802.1Qbu

Expansion / Connectivity

Slots:
1 (total) / 0 (free) x M.2 Card - 2280 (Key M)
1 (total) / 1 (free) x M.2 Card - 2242 (Key B)
1 (total) / 0 (free) x M.2 Card - 2230 (Key E)

Interfaces:
2 x Thunderbolt/USB4
2 x HDMI
2 x LAN (Gigabit Ethernet)
3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear)
1 x USB 2.0 - Type A (1 rear)

Miscellaneous

Compliant Standards:
BSMI,
ICES-003,
EN55024,
FCC Part 15 B,
FCC Part 15 C,
RoHS,
FCC Part 15 E,
BSMI CNS 13438,
REACH, EN 300.440,
EN 300 328,
EN 301 489-1,
KN32,
KN35,
EN 301 893,
IEC/EN/UL 60950-1,
EN 55032,
EN 301 489-3,
IEC/EN/UL 62368-1,
EN 301 489-17,
ARPANSA,
AS/NZS CISPR 32,
VCCI 32

Power

Device Type:
Power adapter

Voltage Required:
DC 19 V

Manufacturer Warranty

Service & Support:
Limited warranty - 3 years

Dimensions & Weight

Width:
11.7 cm

Depth:
11.2 cm

Height:
3.7 cm

Environmental Parameters

Min Operating Temperature 0C
Max Operating Temperature 40C

Operating system

Supports:
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows 10 IoT Enterprise*, Windows 10 Pro, 64-bit*
