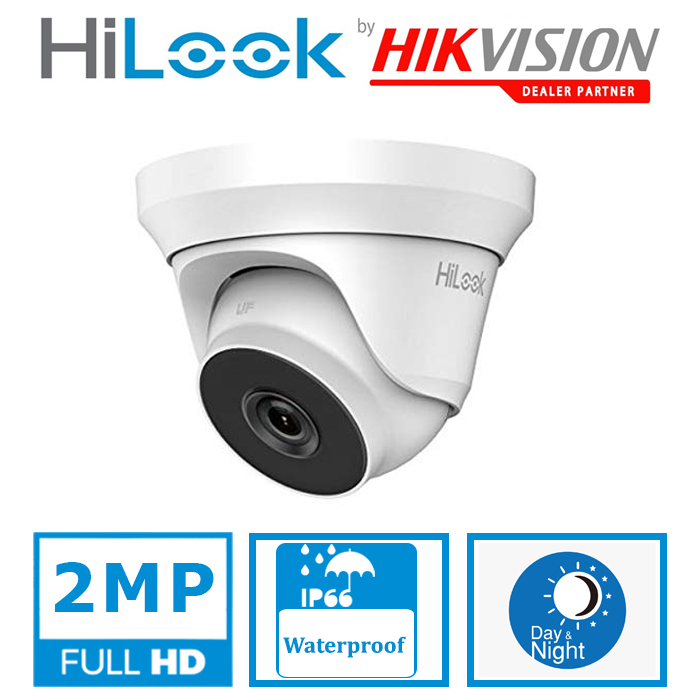

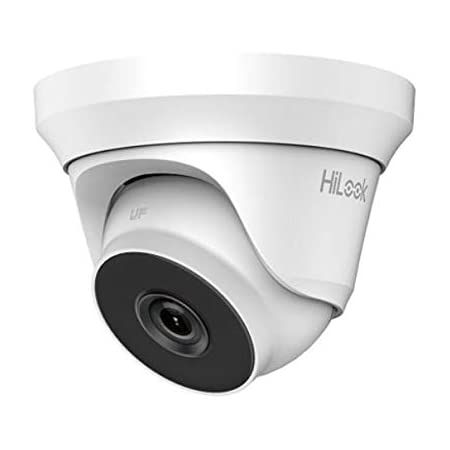

HiLook by Hikvision Turbo 4in1 1080P HD 2MP 40m Turret 2.8mm Lens THC-T220-MC

HiLook by Hikvision Turbo 4in1 1080P HD 2MP 40m Turret 2.8mm Lens THC-T220-MC
  Zoom
HiLook by Hikvision Turbo 4in1 1080P HD 2MP 40m Turret 2.8mm Lens THC-T220-MCHiLook by Hikvision Turbo 4in1 1080P HD 2MP 40m Turret 2.8mm Lens THC-T220-MCHiLook by Hikvision Turbo 4in1 1080P HD 2MP 40m Turret 2.8mm Lens THC-T220-MC
Our Price:  £19.99
(Inc. 20% VAT)

Availability:



In stock

+
12V 10A 120W AC/DC Power Supply Adaptor 10 Amp Transformer12V 10A 120W AC/DC Power Supply Adaptor 10 Amp Transformer
BNC Coaxial + DC Power CCTV Extension Cable 1080P 4K  - BlackBNC Coaxial + DC Power CCTV Extension Cable 1080P 4K - Black


Hilook By Hikvision

The HiLook THC-T220-Ms is a high resolution 2 mega-pixel analogueturret-style CCTV camera that features powerful built-in infrared forimages in complete darkness up to 40 metres away. The built-inmicrophone supplies audio over the coax cable, enabling sound alongwith the camera image without the need for a separate cable.

The all metal turret style design of the THC-T220-Ms delivers glarefree images in all weathers while still offering significant vandalresistance and the flexibility to be mounted either vertically orhorizontally.

Universal Multi-format Camera

The HiLook THC-T220-MS has universal BNC video and DC power connectorsand can be switched between several analogue video formats includingTVI, CVI, AHD and CVBS allowing it to be used on most modern CCTVrecorders.

Powerful Infrared LED's for NightVision

The THC-T220-Ms has a powerful smart EXIR LED infrared array which canilluminate objects up to 40 metres away allowing the camera to captureimages and details in complete darkness.

Features:
  • 2 MP, 1920 1080 Full HD resolution
  • 2.8 mm fixed focal lens, super wide-angle
  • Smart IR, up to 40 m IR distance nightvision
  • Audio over coaxial cable, built-in mic
  • Standard BNC output
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP66 rated against dust and waterproof

Specifications

    Camera
  • ImageSensor2 MP CMOS
  • Max.Resolution1920 (H) 1080 (V)
  • Min.Illumination0.01 Lux@(F1.2, AGCON), 0 Lux with IR
  • ShutterTimePAL: 1/25 s to 1/50,000s;NTSC: 1/30 s to 1/50,000 s
  • Day& NightIR Cut Filter
  • AngleAdjustmentPan: 0 to 360, Tilt: 0to 180, Rotation: 0 to 360
  • SignalSystemPAL/NTSC
    Lens
  • LensType2.8 mm, 3.6 mm and 6 mmfixed focal lens
  • FocalLength & FOV

    2.8 mm,horizontal FOV: 106.4, vertical FOV: 57.9, diagonal FOV: 124.6

    3.6 mm,horizontal FOV: 79.6, vertical FOV: 43.5, diagonal FOV: 93.7

    6 mm,horizontal FOV: 51.9, vertical FOV: 30, diagonal FOV: 58.8

  • LensMountM12
    Illuminator
  • SupplementLight TypeIR
  • SupplementLight RangeUp to 30 m
  • SmartSupplement LightYes
  • ImageParameters SwitchSTD/HIGH-SAT
  • ImageSettingsBrightness;Sharpness;Mirror;AGC
  • FrameRate

    TVI:1080P@30fps, 1080P@25fps

    AHD:1080P@30fps, 1080P@25fps

    CVI:1080P@30fps, 1080P@25fps

    CVBS:PAL/NTSC

  • Day/NightModeAuto/Color/BW (Blackand White)
  • WideDynamic Range (WDR)Digital WDR
  • ImageEnhancementBLC;HLC;Global
  • NoiseReduction2D DNR
  • WhiteBalanceAuto/Manual
    Interface
  • VideoOutputSwitchableTVI/AHD/CVI/CVBS
  • Built-InMicrophoneYes
    General
  • Power12 VDC 25%, max. 3.7 W
  • MaterialMetal
  • Dimension58 mm 61 mm 158.6mm (2.28" 2.40" 6.42")
  • Approx. 292 g (0.64 lb.)
  • OperatingCondition-40 C to 60 C (-40 Fto 140 F), humidity 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
    WaterproofApproval
  • ProtectionIP66

Model:  1006511
Bar Code:  6941264052517
Part Number:  THC-T220-MC-WHITE-2.8
Brand:  Hilook By Hikvision
Form Factor:  Turret
Colour:  White
Max. Resolution:  2 MP
Camera Output Type:  BNC Coaxial
Camera Lens Width:  2.8 mm
Night Vision Type:  Mono
