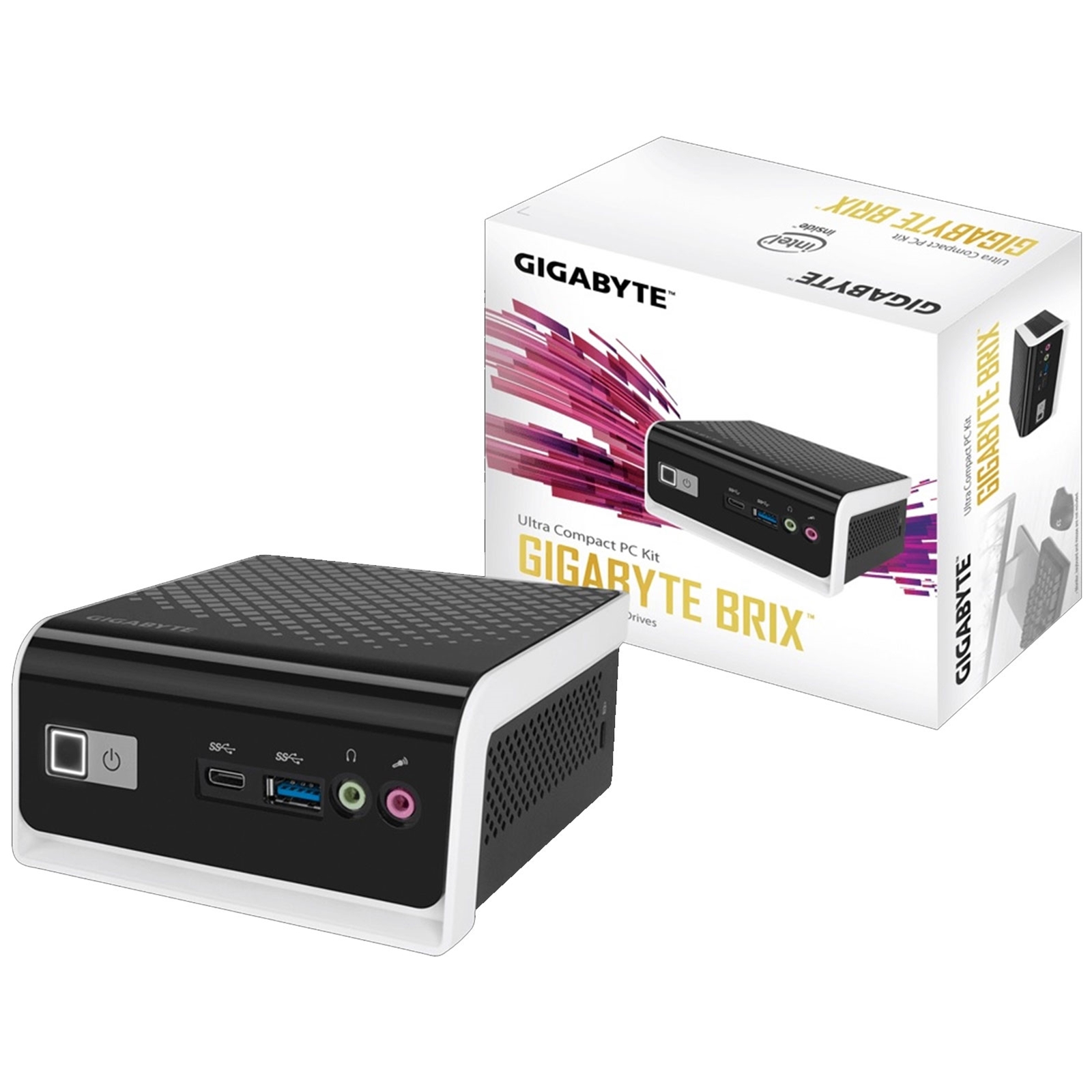

Gigabyte BRIX Intel Celeron N4000 2.6GHz Ultra Compact Barebone PC Kit Rev.1.0

Gigabyte BRIX Intel Celeron N4000 2.6GHz Ultra Compact Barebone PC Kit Rev.1.0
Our Price:  £138.15
(Inc. 20% VAT)



No stock

Gigabyte BRIX GB-BLCE-4000C Intel Celeron Barebone - requires hard drive (SSD/ HDD) & memory


Features 14nm Intel® N4000 to deliver to the most intuitive and integrated operating systems in the world
Supports 2.5" thickness 7.0/ 9.5mm Hard Drives (1 x 6Gbps SATA3)
Ultra compact PC design - 0.69L (56.1 x 107.6 x 114.4mm)
1 x SO-DIMM DDR4 Slots (up to 2400Mhz)
Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
HDMI plus D-Sub Outputs (Supports dual displays)
Gigabit LAN
Audio jack (Headphone & Microphone)
VESA mounting bracket (75 x 75mm + 100 x 100mm)
Fanless Design Provides Complete Silence

Additional Items Required with this product (not included):
* Storage (Example: Hard Drive)
* Memory
* Operating System


Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.

Intel® Celeron Processor
GIGABYTE BRIX supports Intel third-generation low-power dual-core SoC processors which feature power-efficient 6W Intel Celeron models. From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX a broad range of usage scenarios and the ultimate space flexibility. GIGABYTE BRIX is expected to deliver up to 23% improvement in productivity over previous generation.

Dual Display
With HDMI and VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment and home entertainment.

VESA Support
The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.


Dimension : 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")
Motherboard Size :100 x 105 mm
CPU : Intel® Celeron® Processor N4000, 2.6GHz, 2 core (TDP 6W)
Memory : 1 x SO-DIMM DDR4 slots upt 2400Mhz Max 8GB
LAN : Gigabit LAN (Realtek RTL8111HS)
Wifi Card : Intel® Dual Band Wireless-AC 3168
Graphics : Intel® HD Graphics 600
Audio : Realtek ALC891
VGA Resolution (Max.) : 1920 x 1200 @60 Hz
HDMI Resolution (Max.) : 3840 x 2160 @30 Hz
Expansion Slots : 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O
1 x USB3.0
1 x USB3.0 type-C
1 x Headphone Jack
1 x Microphone Jack

Rear I/O
2 x HDMI (1.4)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

Storage Supports 2.5" thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
Power Supply Input: AC 100-240V
Output: DC 19V2.1A
VESA Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS WIN10 64bit
Environment System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

Model:  PBGIG-BLCE4000RC
Bar Code:  4719331281779
Part Number:  GB-BLCE-4000RC
