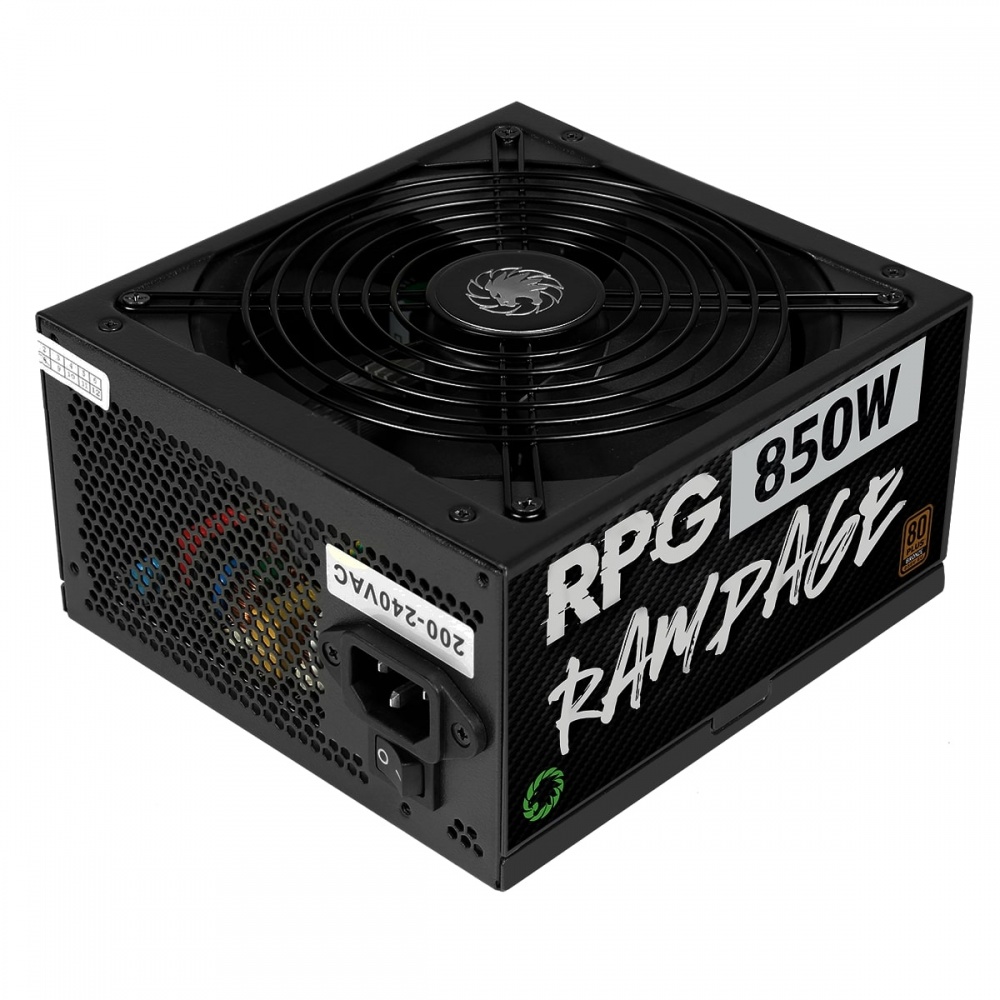

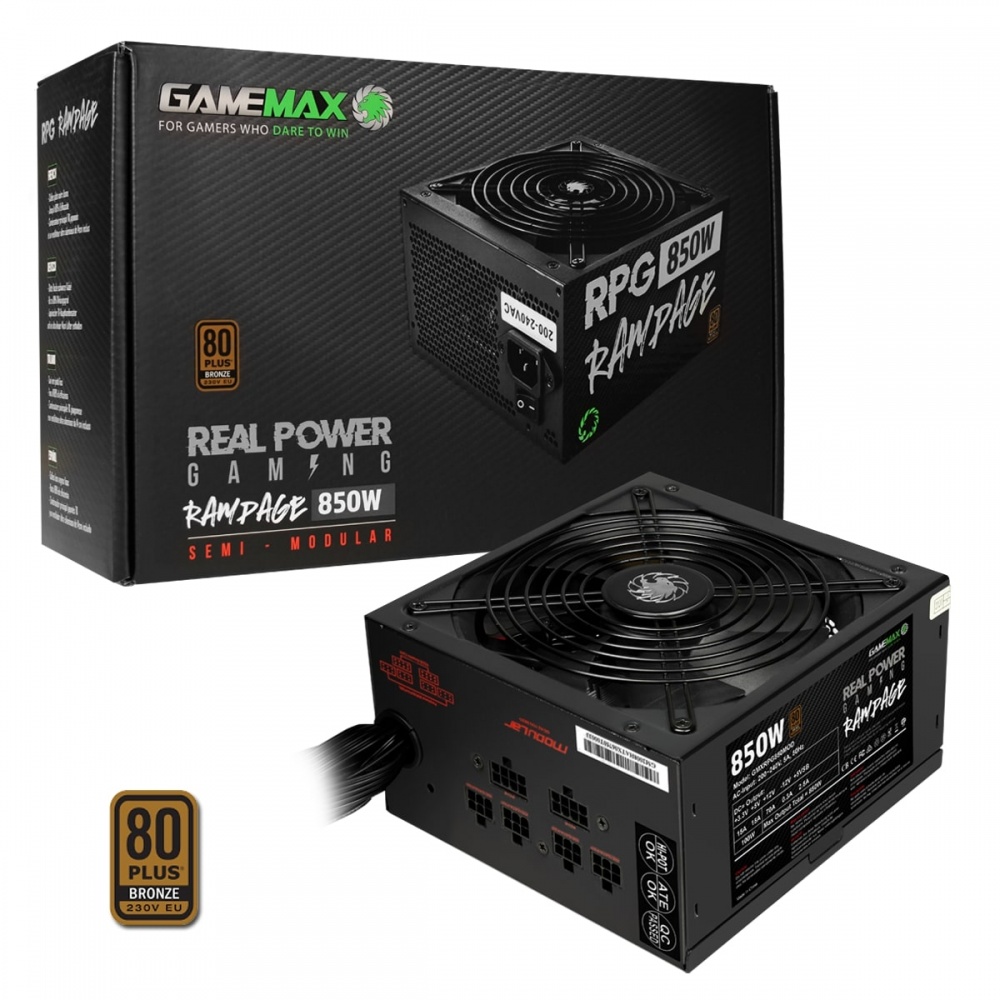

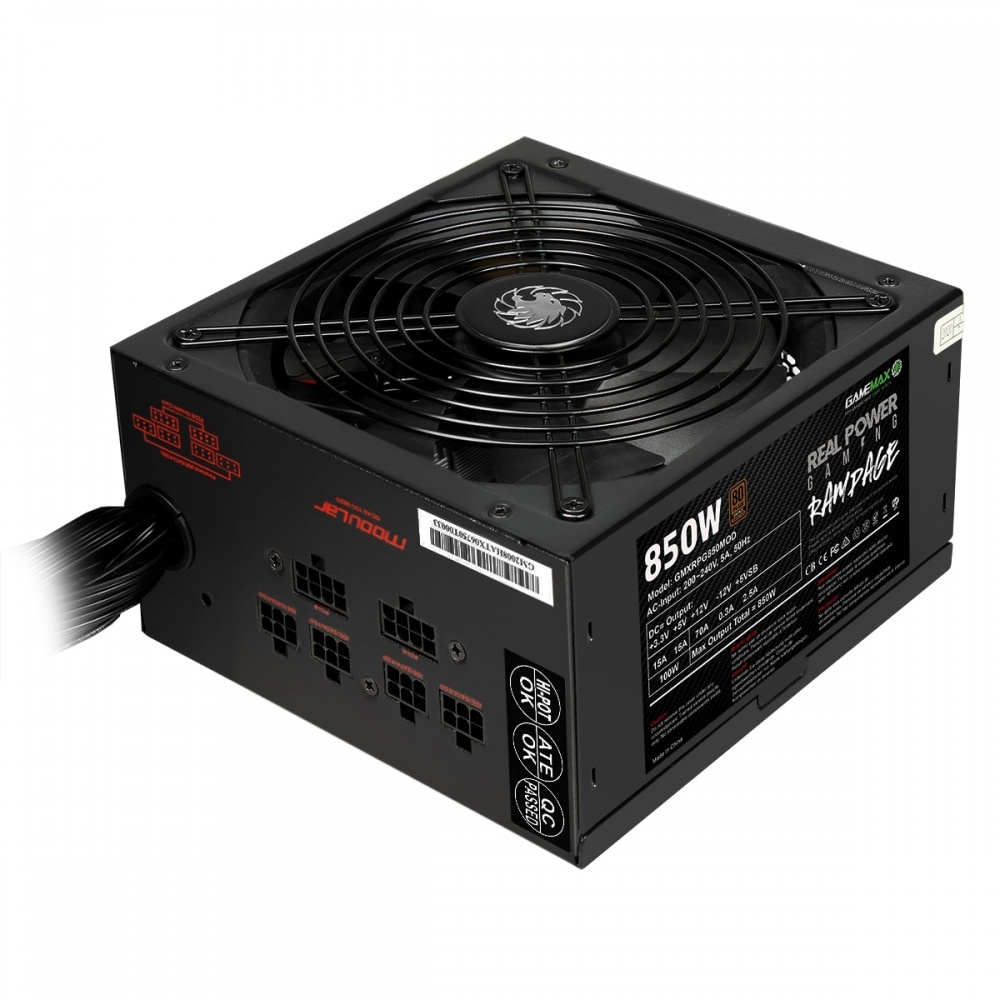

GameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power Supply

GameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power Supply
  Zoom
GameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power SupplyGameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power SupplyGameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power Supply
GameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power SupplyGameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power SupplyGameMax RPG Rampage 850W 80 PLUS Bronze Semi-Modular PSU Power Supply
Our Price:  £54.95
(Inc. 20% VAT)

Availability:



No stock



GAMEMAX

The Rampage PSU Range is the latest PSU series to be launched byGameMax. The Rampage Range is available in a flexible APFC Non-Modular(500W, 600W, 700W & 800W) and an APFC Semi-Modular power supply(750W & 850W) variants.

The GameMax Rampage is built using the highest quality components todeliver 'Real Power Gaming' to your PC. Not only is this power supplyimpressive in it's performance but the components used in this powersupply are components normally found in top tier brands withoutbreaking the bank.

An excellent choice for basic systems and Gaming Rigs alike, or if youare simply looking to upgrade your current system, ideal for first timeand experienced builders this is a power supply that is reliable,efficient and powerful enough to be the mainstay in your chosen build.

Key Features

  • Semi-Modular - The 850W Rampage is the second power supply to beadded to the Rampage series with a Semi-Modular cable management designensuring building or upgrading is made more efficiently andguaranteeing a clean looking PC.
  • 80 Plus Bronze Certification - The Rampage Range are 80 PlusBronze 230V certified achieving an efficiency of up to 88% at a load of50%.
  • Japanese TK Main Capacitor - With a Japanese TK main capacitorincluded in the Rampage delivers a reliable life expectancy and qualityassurance.
  • Power - The Rampage Range offers some Real Gaming Power, with asingle 12V rail for high compatibility and extreme high current output.The 80 Plus 230V EU Bronze efficiency enables your high end componentsto work to their full potential.
  • 14cm Cooling Fan - An ultra silent 14cm cooling fan ensures theRampage delivers not only silent cooling but cooling that is effectiveguaranteeing a PSU that will run safely, smoothly and will last thedistance.
  • High-End Compatibility - Four 6 + 2 PCIe and dual 4 + 4connectors have been added for compatibility to high end graphics cardsand CPU's.
  • Flat Black Cables - Improve your aesthetics flat black cableshave been used to enable builders to easily manage and save spaceimproving airflow and creating a great looking PC.
  • All Black Look - Black is the colour, with the all black finishand the flat black cables give your gaming PC a clean professional look.
  • Warranty - The GameMax Rampage PSU range comes with 2 Yearswarranty.

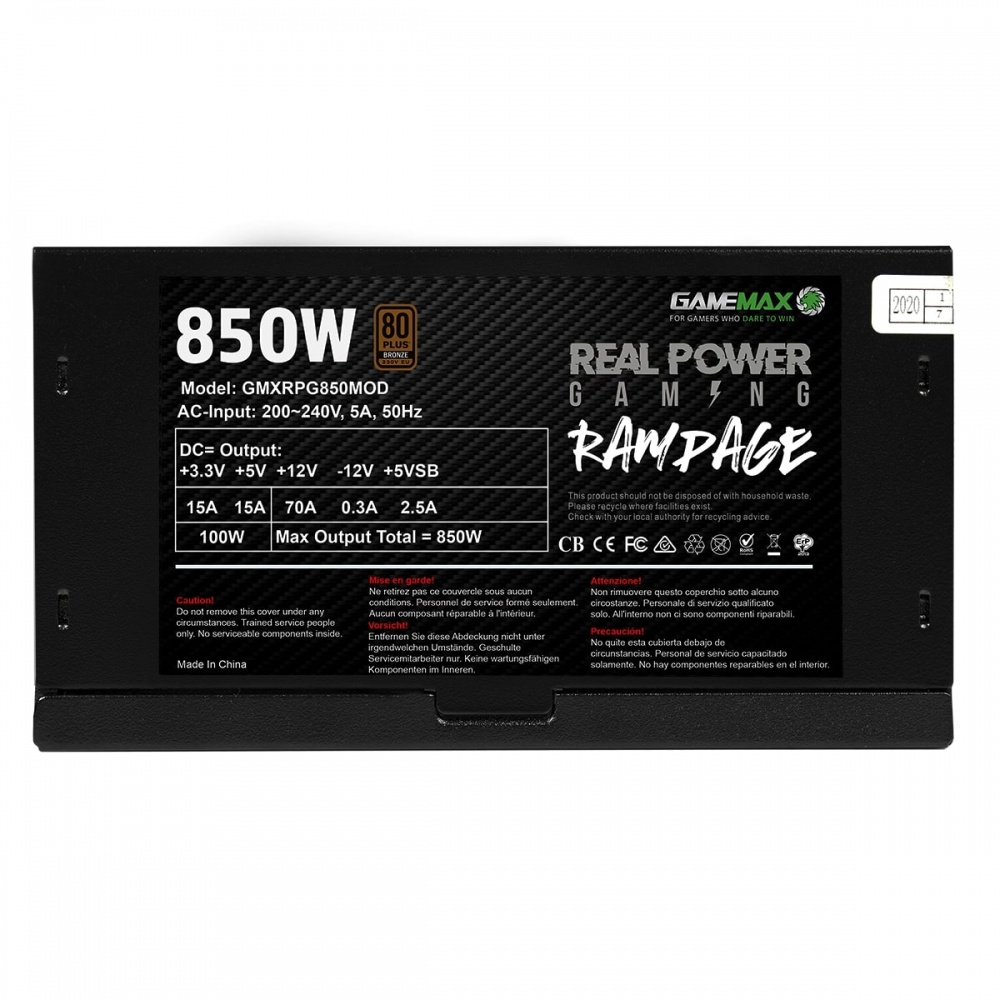

PSU Specifications


AC INPUT: 200-240VAC 5A 50Hz
DC
Output
Max    +3.3V    +5V   +12V1    -12V    +5VSB
850w    15A    15A     70A         0.3A   2.5A

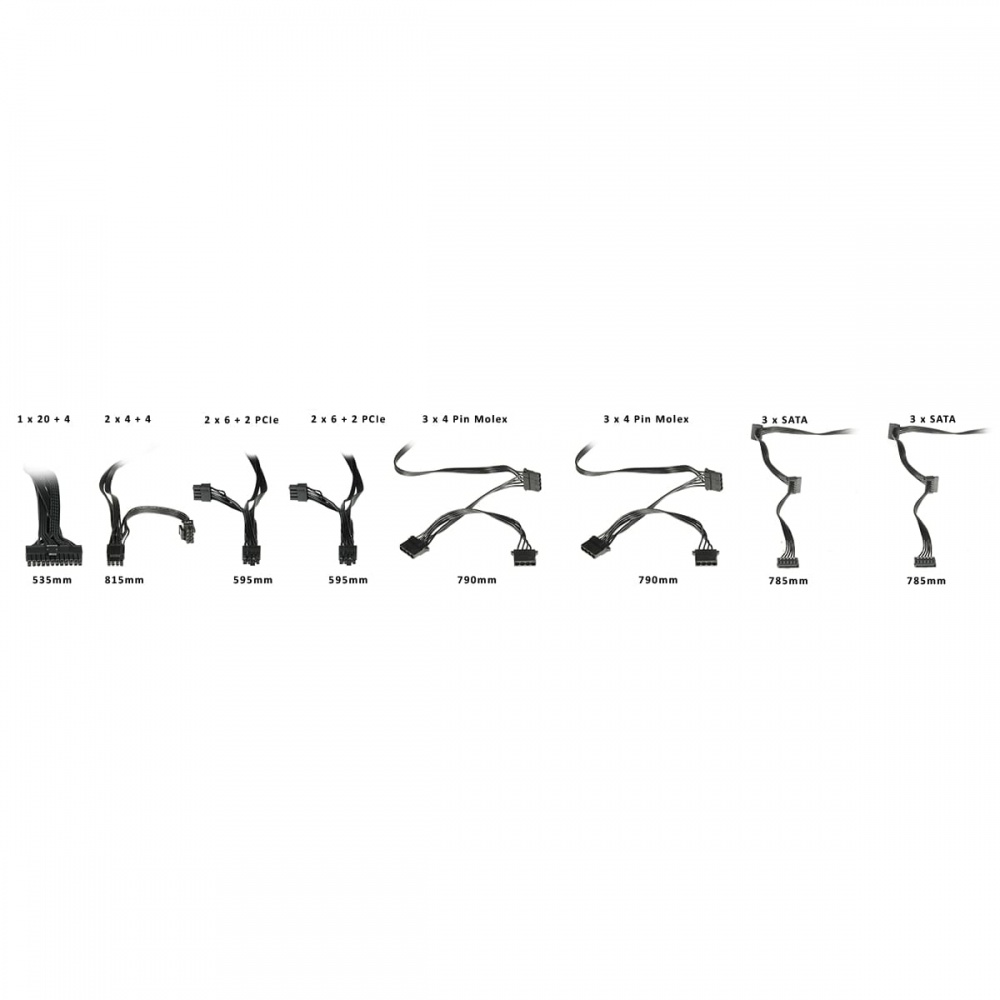

Connectors


  •     20+4 Pin Main Connectors: 1
  •     4+4 Pin 12V Connectors: 2
  •     SATA Connectors: 6 (Modular)
  •     4-Pin Molex Connectors: 6 (Modular)
  •     6+2 Pin PCI-e Connectors: 4 (Modular)


Detailed Specifications


  • Dimensions:    150mm x 87mm x 160mm (W x H x D)
  • Input Voltage:    200-240VAC
  • Input Current:    5A
  • Input Frequency Range:    50Hz
  • PFC:    Active PFC
  • Power Good Signal:    Approx. 300ms
  • Hold Up Time:    10ms
  • Efficiency:    85%
  • MTBF:    100,000 Hours
  • Protection:    OVP / OPP / UVP
  • Power:    850W
  • Operation Temperature:    0-30°C
  • Safety:    CE / FCC / CB
  • Cooling:    14cm Cooling Fan
  • Noise:    40dBA
  • 80 Plus Certified:    Yes - 80 Plus Bronze

Model:  1006303
Bar Code:  5055492409522
Part Number:  GMXRPG850MOD
Brand:  GAMEMAX
80 Plus Rating:  80 Plus Bronze
Wattage:  850 W
PSU Form Factor:  ATX
Modular Cable:  Semi-Modular
Colour:  Black
LED Colour:  None
