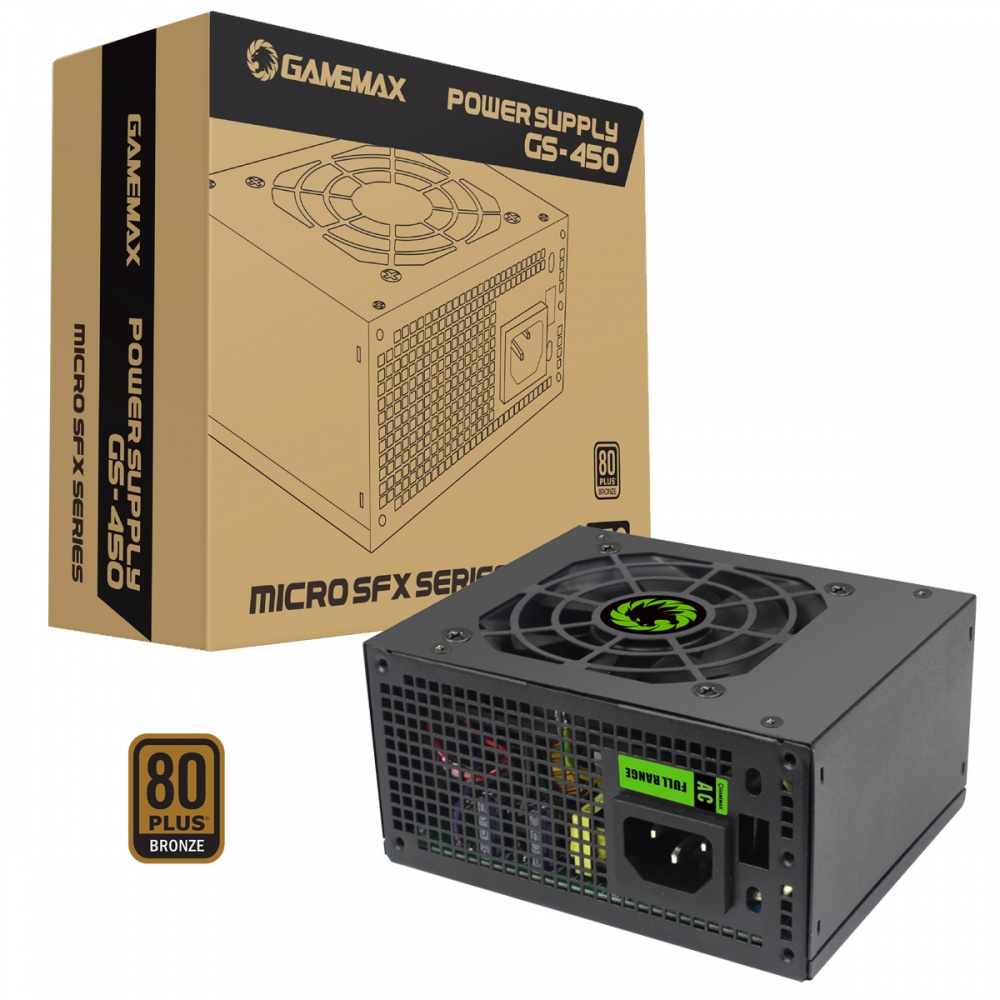

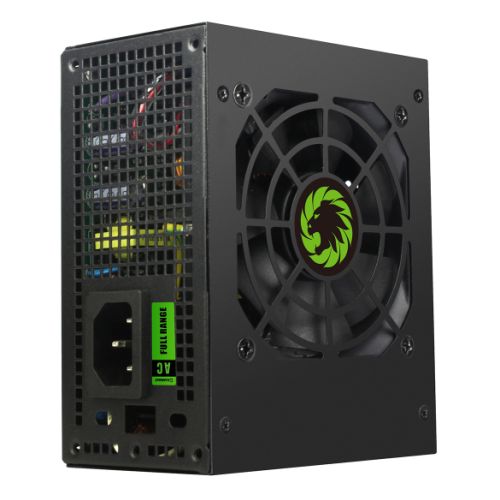

The GS-450 is the latest power supply to be added to the GameMax SFX Series focusing on users who are using Mini-ITX cases, custom built computers & mini-servers. The dimensions of the PSU are (D) 101mm x (W) 125mm x (H) 64mm as standard profile.
Constructed with components & technology found in ATX high performance power supplies. The GS-450 is compliant with 80 PLUS Bronze efficiency, superior voltage regulation & auto fan speed control.
Add a power supply that guarantees a solid performance and increased reliability to the SFX small form factor chassis and get a premium power supply with up-to-date features.
Key Features - Active PFC and Full Range AC Input (100-240V).
- The Micro SFX design made for Mini-ITX, custom built PCs & mini-servers.
- High airflow and low noise 80mm ultra fan design thanks to the smart auto fan speed control.
- High Efficiency up to 85 percent.
- Safety and EMC certified by CE.
- Fully protection functions with OVP / UVP / OTP / OCP / OLP / OPP / SCP.
- Warranty - The GameMax GS-450 PSU comes with 2 year warranty for units bought after 1st Jan 2023.
PSU SpecificationsAC INPUT: 100-240 VAC 7-3.5A 60-50Hz
DC Output+3.3V +5V +12V1 -12V +5VSB
15A 15A 28A 0.5A 2.5A
Max. 450W

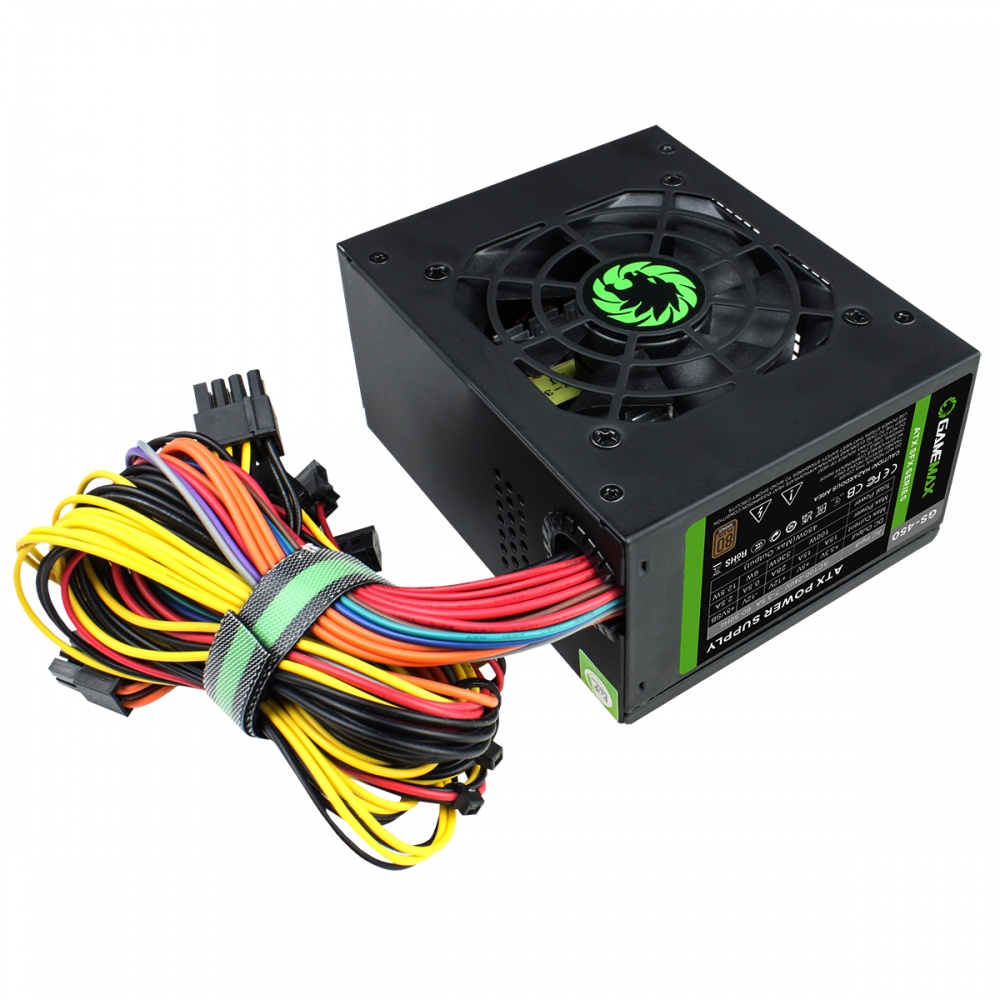

Connectors - 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 3
- 4-Pin Molex Connectors: 1
- 6+2 Pin PCI-e Connectors: 1
Detailed Specifications - Dimensions: 125mm x 64mm x 101mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 7-3.5A
- Input Frequency Range: 60-50Hz
- PFC: Active PFC >.99
- Power Good Signal: 100-500ms
- Hold Up Time: >17ms
- Efficiency: > 81% (85% max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP / OTP / OCP / OLP / OPP / SCP
- Power: 450W
- Operation Temperature: 0-40°C
- Safety: CE / FCC / CB / UKCA
- Cooling: 80mm Ultra Silent Fan
- Noise: <25dBa
- 80 Plus Certified: Yes - 80 Plus Bronze
