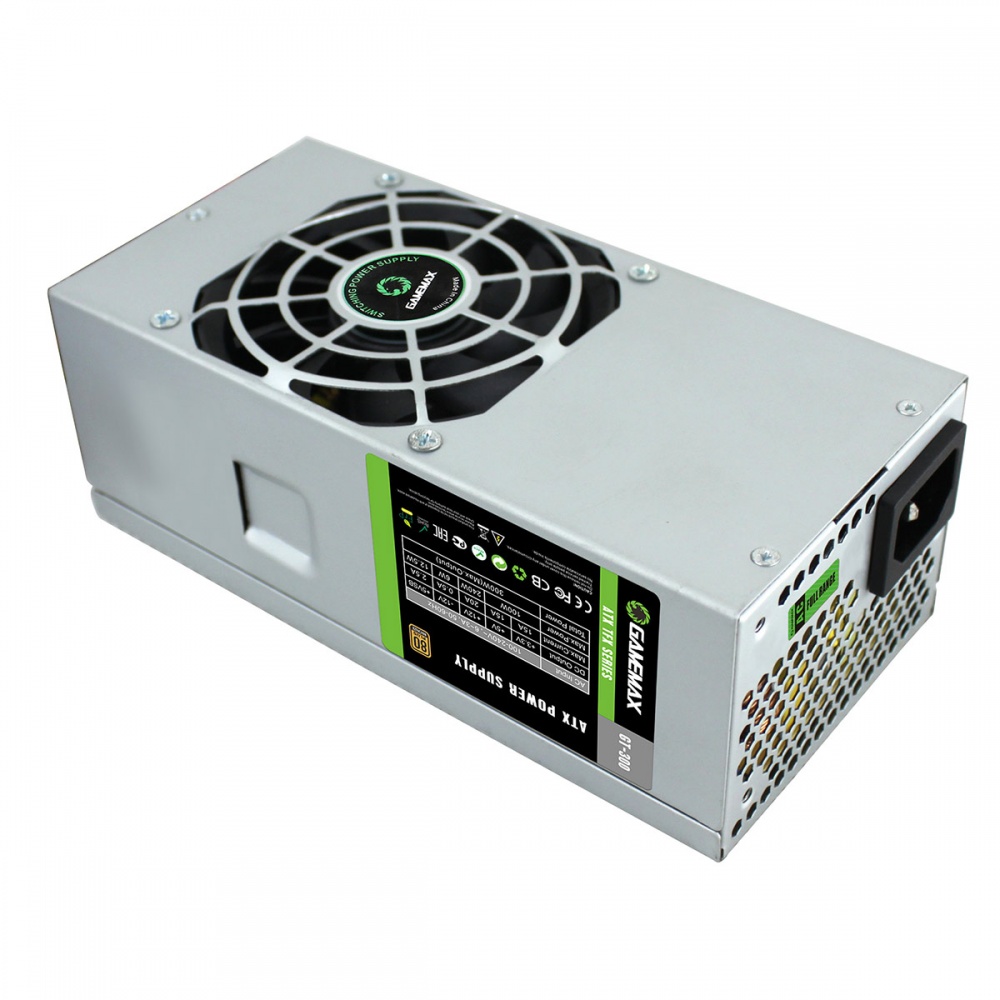

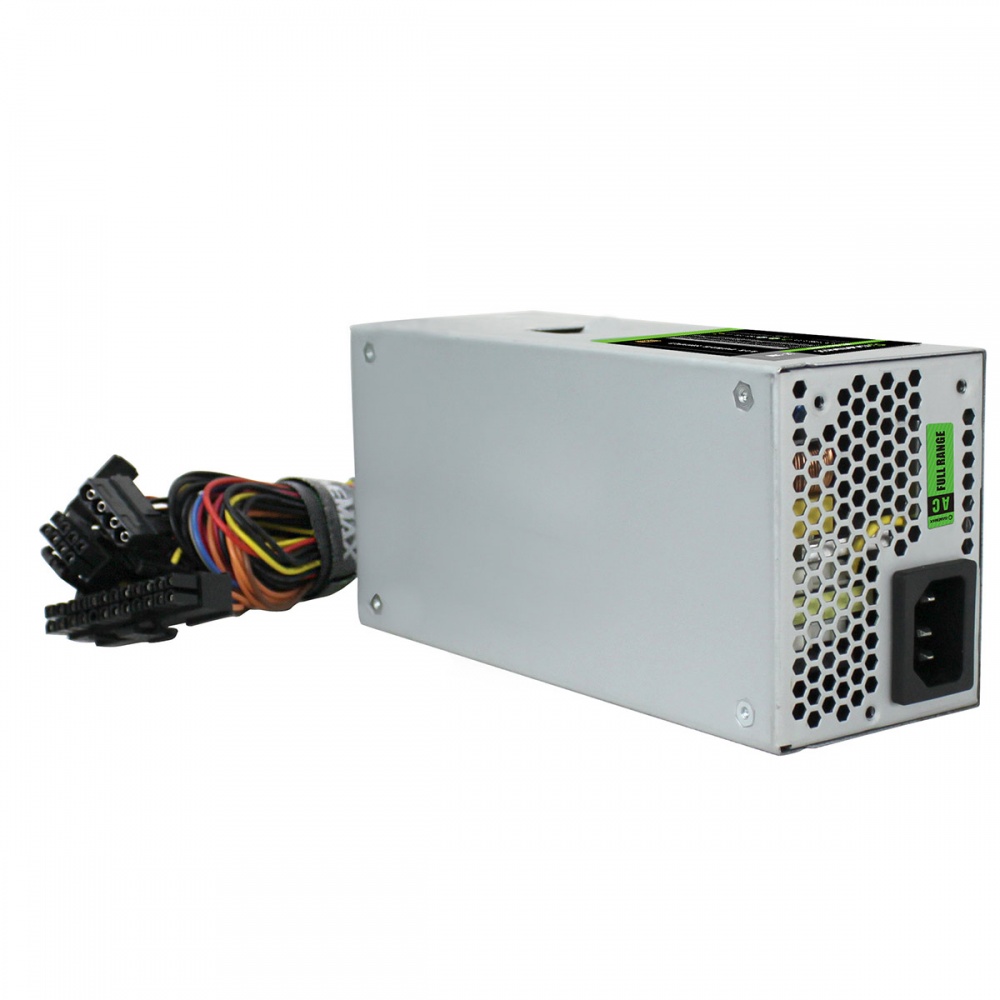

GameMax 300W TFX Size Power Supply Mini PSU For DELL HP Slimline PCs

GameMax 300W TFX Size Power Supply Mini PSU For DELL HP Slimline PCs
  Zoom
GameMax 300W TFX Size Power Supply Mini PSU For DELL HP Slimline PCsGameMax 300W TFX Size Power Supply Mini PSU For DELL HP Slimline PCsGameMax 300W TFX Size Power Supply Mini PSU For DELL HP Slimline PCs
Our Price:  £34.95
(Inc. 20% VAT)

Availability:



In stock

+


GAMEMAX

The GameMax GT-300W TFX offers you the most suitable cost/performanceratio and is certified for 80 PLUS Bronze, this active PFC unit runs ata max. of 85 efficiency, making it the best choice for a systembuilder. The 12V CPU power is available for a high-end gaming system(with a 4 + 4 CPU connector), with its 3 x L shaped SATA connectorsmeaning you can use it in a compact desktop chassis. Finally there isfull electrical protection and official safety is promised by GameMax.

Key Features

  • Compatible with ATX 12V 2.3
  • 3 x L-Shaped SATA Cables for easier installation in acompact desktop chassis
  • High-end SECC 0.6mm casing
  • High-Efficiency 80+ 85 Certified
  • Low Noise 8cm Fan with intelligent fan speed control
  • Honeycomb ventilation design for optimal heat dissipation
  • Active Power Factor rate up to 0.99
  • OPP / OVP / UVP / SCP electrical protection included
  • Safety / EMI Approvals: CE, FCC, CB
  • Warranty - The GameMax GT300 PSU comes with 2 year warrantyfor units bought after 1st Jan 2023.


PSU Specifications


AC INPUT: 100-240 VAC 63A 50-60Hz
DC
Output Max
+3.3V    +5V   +12V1    -12V   +5VSB
15A    15A   20A    0.5A   2.5A

Max :300W


Connectors


  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors: 1
  • SATA Connectors: 3
  • 4-Pin Molex Connectors: 1


Detailed Specifications


  • Dimensions: 85mm x 65mm x 175mm (W x H x D)
  • Input Voltage: 100-240 VAC
  • Input Current: 63A
  • Input Frequency Range: 50-60Hz
  • PFC: Active PFC >.99
  • Power Good Signal: 100-500ms
  • Hold Up Time: 1ms-40ms
  • Efficiency: > 81% (85% max)
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP / OPP / SCP
  • Power: 300W
  • Operation Temperature: 0-40C
  • Safety: CE / FCC / CB
  • Cooling: 8cm Fan
  • Noise: < 17 dBA
  • 80 Plus Certified: Yes - 80 Plus Bronze

Model:  1004141
Bar Code:  6931858750035
Part Number:  GT300
Brand:  GAMEMAX
80 Plus Rating:  80 Plus Bronze
Wattage:  300 W
PSU Form Factor:  TFX
Modular Cable:  None
Colour:  Silver
LED Colour:  None
