Game Max RGB series power supply offers Value and Performance. They arethe most suitable for cost/performance ratio and is the best choice fora system builder. The 12V CPU power and modern PCIe 6 + 2 Pinconnectors are ready for high-end gaming systems. There is fullelectrical protection and official safety and also the quality promiseby Game Max.
RGB Modes operationinstructions:1. With the memory function, turn on the power supply again the initialstate is the same as the state of when the PSU was turned off.
2. Press the RGB controller switch successively, the lights change tobe Red, Blue, Green, White, Yellow and Purple, breathing lights and thecolours can mix mode in turn.
3. Breathing light mode: Make the lights bright gradually in twoseconds, make the lights dim gradually in two seconds, play cycle fromwhite colour to purple colour.
4. Colour mix mode: the lights change from white to purple colour inturn and keep 0.5 Seconds at the peak of each colour and it takes 4Seconds between the two colours.
5. In any mode, press the RGB controller switch for three seconds, thelights go out.
Key Features - Powerful single +12V rails offers stable DC output andsupports high-end graphic cards and PC systems.
- 80+ Gold APFC, High-Efficiency and 90+ Certified.
- Active Power Factor rate up to 0.9.

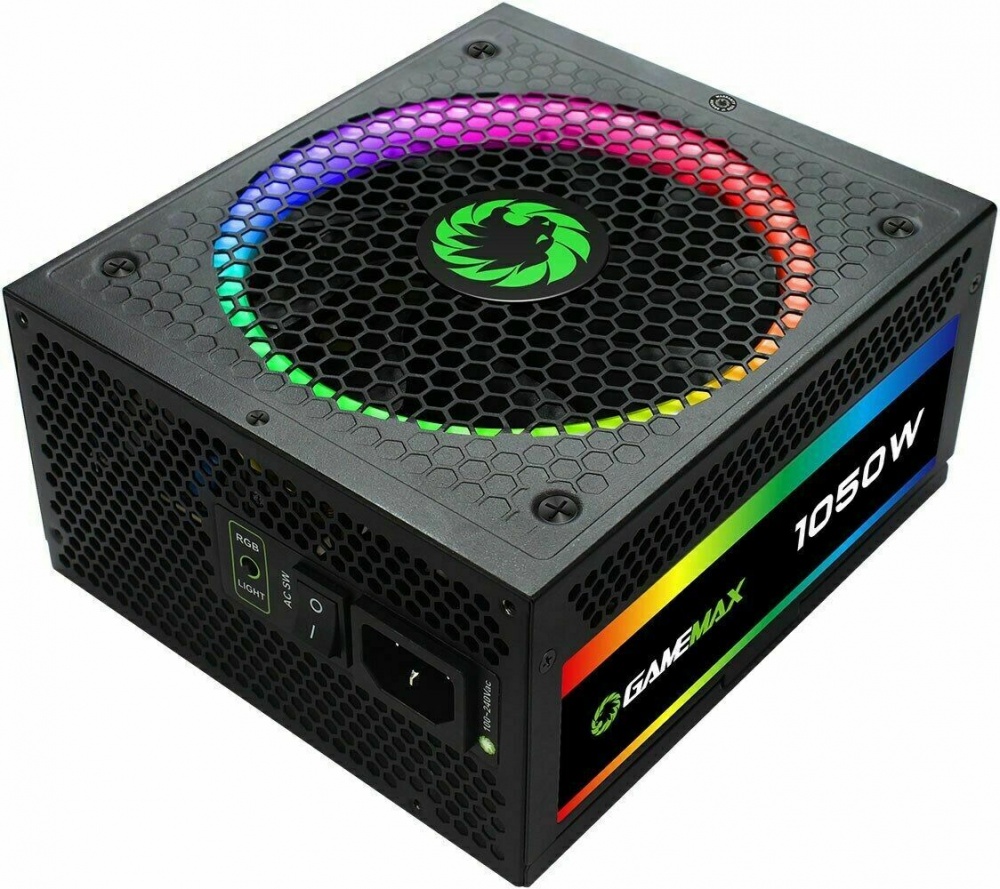

- RGB Ring Fan on the top, RGB Illuminated logo on the sideand the lights are coming from the top and side. The Colours include:Red, Blue, Green, White, Yellow and Purple.
- Honeycomb ventilation design for optimal heat dissipation.

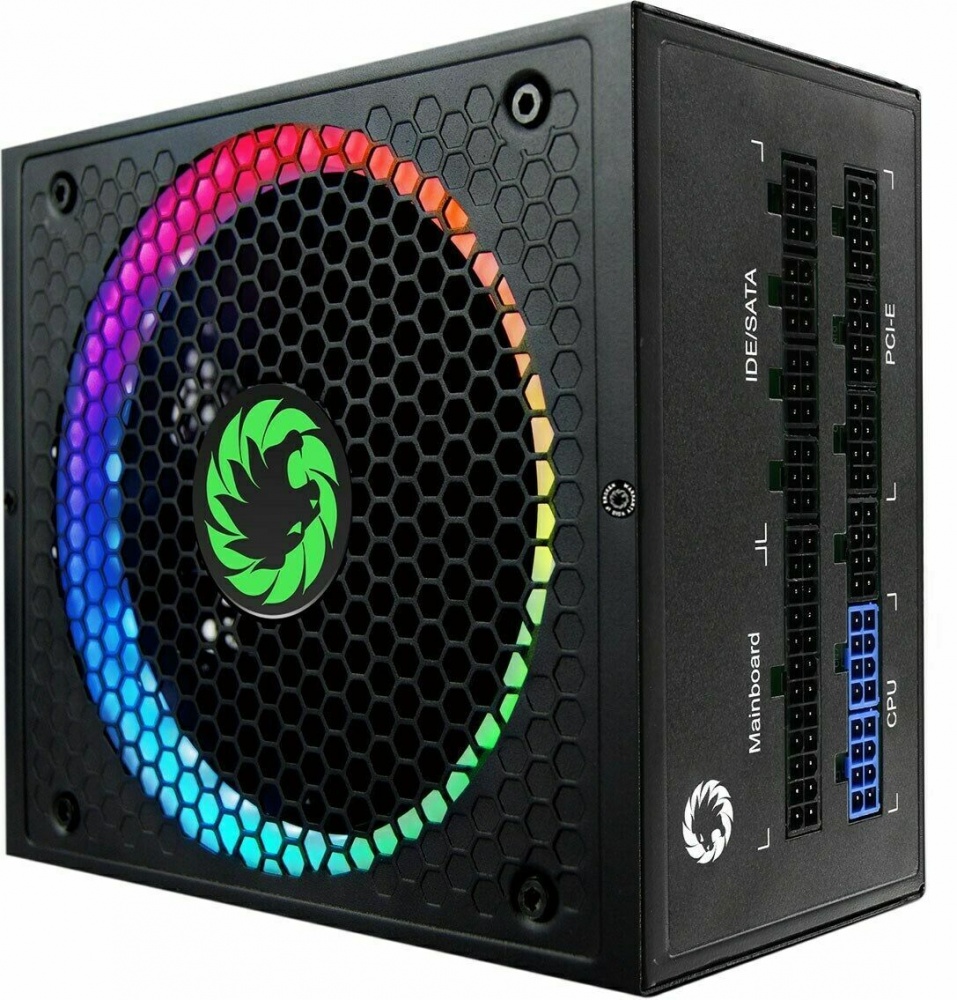

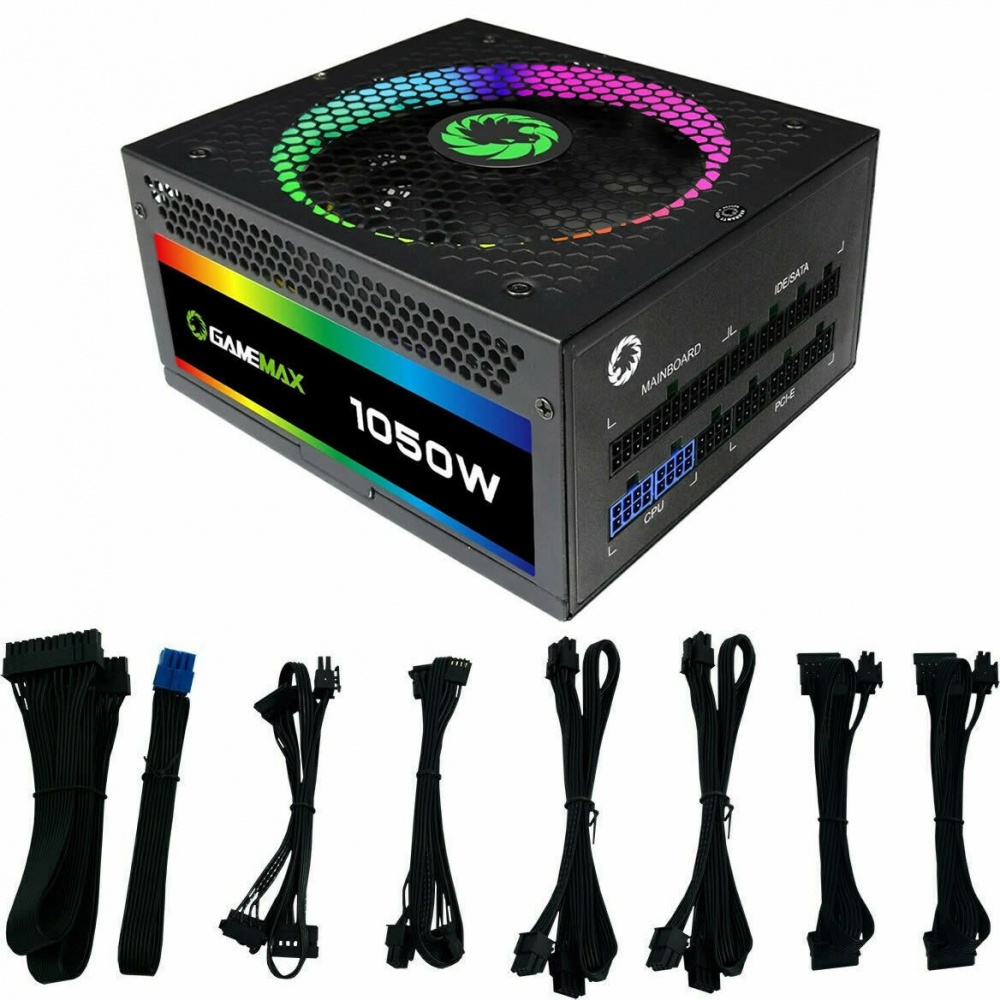

- Full modular output connector.

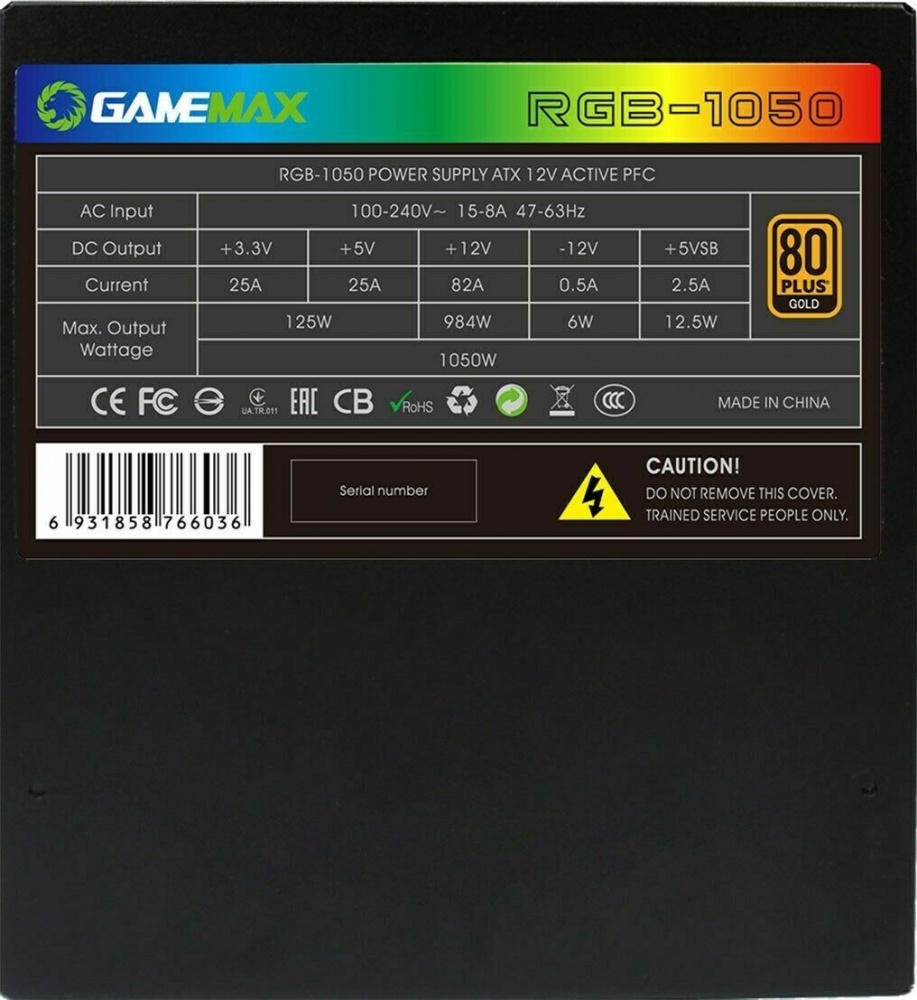

PSUSpecifications | ACINPUT: 100-240 VAC 6A/12A 50-60Hz |
DC
Output
Max | +3.3V | +5V | +12V1 | -12V | +5VSB |
| 25A | 25A | 82A | 0.5A | 2.5A |
| 1050W |
Connectors  | 20+4 Pin MainConnectors:
1
|
 | 4+4 Pin 12VConnectors:
1
|
 | SATAConnectors:
10
|
 | 4-Pin MolexConnectors:
3
|
 | 6+2 Pin PCI-eConnectors:
4
|
DetailedSpecifications | Dimensions: | 150mm x 85mm x 165mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 6A/12A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | >88% |
| MTBF: | 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 1050W |
| Operation Temperature: | 0-40°C (Nominal Input Voltage) |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | < 17 dBA |
| 80 Plus Certified: | Yes - 80 Plus Gold |
