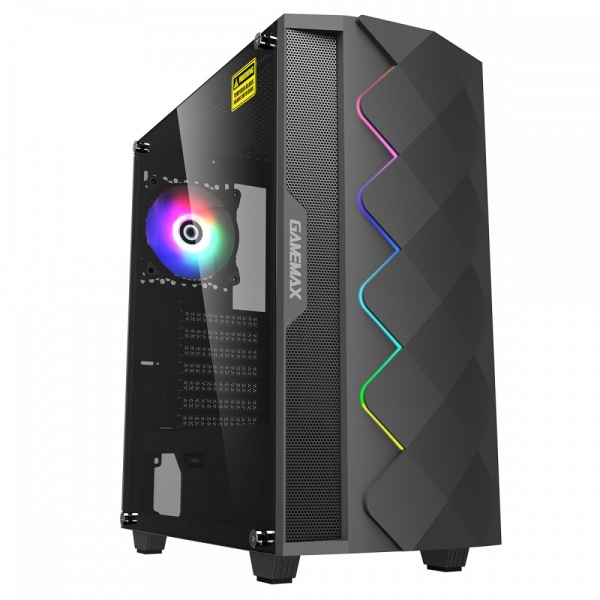

The GameMax Diamond Mid-Tower gaming case is available in black orwhite, designed to make building easier, this case is finished with apremium design and considered air flow vents for those gamers wantingto go to the next level without breaking the bank.

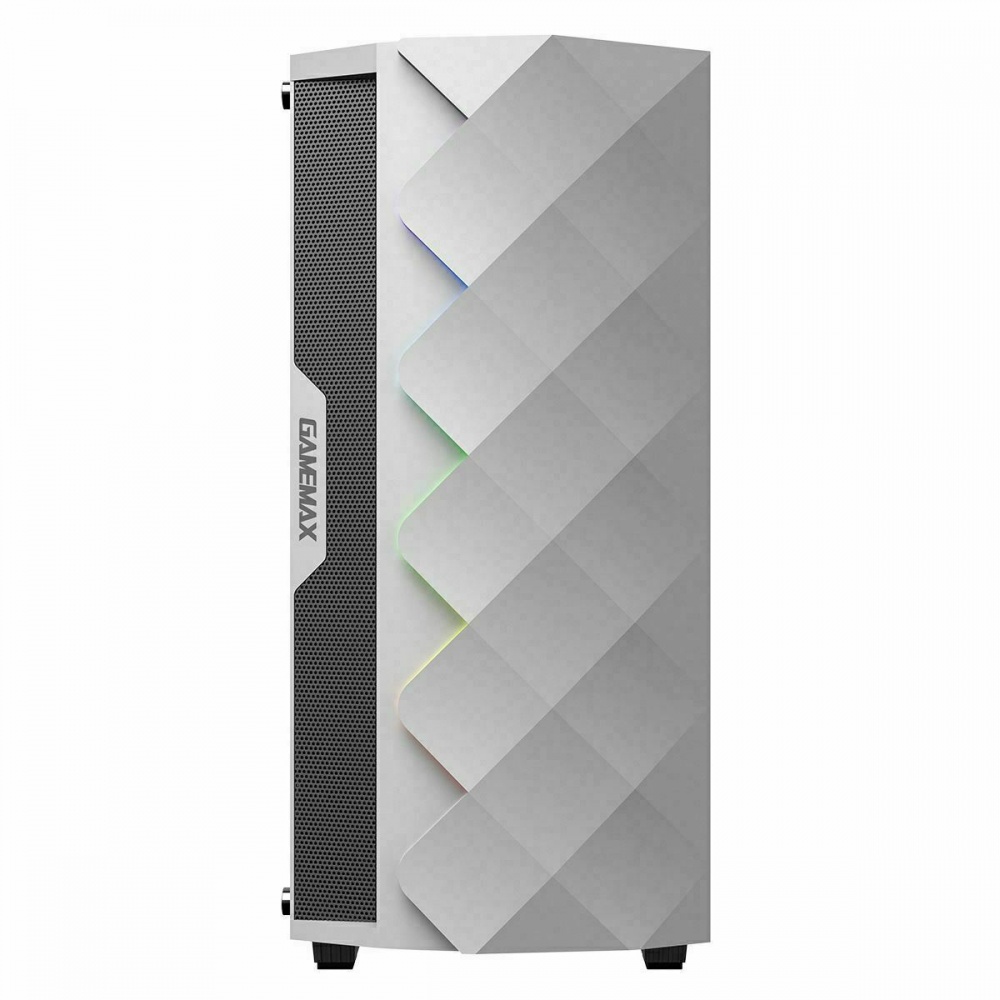

The Diamond’s striking front panel offers fantastic air flow andstunning lighting effects with the built in ARGB strips and angledpattern to cast game changing shadows. Structured to improve yoursystems cooling capabilities, a mesh grill runs down the left side ofthe front panel and allows your fans to take in as much air as itneeded.
Synchronise your fan and RGB LED strip using the 3 Pin AURA male andfemale connectors, once connected you can easily change the colour modeby using the LED button.

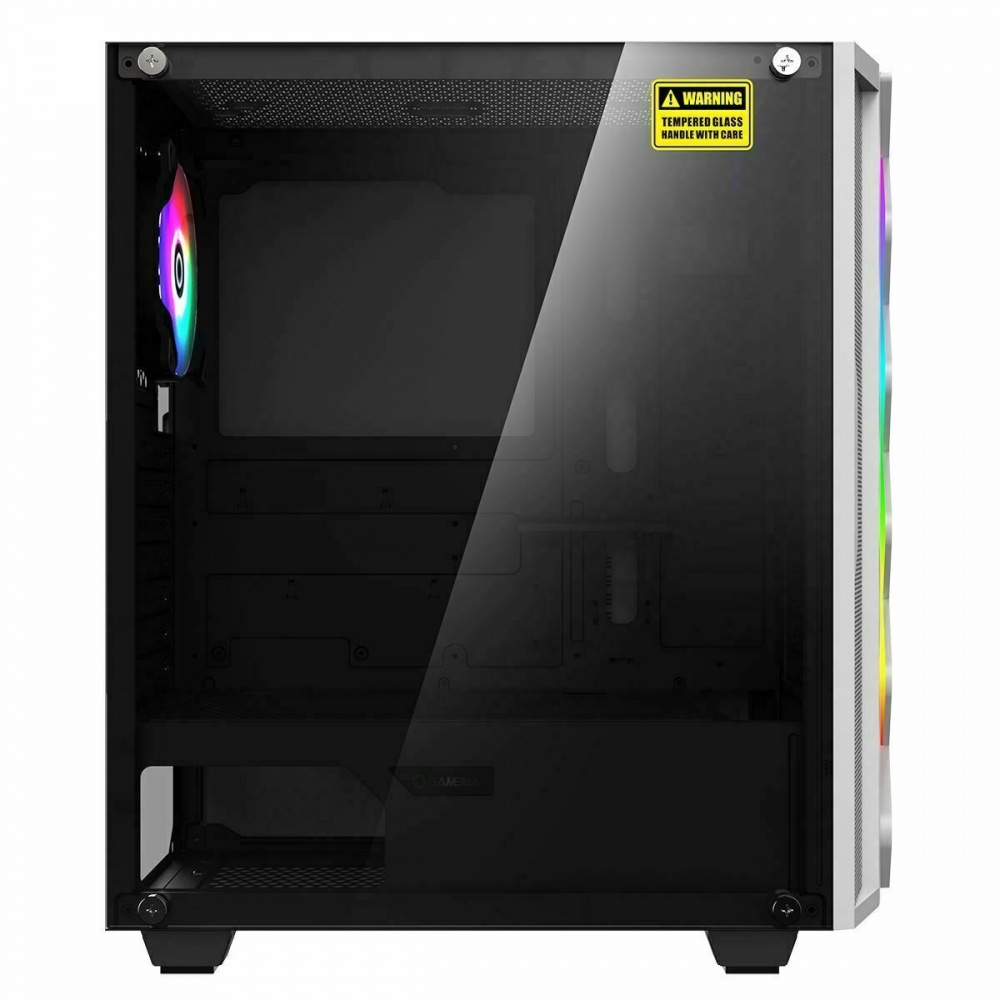

The left side panel is made of 3mm, edge to edge, tempered glassallowing you to show off your build and intelligent lighting.
The Diamond has a full-length PSU shroud, separated HDD bays and plentyof cut out holes enabling exceptional cable management, you can nowcreate a clean build that’s easy to manage.
In line with the GameMax ethos this case offers style, performance andthe ultimate experience.Compatible with theFollowing Fans
(1 x RGB fan included)
The GameMax White Diamond is compatible with the following fans:
Compatible with theFollowing Hubs
- GameMax Mirage Dual-Ring Rainbow RGB 120mm Fan
- GameMax Mirage White Fins Dual-Ring Rainbow RGB120mm Fan
- GameMax Razor 120mm Rainbow ARGB Fan
- GameMax Velocity 120mm Rainbow ARGB Fan
- GameMax ARGB 3 In 1 Kit
The GameMax White Diamond is compatible with the following hubs:
- Spectrum ARGB Hub
- GameMax ARGB Fan Hub

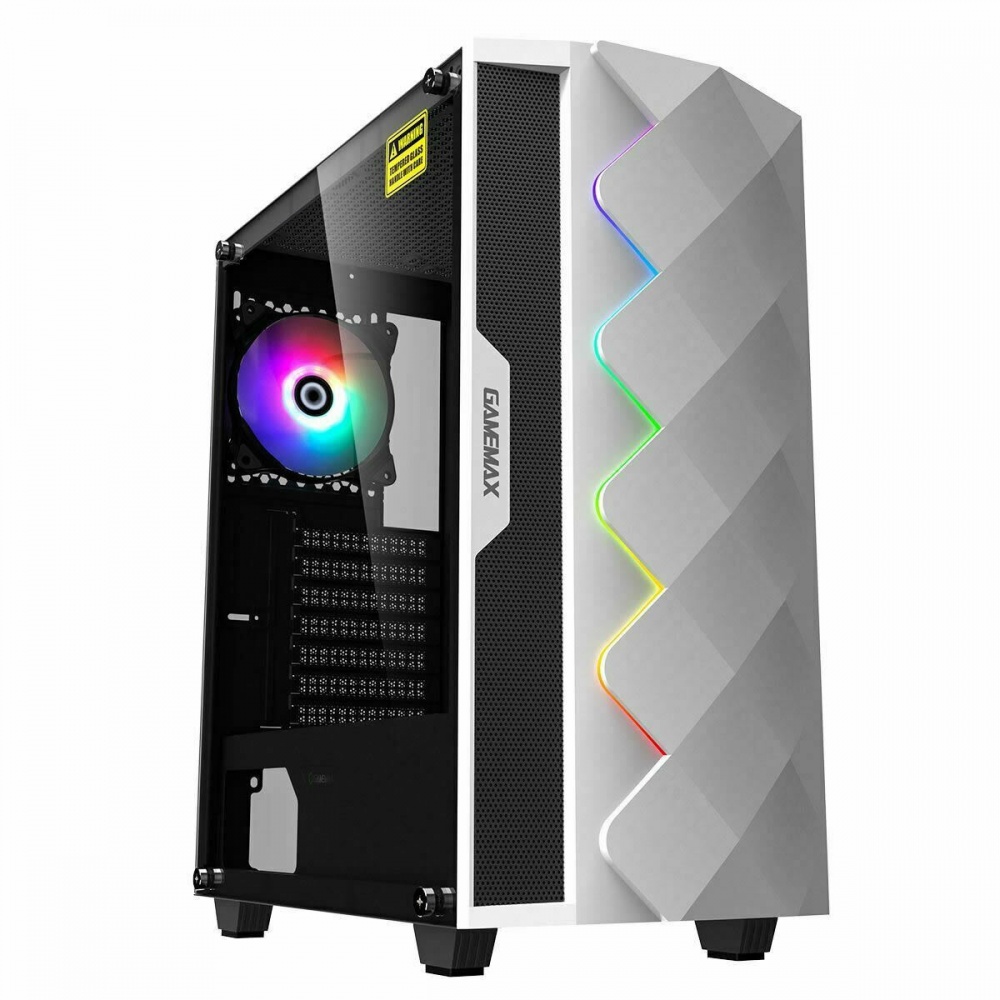

- Design - The Diamond is a brilliantly designed Mid-Tower PCgaming case with room for an ATX motherboard, an all black or whitechassis featuring a unique look. The front panel with a Diamond effectand the built in LED strip along with a rear ARGB fan makes the Diamonda real spectacle in any environment.
- Excellent Airflow - Excellent cooling options are on offerin the Diamond with room to mount a total of eight fans and room tomount water cooling radiators on the front and top, your case will haveno problem cooling those high end components.
- Easy Connection - Easily sync and control your ARGB fan andARGB strip using the 3 Pin ARGB male and female connectors and SATA forpower, once connected easily change using the LED button on top of theDiamond.
- Tempered Glass - A 3mm full left side tempered glass panelto show off your build from all angles.
- Easy Build Design - Get ready to build straight out of thebox with an easy build design. A full length PSU shroud and plenty ofcut outs, four in total makes cable management no problem and a GPUbracket included, this case really could not be simpler to build in.
- Chassis Dimensions (Excluding Fascia /Panels): (W) 207 x (H) 465 x (D) 370mm
- PSU max. Length (mm): 210mm
- Additional Fan Support:
- PSU Shroud: Space For 2 x120mm Fans
- Fan Information:
- Rear Fan Powered Via: 3 PinFan Connector
- Rear Fan LEDs Powered Via: 3 Pin ARGB
- Packaging Type: EPE Foam
- Packaging Thickness: 26.30mm
- Form Factor: Midi Tower
- Motherboard Support: ATX,Micro ATX, Mini ITX
- PSU Support: Standard ATX
- PSU Location: Bottom
- Gaming Case: Yes
- Water Cooling: Water CoolingReady!
- Supported Radiator Size: 240mm
- Supported Radiator Positions: Front, Top
- Body Material: 0.5mm SPCC
- Front Bezel Material: ABS
- Side Panel: Tempered Glass
- Internal Cable ManagementDepth: 23mm
- External Bays:
- Internal Bays: 3 x 3.5”Internal
- 2 x 2.5” Internal
- Drive Bay Notes: 1 x 2.5"& 3.5" Shared
- Expansion Slots: 7 x Full Size
- Cooling Front: Space For 3 x120mm or 2 x 140mm Fans
- Cooling Top: Space For 2 x120mm or 2 x 140mm Fans

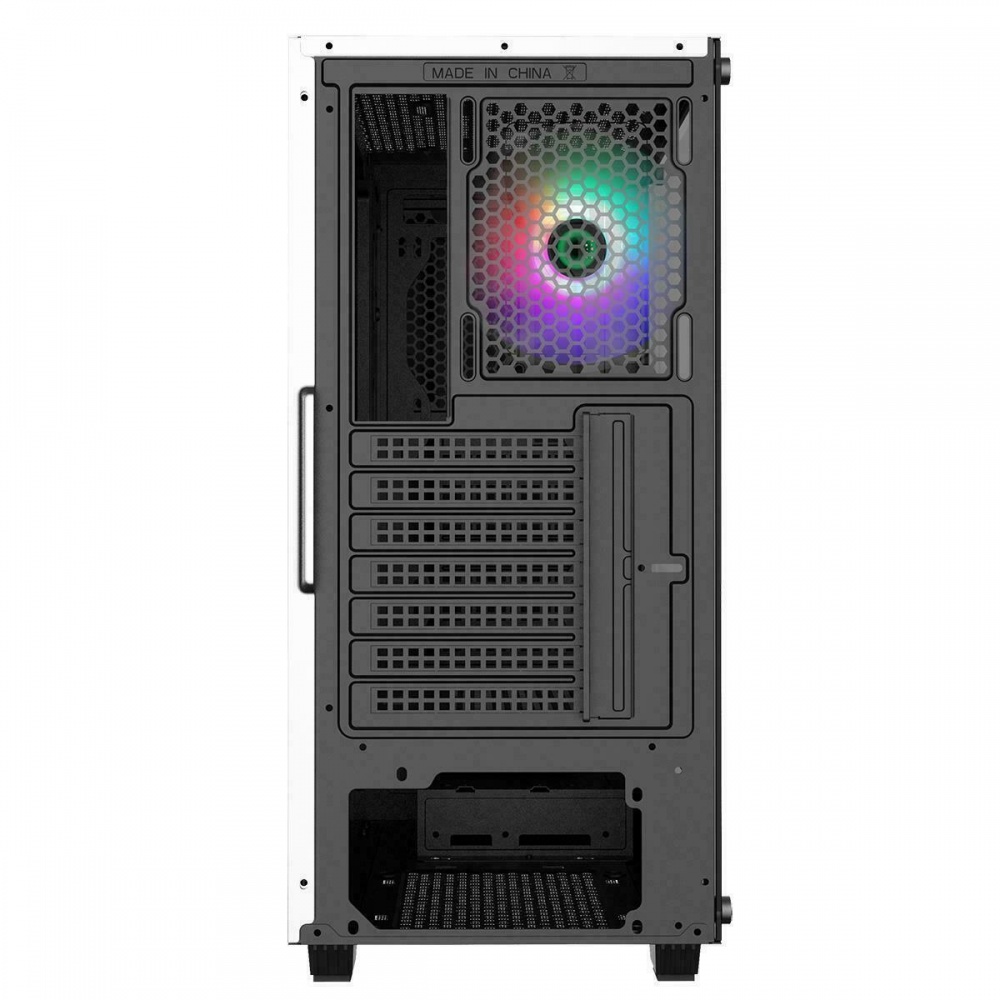

- Cooling Rear: Space For 1 x120mm Fan (1 x 120mm ARGB Fan Included)
- Cooling Side: None
- Cooling Bottom: Space For 2 x120mm Fans

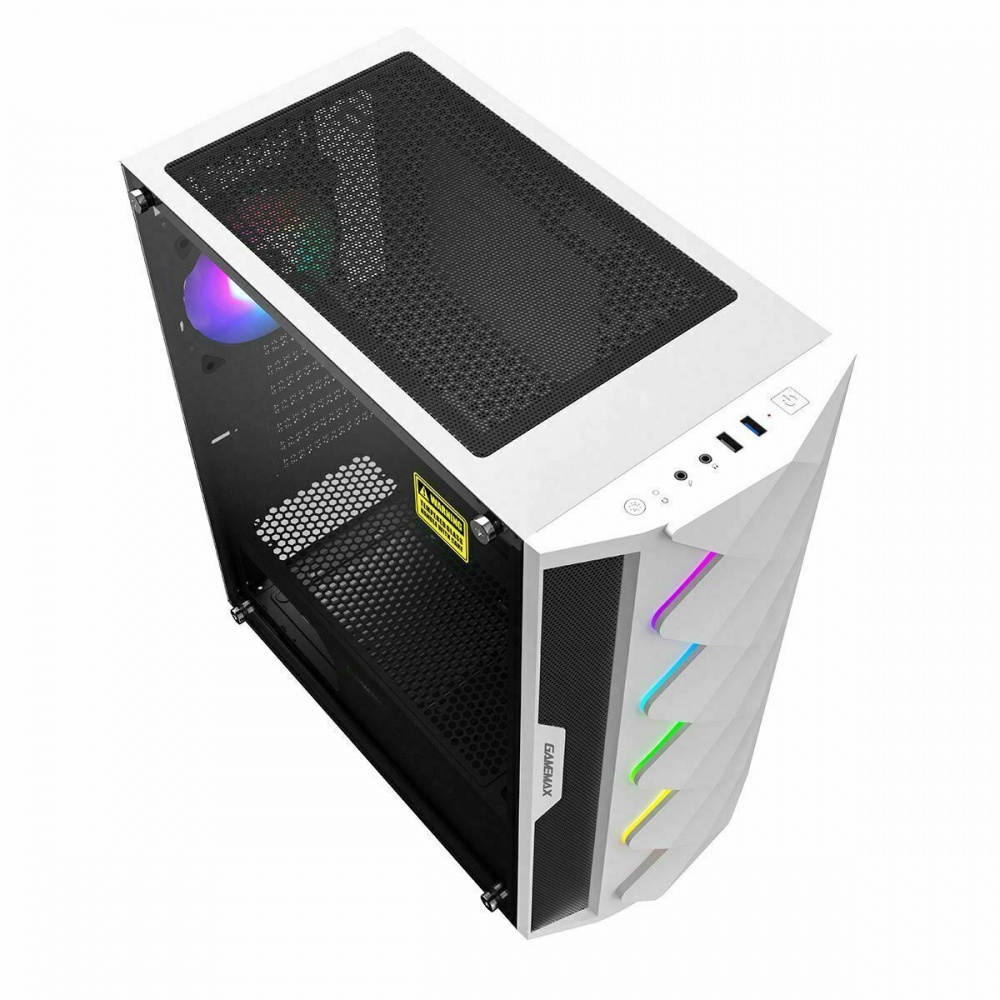

- IO Ports: 1 x USB 3.0
- 1 x USB 2.0
- 1 x HD Audio
- 1 x Microphone
- GPU Max Length: 340mm
- CPU Cooler Maximum Height: 165mm
- Front Bezel Colour: White
- Body Colour: White
- System Cabinet Features:
- PSU Included: No
