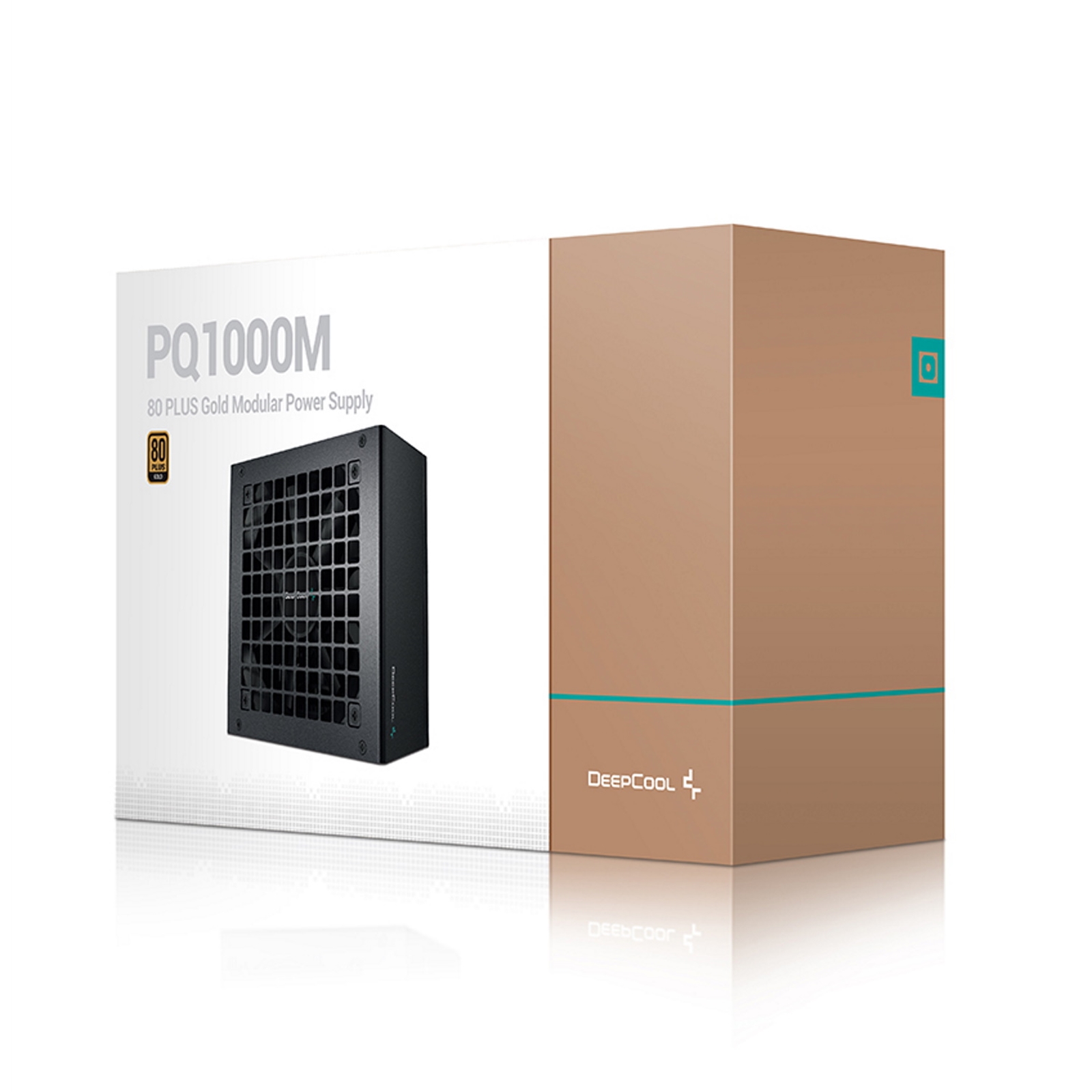

PQ1000M80 PLUS Gold Modular Power Supply
Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
A NEW GENERATIONIn our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
GO FOR GOLDCertified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The PQ-M Series achieves 90% efficiency at 50% system loads.
BUILT SOLIDCarefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.
- Dual EPS12V & Triple PCIe
- All 105°C Japanese Capacitors
SILENCE IS GOLDENA fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.
- Optimized thermal performance.
- Reduced noise levels overall
- Longer lasting lifespan
BEST OF THE BESTFluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
TypeATX12V V2.4
Product Dimensions ( W x L x H )150 x 140 x 86 mm
80 PLUS CertificationsGOLD
Fan Size120mm
Fan BearingFDB
TopologyActive PFC + Full Bridge SRC LLC + DC to DC
CapacitorsFull Japan Electrolytic Capacitors
Power Good Signal100-500ms
Hold Up Time=16ms (90% load)
Efficiency=90% Under Typical Load (50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP
Operation Temperature0 - 40 °C
RegulatoryCCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp RegulationErP 2013
MTBF100,000 Hours
Connections1 x Main Power Connector 24-Pin (20+4) (x1)
2 x EPS 12V Connector 8-Pin (4+4) (x2)
3 x PCIE 6+2 Pin (x1)
2 x SATA (x4)
1 x SATA (x2) & 4-Pin Peripheral (x2)
1 x 4-Pin Peripheral (x3)
Master Carton Quantity5
