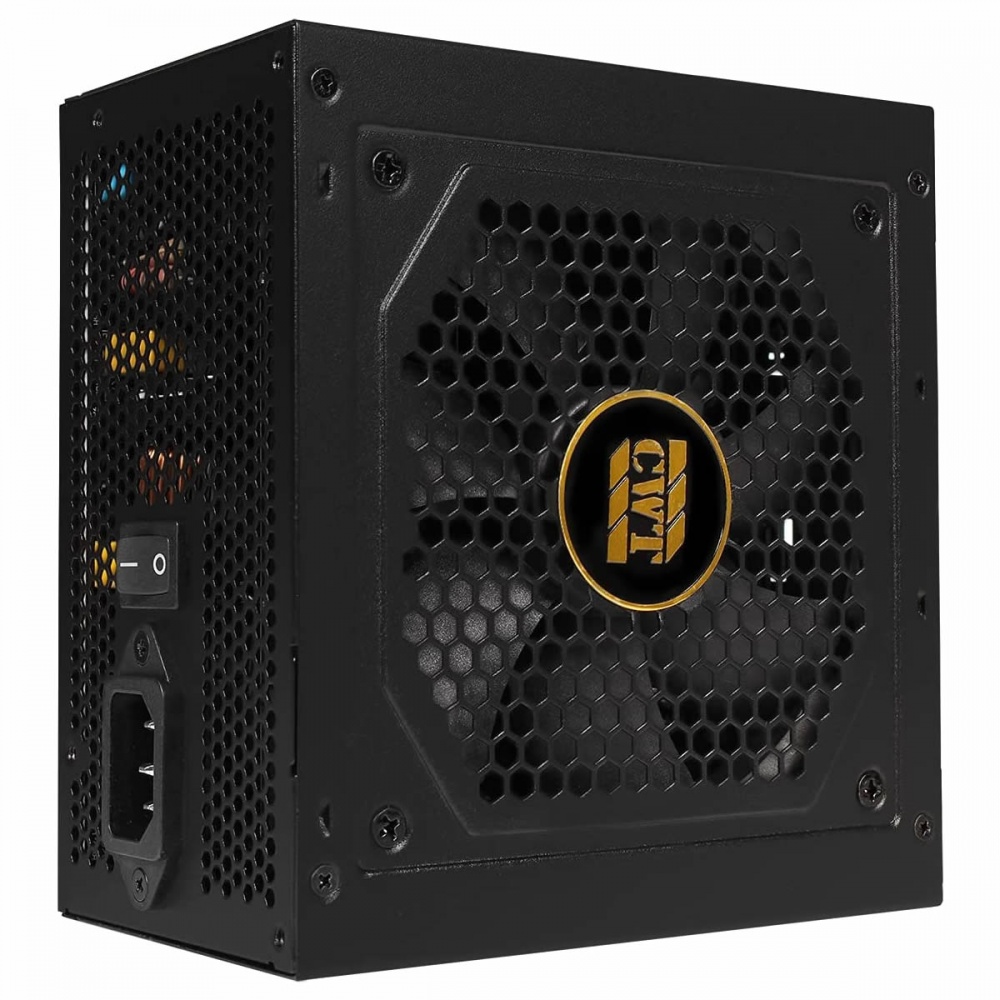

The Channel Well Technology GPX-850w power supplies are the No1 choice when it comes to fully modular power supplies delivering consistent 80 plus Gold efficient power to your PC.
Built using the highest quality components offering top reliability, low noise, and a high efficiency operation. With a power configuration of 850W and an 80 Plus Gold Certificate, at 100% load with 87% efficiency and at 50% load with 90% efficiency the GPX power supply includes plenty of high-class features and is premium and dependable enough to power your high-performance PC for years to come.
Key Features - Modular Cable Configuration - A Modular cable management design lets you use only the cables you need. You get to save space and create a cleaner-looking build and improve airflow.
- 80 Plus Gold Certification - 80 Plus Gold certified with 90% efficiency, high efficiency operation lowering energy consumption, noise, temperatures and less energy gets wasted during power conversion, the lower the operating costs will be for the user.
- 105°C-Rated Capacitors - Using industrial-grade electrolytic capacitors, GPX 850w power supplies offer the fixed power and long-term reliability.

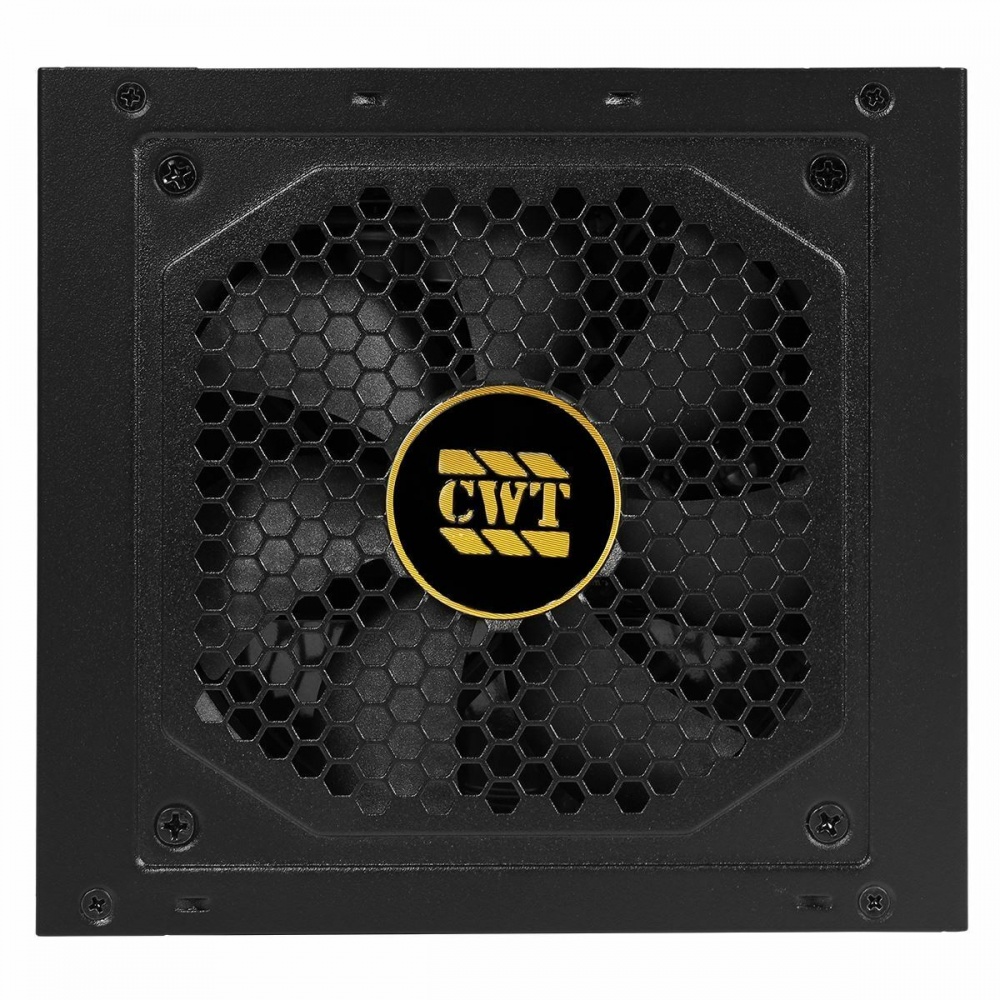

- Silent Operation - A 120mm Black rifle bearing fan with a zero RPM fan mode option ensuring it is kept down to a minimum at full loads but the fan doesn't spin until you need it, for near-silent operation at low and medium loads.
- All Black Look - Black is the colour with black flat cables, black connectors and an all black finish give your gaming PC a clean professional high-tec look.
- Flat Black Cables - With flat black cables, PC builders can easily manage space creating a nice clean build with minimal fuss.
- Warranty - The CWT GPX 850W PSU comes with 12 Months Warranty.

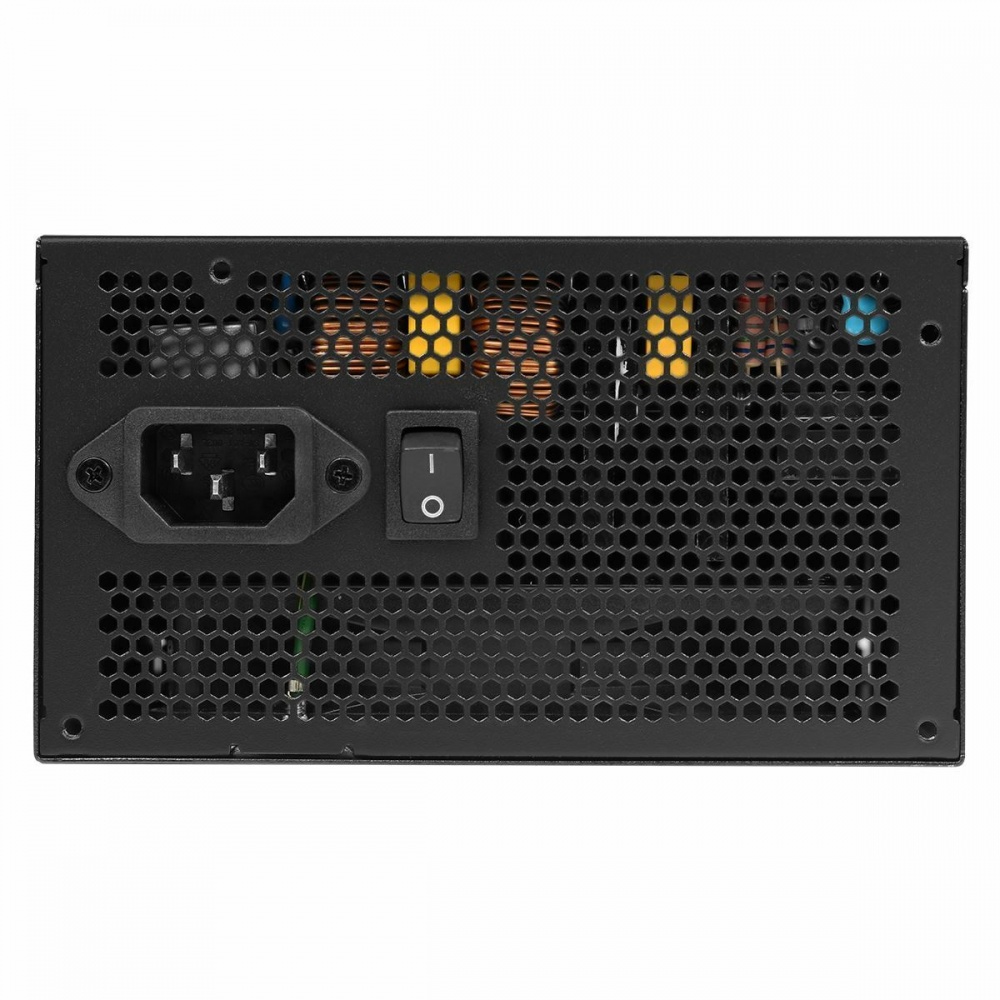

PSU SpecificationsAC INPUT: 100-240 VAC 12A 47-63HZ
DC Output
+3.3V +5V +12V1 -12V +5VSB
20A 20A 70.5A 0.3A 2.5A
Max 850W

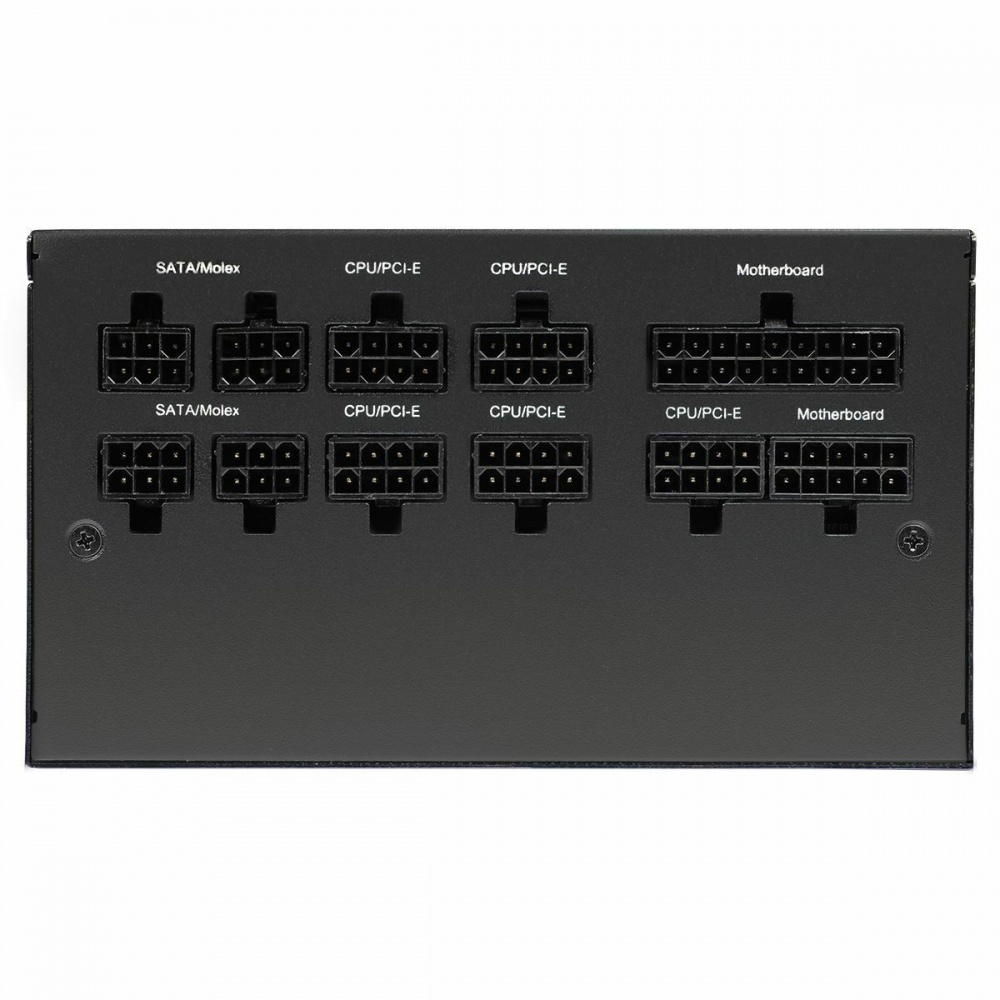

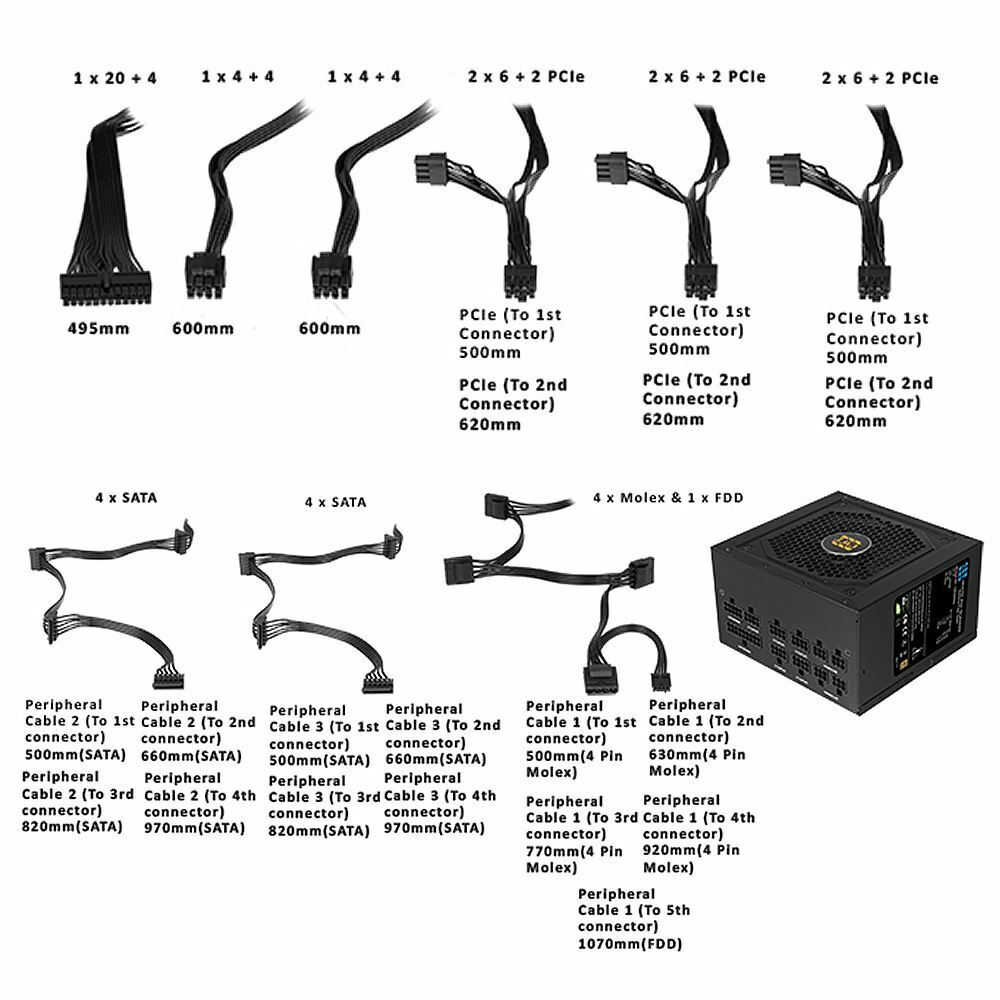

Connectors - 20+4 Pin Main Connectors: 1 (Modular)
- 4+4 Pin 12V Connectors: 2 (Modular)
- SATA Connectors: 8 (Modular)
- 4-Pin Molex Connectors: 4 (Modular)
- 6+2 Pin PCI-e Connectors: 6 (Modular)
- Floppy Drive Connectors: 1 (Modular)
Detailed Specifications - Dimensions: 150mm x 85mm x 140mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 12A
- Input Frequency Range: 47-63HZ
- PFC: Active PFC
- Power Good Signal: 310ms
- Hold Up Time: 14ms (minimum) at 80% of full load at 230Vac input
- Efficiency: 90%
- MTBF: 100,000 Hours
- Protection: OCP / OPP / SCP / OTP / OVP
- Power: 850W
- Operation Temperature: 0-40°C
- Safety: CB, CE, ErP, ROHs & TUV
- Cooling: 120mm Black Fan
- Noise: 38.8dBA
- 80 Plus Certified: Yes - 80 Plus Gold
