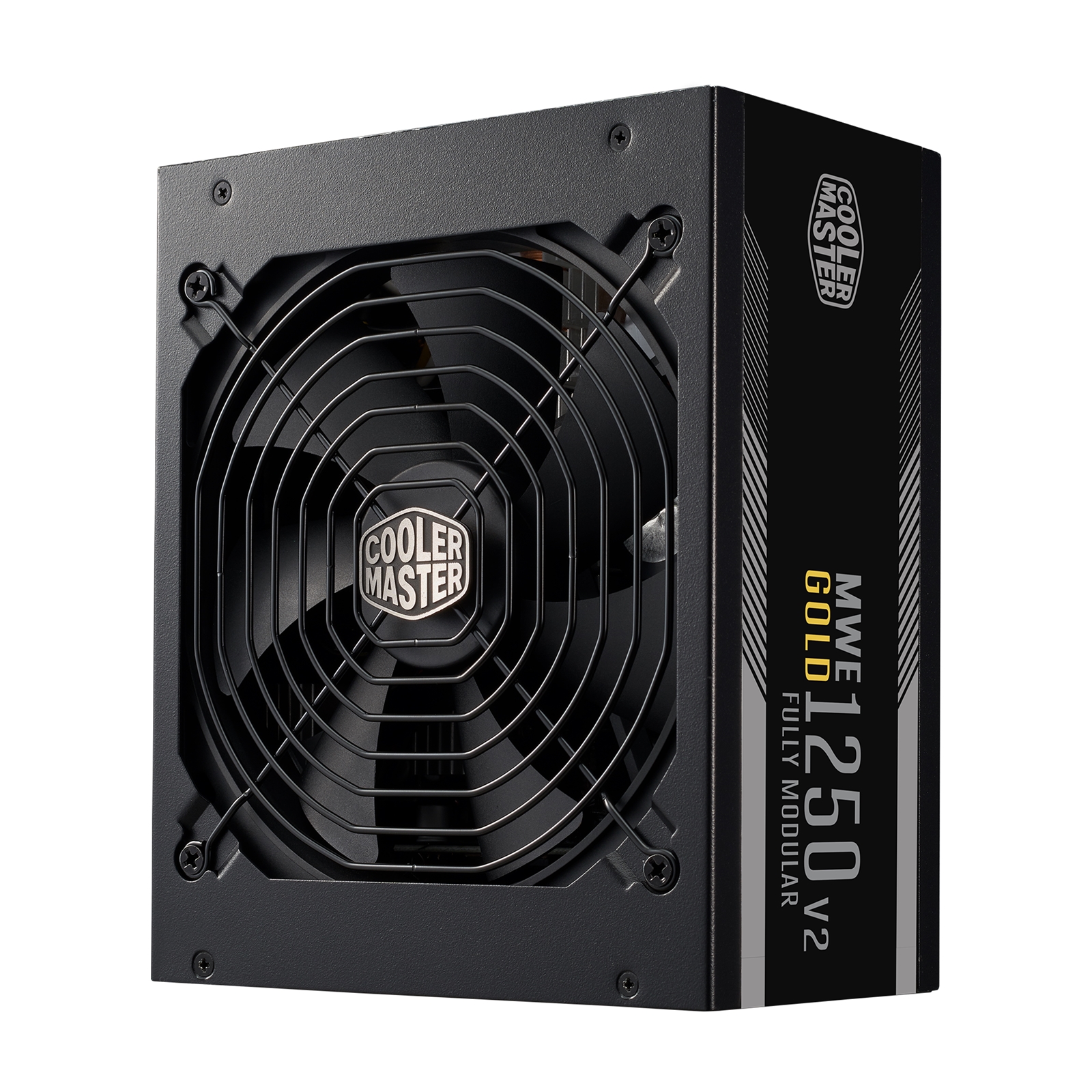

COOLER MASTER MWE Gold 1250 V2 ATX 3.0 1250W PSU, 140mm Silent Fan with Smart Thermal Controlling Feature, 80 PLUS Gold, Fully Modular, UK Plug, Flat Black Cables, ATX 3.0 Ready with PCI-E 5.0 12VHPWR Connector

MWE GOLD 1250 - V2 ATX 3.0
ATX 3.0 FULLY MODULAR 80 PLUS GOLD CERTIFIED ATX POWER SUPPLY UNIT
- 80 PLUS Gold Efficiency
- 100% Japanese Capacitor
- 140mm Silent Fan
- High Temperature Resilience
- Fully Modular Cabling
- 10 Year Warranty
- PCI-E 5.0 12VHPWR Connector

100% ATX 3.0 COMPATIBLE
Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS GOLD CERTIFIED
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

QUIET COOLING
The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise.

INDUSTRIAL-GRADE TEMPERATURE RESILIENCE
The MWE Gold 1050/1250 - V2 ATX3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

FULLY MODULAR CABLING
The fully modular version of the MWE Gold 1050/1250 - V2 ATX3.0 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

Model
MPE-C501-AFCAG-3UK

Series
MWE Gold Series

Modular
Fully Modular

ATX Version
ATX Rev. 3.0

PFC
Active PFC

Wattage
1250W

Input Voltage
100-240V

Input Current
15-7A

Input Frequency
50-60Hz

Fan Size
140mm

Fan Bearing
FDB

Efficiency
=90% @ Typical Load

80 PLUS Rating
80 PLUS Gold

ErP 2014 Lot 3
Yes

Operating Temperature
0-50°C

Power Good Signal
100 - 150 ms

Hold Up Time
=16ms at 100% Load

MTBF
>100,000 Hours

Protections
OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection

Regulatory
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

Connections
1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
12 x SATA
4 x Peripheral 4 Pin
3 x PCI-e 6+2 Pin
1 x 12VHPWR

Dimensions ( L x W x H )
180 x 150 x 86 mm
