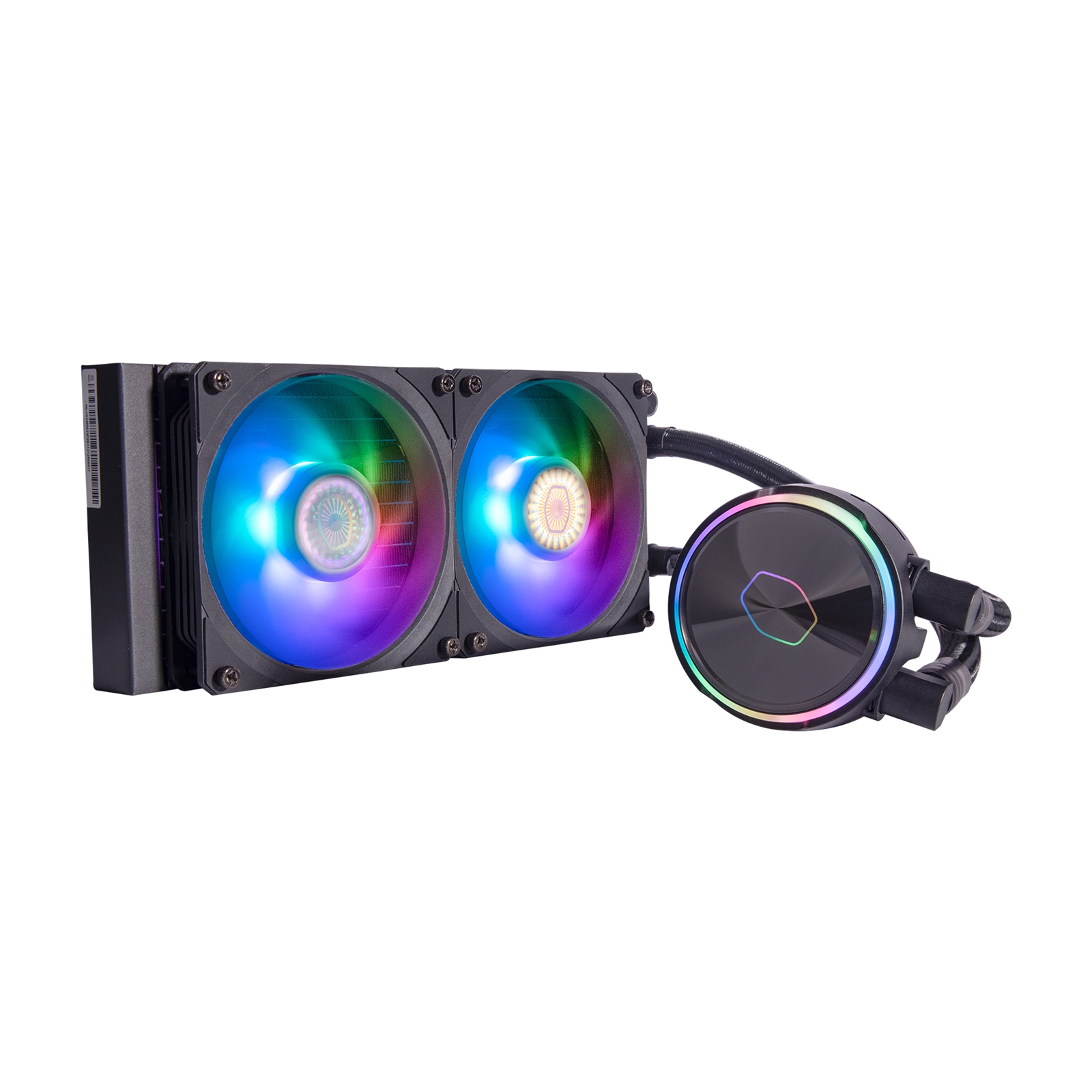

COOLER MASTER MasterLiquid Pro PL240 Flux AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2300RPM Cooling Fans, Addressable Gen 2 RGB LED Lighting with Dual Loop ARGB Pump & Wired ARGB Controller, Low Profile Radiator

MASTERLIQUID PL240 FLUX
- Premium Dual Chamber Pump
- Fine Tuned Performance Ratio
- Superior Heat Exchange
- Low Profile Radiator
- Redesigned Flux Series Fan
- Dual Loop ARGB Pump

COOLING UNCOMPROMISED
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

PREMIUM DUAL CHAMBER PUMP
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.

FINE TUNED PERFORMANCE RATIO
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.

ULTIMATE HEAT EXCHANGE
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

SLIM & SLEEK RADIATOR
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

REDESIGNED FLUX SERIES FAN
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.
- Noise Level 32 dba (Max)
- Air Flow 72.37 CFM
- Air Pressure 2.96 mmH2O

DUAL LOOP ARGB PUMP
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.

Model Number
MLY-D24M-A23PZ-R1

Exterior Colour
Black

Socket Compatibility
Intel: LGA1700, LGA1200, LGA2066, LGA2011-V3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156
AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4

Radiator Specifications
Radiator Size: 240mm
Radiator Material: Aluminum
Radiator Dimensions: 277 X 119.6 X 27.2 mm

Pump Specifications
Pump Dimensions: 89 X 75 X 40 mm
Pump MTTF: >210,000 Hours
Pump Noise Level: 15 DBA (Max)
Pump Connector: 4-Pin (PWM)
Pump Rated Voltage: 12 VDC
Pump Power Consumption: 6W

Fan Specifications
Fan Dimensions ( L x W x H ): 120 X 120 X 25 mm
Fan Quantity: 2 Pcs
Fan LED Type: Addressable Gen 2 RGB
Fan Speed: 0-2300 RPM ± 10%
Fan Airflow: 72.37 CFM (Max)
Fan Noise Level: 32 DBA
Fan Air Pressure: 2.96 mmH2O (Max)
Fan Bearing Type: Loop Dynamics Bearing
Fan Life Expectancy: >160,000 Hours
Fan Power Connector: 4-Pin (PWM)
Fan Rated Voltage: 12VDC
Fan Rated Current: 0.15A
Fan Safety Current: 0.3A

RAM Clearance
N/A

Series
MasterLiquid Pro
