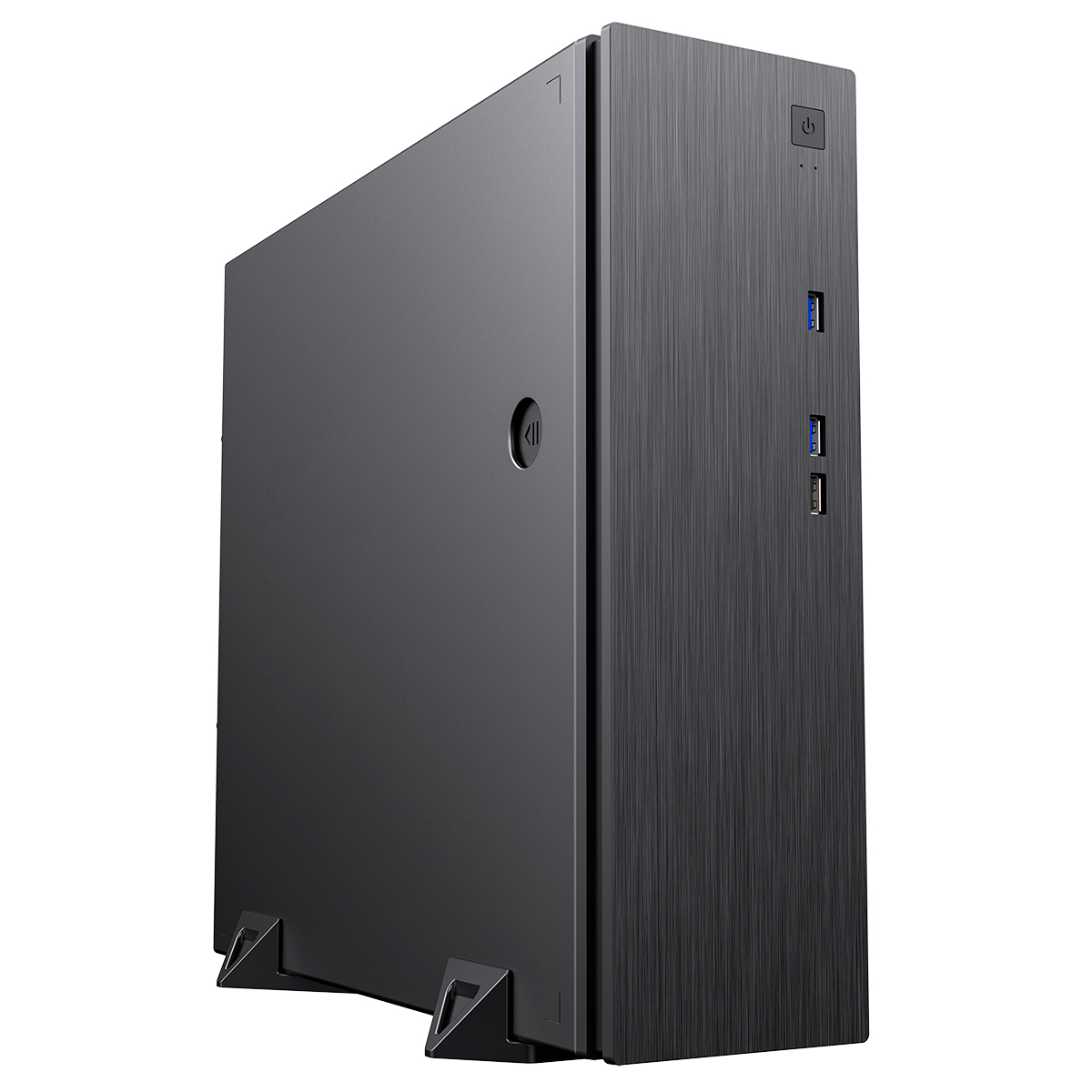

CIT S506 Micro ATX Desktop Case 1 x USB 2.0 2 x USB 3.0

CIT S506 Micro ATX Desktop Case 1 x USB 2.0 2 x USB 3.0
Our Price:  £39.95
(Inc. 20% VAT)



In stock



The CIT S506 slim desktop case is notably strong for its modest size,creating the perfect case for System Integrators. The CIT S506 featuresa full tool-less design, with 2 x USB 3.0 and 1 x USB 2.0 and a quickrelease HDD housing system for fast installation with minimal effort.The included base allows for vertical installation of the S506, the CITS506 supports Micro ATX or Mini ATX form factor motherboards and withits low profile body and sleek styling, the S506 blends seamlessly intoany environment as a silent PC, versatile home theater PC or a powerfulworkstation.

CiT S506 Compatible With TFX PSUs (not included)

ClickHere For Compatible PSUs

Key Features
  • Full tool-less designed chassis
  • Ultra thin desktop micro ATX case, supports various microM/B
  • Put both vertical or horizontal
  • Quick release side panel
  • Pad lock, Kensington lock, Alarm Switch optional
  • Clean front panel without any ODD bays.

  • Chassis Dimensions (Excluding Fascia / Panels): (W) 99 x(H) 339 x (D) 364mm
  • Max. PSU length: 190mm
  • Front Fan Powered Via: 3 Pin

Case Specifications
  • Form Factor: Desktop, Micro ATX
  • Motherboard Support: Micro ATX, Mini ITX
  • PSU Support: Flex
  • PSU Location: Top
  • Gaming Case: No
  • Water Cooling: Not Water Cooling Ready
  • Body Material: 0.6mm SGCC
  • Front Bezel Material: Plastic
  • Side Panel: Vented
  • Internal Cable Management Depth: 21mm
  • External Bays:
  • Internal Bays: 1 x 3.5 Internal
  • 1 x 2.5 Internal
  • Drive Bay Notes:
  • Expansion Slots: 4 x Half-Height
  • Cooling Front: Space for 1 x 80mm fan (inc.)
  • Cooling Top: None
  • Cooling Rear: None
  • Cooling Side: None
  • Cooling Bottom: None
  • IO Ports: 2 x USB 3.0
  • 1 x USB 2.0
  • GPU Max Length: 220mm
  • CPU Cooler Maximum Height: 81mm
  • Front Bezel Colour: Black
  • Body Colour: Black
  • System Cabinet Features:
  • PSU Included: No

Model:  1005859
Bar Code:  5055492408426
Part Number:  CIT-S506
Brand:  CIT
Form Factor:  Slim
Colour:  Black
LED Colour:  None
Max. Motherboard Size:  mATX
Supported PSU Size:  TFX
Build-in Card Reader:  None
Build-in PSU:  None
