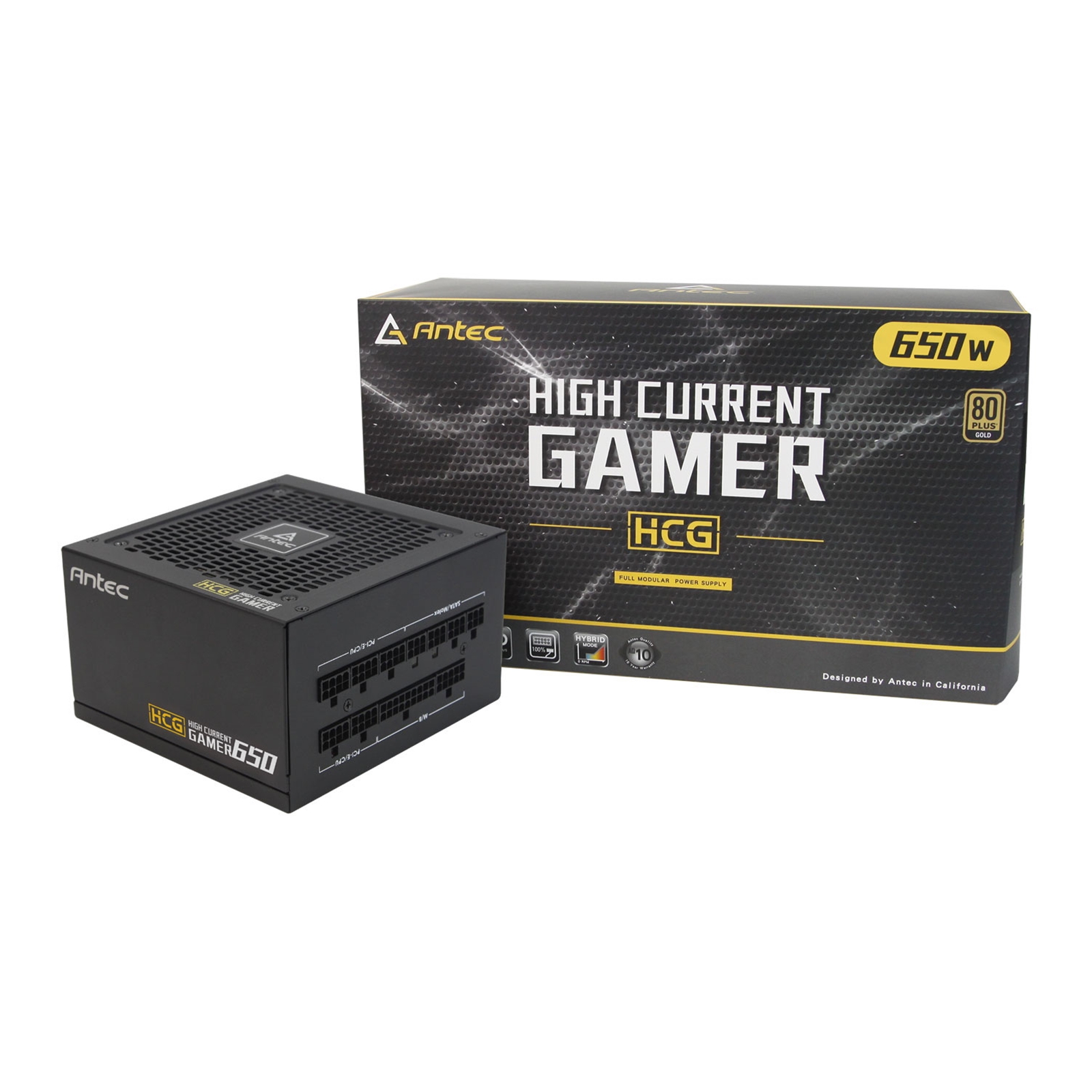

ANTEC HCG Gold 650W PSU, 120mm FDB Whisper-Quiet Fan, 80 PLUS Gold, Fully Modular, UK Plug, 100% Japanese Heavy-Duty Capacitors, Continuous Power with Stable Output

High Current Gamer Gold Series
650W

The latest generation of High Current Gamer Gold power supplies offer unparalleled stability and 80 PLUS Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package.

The CircuitShield suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.
- 80 PLUS Gold Certified
- 92% Max Energy Efficiency
- Continious Power Stable Output
- 100% Japanese Heavy-Duty Caps
- Fully Modular
- DC to DC Converter Design
- 140mm Compact Size

High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.

PhaseWave Design - synchronous rectification based on a DC-DC topology.

A server-class full-bridge LLC design.

120mm FDB FAN
The whisper-quiet, fluid-dynamic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.

Features
- Guaranteed 650W of Continuous Power from Antec
- 100% Modular: Improves airflow and reduces clutter
- 80 PLUS GOLD certified: Up to 92% efficient, to reduce your electricity bill
- PhaseWave Design: A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 120mm FDB Silence: Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V: Output for maximum CPU & GPU support
- CircuitShield: Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket: For possible future MBU connectors
- ATX12V 2.4: Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Compact size 140mm depth power supply is the best choice for compact ATX chassis

Model
HCG650 Gold

Type
ATX 12V 2.4

Modular
Fully

Input Voltage
100-240 VAC ±10%

Input Current
9A-4.5A

Input Frequency Range
50Hz-60Hz

PFC
Active PFC (>0.9 typical)

Power Good Signal
100-500ms

Efficiency
92% Typically

Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Wattage
650W

Operation Temperature
0~40°C

Regulatory
cTUVus / TUV / CB [IEC62368 Compliant] / RCM / CE / EAC / CCC / BSMI / FCC / KR

Cooling
120mm FDB Fan

Certifications
80 PLUS Gold

Connections
1 x 24-pin MB
2 x 8 (4+4) pin ATX12V / EPS12V
4 x 8 (6+2) pin PCI-E
8 x SATA
3 x Molex
1 x FDD

Dimension ( W x L x H )
140 x 150 x 86 mm

Weight
Net: 2.04Kg
Gross: 3.36Kg
