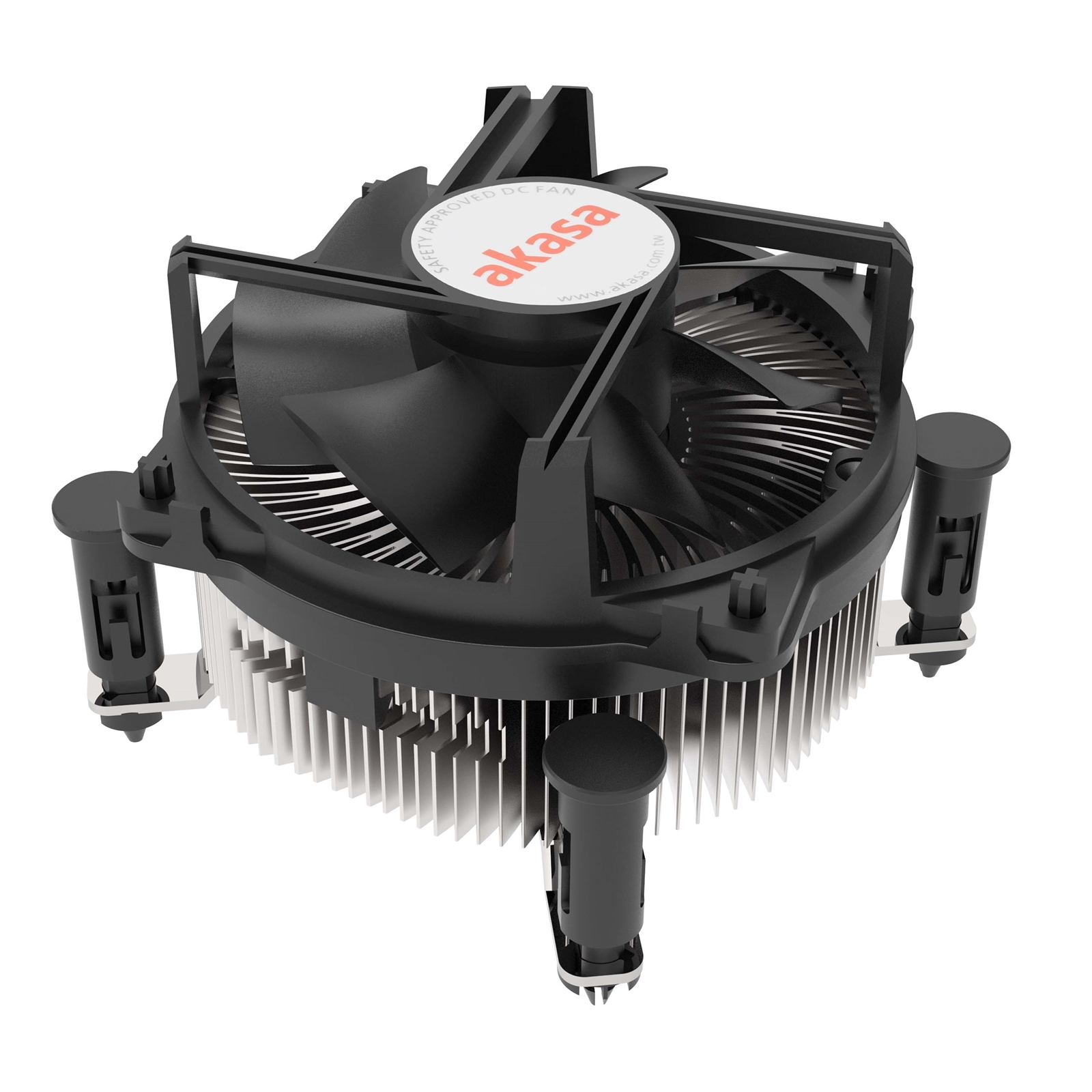

Akasa AK-CC6606BP01 Intel LGA 1700 Socket 90mm PWM 3400RPM Black Fan CPU Cooler

Akasa AK-CC6606BP01 Intel LGA 1700 Socket 90mm PWM 3400RPM Black Fan CPU Cooler
Our Price:  £23.48
(Inc. 20% VAT)



No stock

Lo-Noise and Efficient Cooling
Combines lo-noise, efficient cooling with great value. Designed to work with CPUs up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.

Intelligent and Optimised Design
Hi-performance and engineered aluminium heatsink with bi-ped fins to double the dissipation area, coupled with 90mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

New and Easy Mounting Design
New push-pin design to cater for the Intel LGA1700.

Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.
- Height of the cooler is only 63.2mm
- Large full-height copper core for rapid heat dissipation
- Compatible with Intel LGA 1700
- Intelligent PWM and silent fan
- 90mm lo-noise and durable PWM fan

Key Features
- Tool Free Push-Pin
- Aluminium Heatsink
- Copper Core
- 43.6mm Core Diameter
- 63.2mm Height
- Compact Design
- 125W TDP

Socket Compatibility
Intel LGA 1700

Cooler Dimension
94.8 x 94.8 X 63.2mm

Heatsink Material
Aluminium with Copper Core

Thermal Design Point (TDP) Support


Push Pins

Fan Dimension
90 x 25mm

Fan Speed
500-3400 RPM (PWM controlled)

Max Airflow
40.90 CFM

Max Air Pressure
3.81 mm H2O

Max Noise Level
36 dB(A)

Current Rating

Voltage Rating
12V DC

Bearing Type
Twin Ball Bearing

Fan Life Expectancy
80,000 hours / 25C

Fan Connector
4-Pin PWM

Product Code

Model:  FAAKA-AKCC6606BP
Bar Code:  4710679551746
Part Number:  AK-CC6606BP01
Brand:  AKASA
CPU Supported:  Intel
LED Colour:  None
