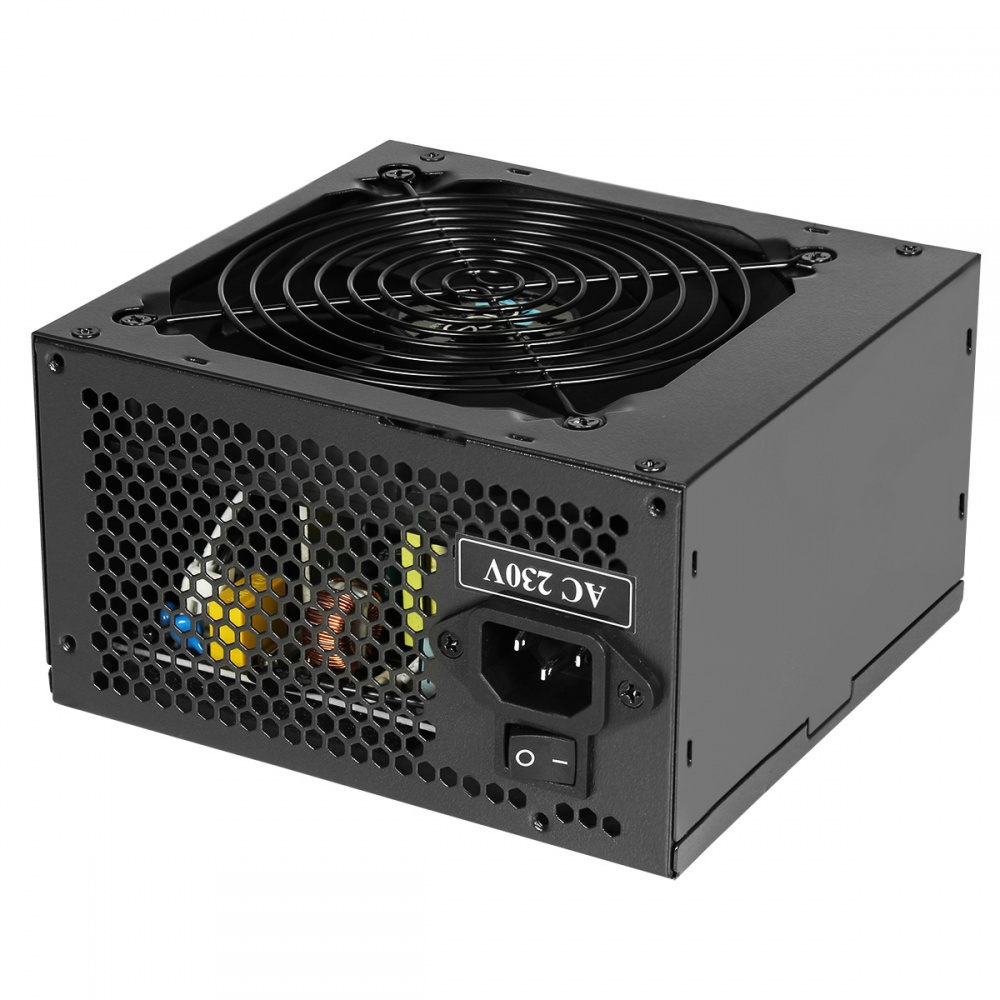

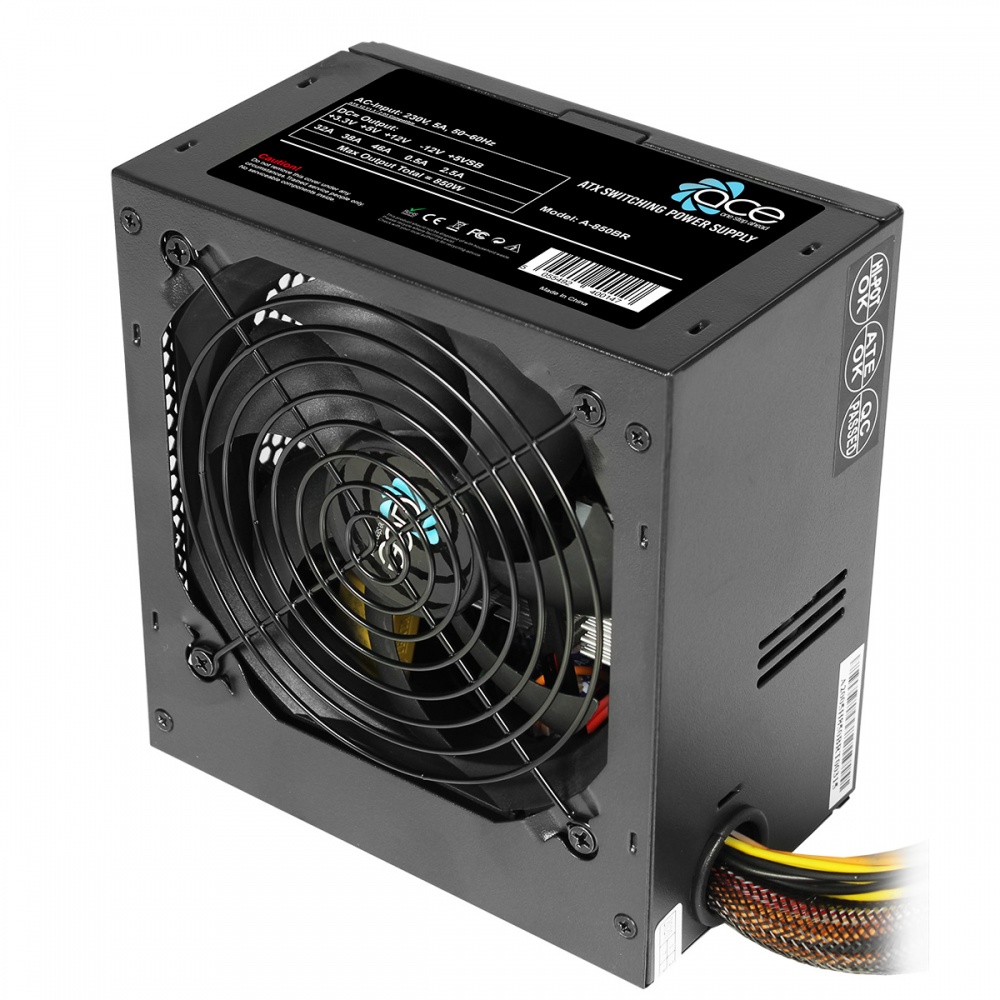

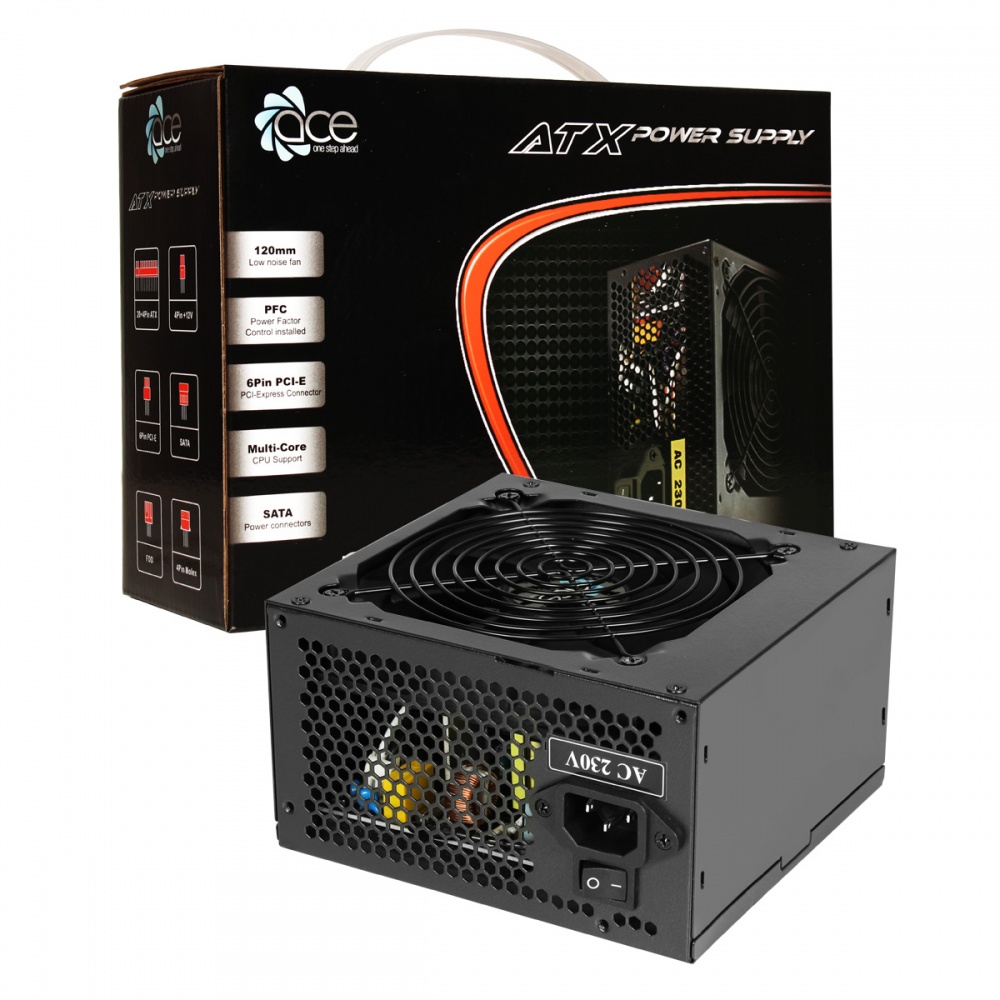

ACE A-850BR 850W Black Power Supply ATX PSU

ACE A-850BR 850W Black Power Supply ATX PSU
  Zoom
ACE A-850BR 850W Black Power Supply ATX PSUACE A-850BR 850W Black Power Supply ATX PSUACE A-850BR 850W Black Power Supply ATX PSU
Our Price:  £32.95
(Inc. 20% VAT)

Availability



In stock

+


Ace PSUs are certified RoHS compliant and with power factorcontrol-giving you a safe and stable foundation to build your systemfrom. Ace PSUs come with a superb 12cm fan that offers a quietoperation but with excellent cooling meaning you are working in a morepeaceful environment and the right cooling ensures maximum lifespan ofyour products. Supplied with all the appropriate cables Ace providesmaximum compatibility with popular CPU's and mainboards.

Key Features
  • Power Factor Control (PFC)
  • Cooling: 12cm Black Fan
  • New Version 1.3 / 2.03
  • Silent with better ventilation
  • ATX 12V compliant for most CPUs and mainboards


PSU Specifications

AC INPUT: 230VAC 5A 50-60Hz
DC Output:
 +3.3V    +5V   +12V1    -12V   +5VSB
32A       38A      46A      0.5A    2.5A
Max 850W


Connectors
  •  20+4 Pin Main Connectors: 1
  •  4+4 Pin 12V Connectors: 1
  •  SATA Connectors: 4
  •  4-Pin Molex Connectors: 3
  •  6+2 Pin PCI-e Connectors: 2
  •  Floppy Drive Connectors: 1


Detailed Specifications
  • Dimensions: 150mm x 85mm x 140mm (W x H x D)
  • Input Voltage: 230 VAC
  • Input Current: 5A
  • Input Frequency Range: 50-60Hz
  • PFC: Yes - Power Factor Control
  • Power Good Signal: 150-450 ms
  • Hold Up Time: 1ms-40ms
  • Efficiency: 75%
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP/OPP
  • Power: 850W
  • Operation Temperature: 45C
  • Safety: CE/ROHS
  • Cooling: 12cm Black Fan
  • Noise: < 17 dBA

Model:  1004524
Bar Code:  5055492400147
Part Number:  A-850BR
Brand:  ACE
80 Plus Rating  None
Wattage  850 W
PSU Form Factor  ATX
Modular Cable  None
Colour  Black
