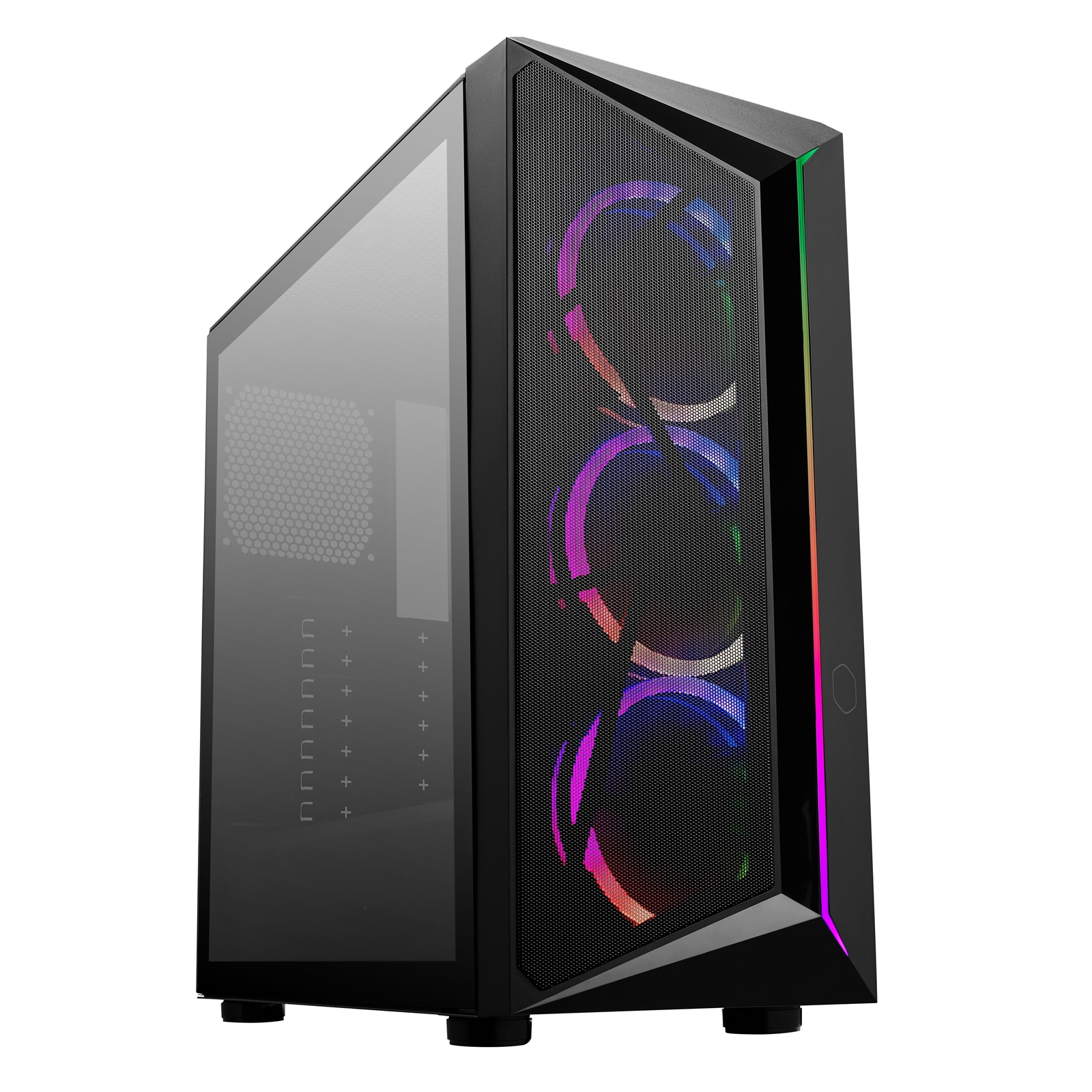

COOLER MASTER CMP 510 Case, Black, Mid Tower, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0, Tempered Glass Side Window Panel, Large Filtered Mesh Intake Front Panel, Addressable RGB Fans with ARGB Front Edge

CMP 510
THE SABER'S EDGE
- ARGB Strip
- Large Filtered Intakes
- Versatile Cooling Options
- Full Black Coating & PSU Cover
- Breathable Power Supply Shroud
- Room For Upgrades

THE SABER'S EDGE
With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential.

Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards.

ARGB STRIP
A glowing ARGB edge is cut into the clean geometry of the front panel design.

VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

LARGE FILTERED INTAKES
The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.

FULL BLACK COATING & PSU COVER
Let your system stand out with an all-black background and a PSU cover to hide cables.

BREATHABLE POWER SUPPLY SHROUD
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.

ROOM FOR UPGRADES
Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.

Model Number
CP510-KGNN-S00

Form Factor
Mid Tower

Colour
Black

Materials
Steel
Plastic
Tempered Glass

Motherboard Support
ATX
Micro ATX
Mini ITX

Expansion
Slots: 7

Drive Bays
2.5" / 3.5" (Combo): 2
2.5": 2

I/O Panel
1 x USB 3.2 Gen 1 Type-A
1 x USB 2.0
1 x 3.5mm Headset Jack (Audio+Mic)
1 x ARGB Controller

Fan Support
Top: 2 x 120mm / 2x 140mm
Front: 3 x 120mm / 2 x 140mm (3 x 120mm ARGB fans pre-installed)
Rear: 1 x 120mm

Radiator Support
Top: 120 / 240mm (Memory bar height limit 35mm, first assemble the memory and then assemble the radiator)
Front: 120mm / 140mm / 240mm / 280mm
Rear: 120mm

Clearance
CPU Cooler: 161mm
PSU: 160mm
GFX: 350mm (w/o front fans & radiator)
Cable Routing: 18.5mm

Dust Filters
Top
Bottom

Power Supply Support
Bottom Mount
ATX

Dimensions ( L x W x H )
445 x 204 x 463mm (incl. Protrusions)
436 x 204 x 448mm (excl. Protrusions)

Volume
39.85L (exlc. Protrusions)
