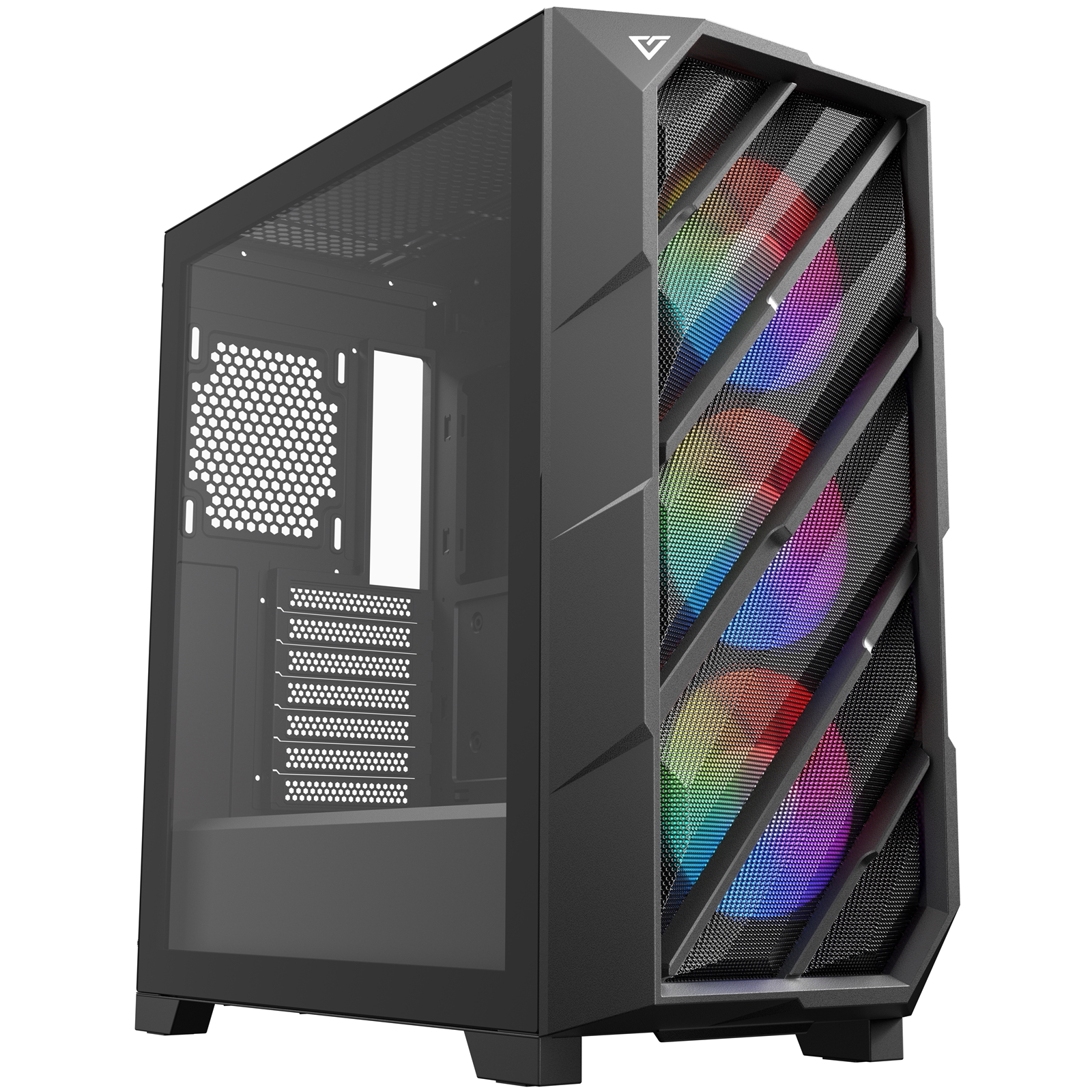

Mid-Tower E-ATX Gaming Case
Outstanding Compatible PerformanceUNLIMITED CONFIGURATION OPTIONS
Maximum Expansion Potential
The DP503 gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.MASSIVE MESH
HIGH-AIRFLOW Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.
- Massive Mesh Front Panel with Slanted Bar Design.
- The Magnetic Dust Filter on the Top.
- Pull-Out Dust Filter at the Bottom.Three addressable RGB fans Included
Pre-installed at the front for efficient airflow and customizable RGB lighting.BUILT-IN DEVICES
ARGB & PWM CONTROL HUB
The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colors.
- 6 x 3-pin connectors for ARGB signal
- 6 x 3-pin PWM fan connectorsCABLE MANAGEMENT
Building a Clean PC is within Easy Reach
Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.
- Cable channels with grove on top for stable routing
- Space for cable management: 23mm
- 8 x cable routing grommets included
- 3 x Antec logo cable tiesDRIVE BAYS COMPATIBILITY
Fits Up To 4 Drive Devices
- Snap-in 2.5" drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5" drive trayHIGH-SPEED TRANSFER
TYPE-C 3.2 GEN 2 READY
LED Control Button
2 x USB 3.0
1 x Type-C 3.2 Gen 2THOUGHTFUL DESIGN
- Captive thumb screws
- 7 x full profile & reusable expansion slots
- Removable GPU holder, able to be adjusted up, down, left and right
- Rear-mounted PSU installation
- 4mm seamless tempered glass side panel (the groves at the bottom can prevent the glass from shattering)COOLING COMPATIBILITY
9 fans simultaneously
- 3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.CASE COMPATIBILITY
- Motherboard support: E-ATX, ATX, Micro ATX, ITX
- CPU cooler max height: < 170mm
- GPU max length: < 375mm
- Power supply max length: < 205mm (with HDD) / < 410mm (without HDD)Form Factor
ITXFront Access & Controls
LED control button
2 x USB 3.0
1 x TYPE-C 3.2 Gen 2
4mm Tempered GlassExpansion
3.5" / 2.5": 2 / 2
2.5": 2Fan Support
Front: 3 x 120mm / 3 x 140mm / 2 x 185mm
Top: 3 x 120mm / 2 x 140mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mmIncluded Fans
Front: 3 x 120mm ARGB fansRadiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Max GPU Length: = 375mm
Max CPU Cooler Height: = 170mm
Max PSU Length: = 205mm (with HDD) / = 410mm (without HDD)
Cable Routing Space: = 23mmAccessories
Fan & LED Control Hub
Cable Routing Grommets (8 pcs)
Fixed Cable Ties (3 pcs)
Captive Thumb Screws (Side panels, GPU Holder, PSU Brace)Dust Filter
Top / BottomDimensions ( D x W x H )
483 x 220 x 492 mmWeight
